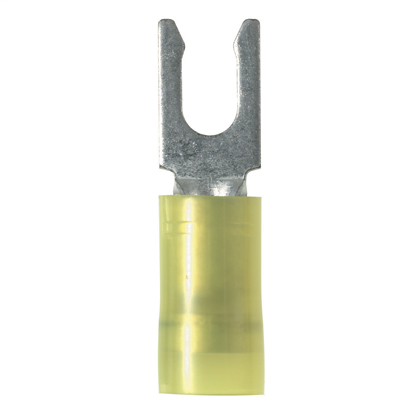

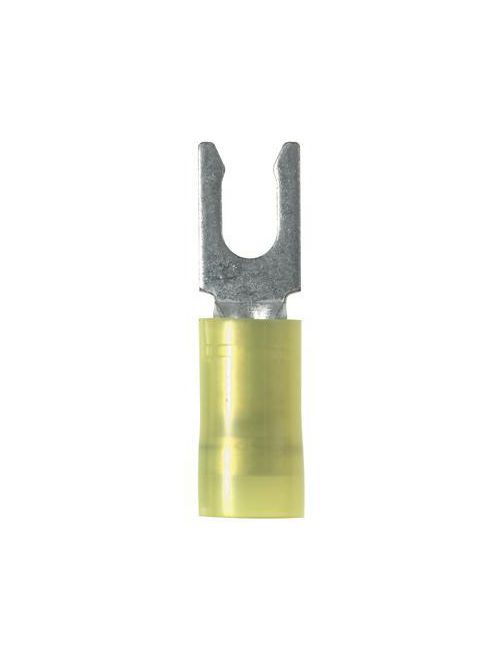

PAN PN10-8LF-D Fork,Locking,Nylon,1

Specifications

• Product Segment: IEI
• UNSPSC: 39121409
• Fork Type: Locking Fork
• Insulation Type: Nylon
• Insulation Material: Nylon
• Minimum Wire Size (AWG): #12
• Maximum Copper Conductor Size (AWG SOL): #10
• Maximum Copper Conductor Size (AWG): #10
• Maximum Wire Size (AWG): #10
• Maximum Copper Conductor Size (AWG STR): #10
• Minimum Copper Conductor Size (AWG): #12
• Minimum Copper Conductor Size (AWG STR): #12
• Minimum Copper Conductor Size (AWG SOL): #12
• Maximum Metric Conductor Size (mm²): 6
• Minimum Metric Conductor Size (mm²): 4
• Wire Strip Length (In.): 0.28
• Wire Strip Length (mm): 7.1
• Stud Size: #8
• Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Maximum Voltage (kV): 0.6
• Maximum Voltage (V): 600
• Finish/Coating: Tin-Plated
• Base Material: Copper
• Color Code: Yellow
• Barrel Type: Beveled
• Barrel Length (mm): 13.3
• Barrel Length (In.): 0.53
• Flammability Rating: UL 587-H
• Insulation Diameter (mm): 5.7
• Insulation Diameter (In.): 0.23
• Maximum Operating Temperature (°F): 221
• Maximum Operating Temperature (°C): 105
• Seam Type: Butted
• Maximum Wire Insulation Diameter (In.): 0.23
• Maximum Wire Insulation Diameter (mm): 5.7
• Minimum Wire Insulation Diameter (mm): 3
• Minimum Wire Insulation Diameter (In.): 0.12
• Stud Hole Size (In.): 4/25
• Stud Hole Size (mm): 4.2
• Overall Length (In.): 1.05
• Overall Length (mm): 26.7
• Overall Width (In.): 0.3
• Overall Width (mm): 7.6
• Tongue Length (In.): 0.53
• Tongue Length (mm): 13.3
• Tongue Thickness (mm): 1
• Tongue Thickness (In.): 0.04
• Tongue Width (In.): 0.3
• Tongue Width (mm): 7.6
• Sub Brand: Pan-Term
• Packaging Type: Box
• Product Type: Loose Piece Forks
• For Use With: CT-1550, CT-1551

Packaging Details

• UPC: 07498380083
• GTIN Package: 00074983800834
• Standard Package Volume Ft3: 0.0482
• Standard Package Weight Pounds: 2.4000
• Std Package Height In: 3.35
• Std Package Height MM: 85.09
• Std Package Length In: 7.1
• Std Package Length MM: 180.34
• Std Package Width In: 3.35
• Std Package Width MM: 85.09
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 500
• Standard Carton Volume Ft3: 0.0482
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 180.34
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983800834
• NLD HS Code: 8536901000000000000000
• USA HS Code: 8536904000000000000000
• USA HS Code 10digit: 8536904000
• ECCN Commodity Code: EAR99
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 500
