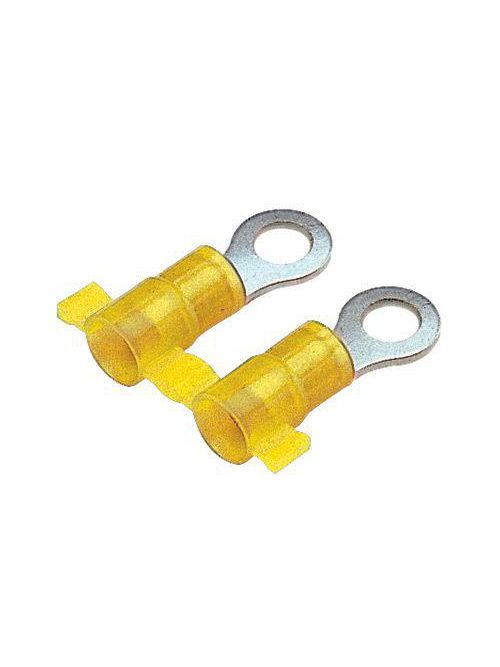

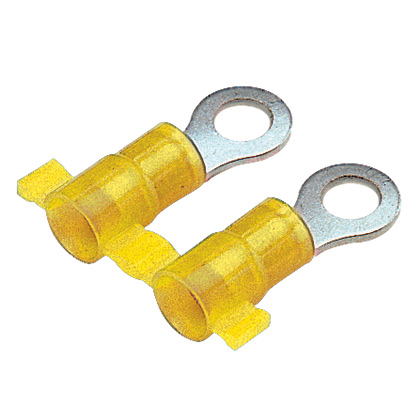

PAN PN10-8R-2K Ring,Nylon Insul,12-
$505.56/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 2000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PN10-8R-2K
North Coast Part # 828185

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Stud Hole Size (mm): 4.3
  • Stud Hole Size (In.): 1/6
  • Insulation Material: Nylon
  • Maximum Copper Conductor Size (AWG SOL): 10
  • Maximum Copper Conductor Size (AWG): 10
  • Maximum Copper Conductor Size (AWG STR): 10
  • Maximum Wire Size (AWG): 10
  • Minimum Wire Size (AWG): #14
  • Minimum Copper Conductor Size (AWG SOL): #14
  • Minimum Copper Conductor Size (AWG): #14
  • Minimum Copper Conductor Size (AWG STR): #14
  • Maximum Metric Conductor Size (mm²): 6
  • Minimum Metric Conductor Size (mm²): 4
  • Wire Strip Length (mm): 7.1
  • Wire Strip Length (In.): 0.28
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
  • Maximum Voltage (V): 600
  • Maximum Voltage (kV): 0.6
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Color Code: Yellow
  • Barrel Type: Non-Funnel Entry
  • Barrel Length (mm): 15.5
  • Barrel Length (In.): 0.61
  • Flammability Rating: UL 94 V-2/UL 94 HB, UL 486A/B
  • Insulation Diameter (mm): 5.8
  • Insulation Diameter (In.): 0.23
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Maximum Wire Insulation Diameter (mm): 5.8
  • Maximum Wire Insulation Diameter (In.): 0.23
  • Minimum Wire Insulation Diameter (In.): 0.23
  • Minimum Wire Insulation Diameter (mm): 5.8
  • Overall Length (mm): 30.7
  • Overall Length (In.): 1.21
  • Overall Width (mm): 9.7
  • Overall Width (In.): 0.38
  • Tongue Length (In.): 0.61
  • Tongue Length (mm): 15.5
  • Tongue Thickness (mm): 1
  • Tongue Thickness (In.): 0.04
  • Tongue Width (In.): 0.38
  • Tongue Width (mm): 9.7
  • Sub Brand: Reel Smart
  • Packaging Type: Reel
  • Product Type: Ring Terminal

Packaging Details

  • UPC: 07498380630
  • GTIN Package: 00074983806300
  • Standard Package Volume Ft3: 0.9593
  • Standard Package Weight Pounds: 13.3500
  • Std Package Height In: 2.374
  • Std Package Height MM: 60.2996
  • Std Package Length In: 26.122
  • Std Package Length MM: 663.4988
  • Std Package Width In: 25.374
  • Std Package Width MM: 644.4996
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 2000
  • Standard Carton Volume Ft3: 0.9593
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 663.4988
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983806300
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 2,000

Overview

UPC 07498380630
GTiN 00074983806300
Finish Tin-Plated
Width 0.38 in
Size M4
Color Yellow
Type Ring Terminal
Barrel Type Non-Funnel Entry
Material Copper
Country of Origin MX
Wire Size 10
Temperature Rating 221 F
Pkg Qty 2000
Family Brand Name Panduit
Carton Qty 0
TC Connection Standard
Max Operating Temperature 221 degrees F
Overall Length 1.21 in
Barrel Length 0.61 in
Color Coding Yellow
Enclosure Ring shape
Sub Brand Reel Smart
Voltage null
