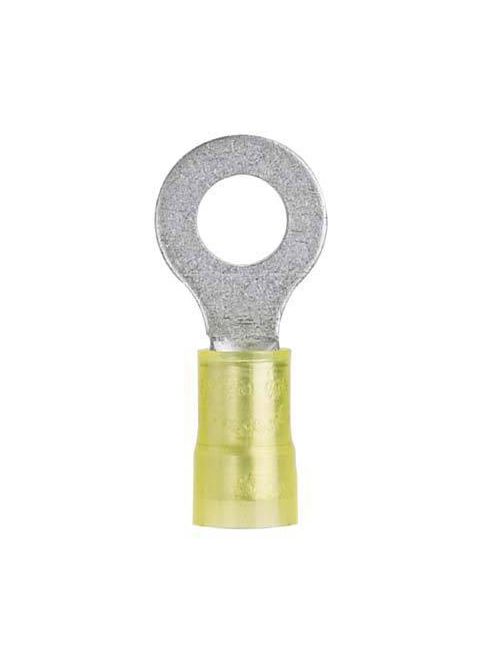

Panduit PN10-8R-L 12-10 AWG Nylon Insulated Ring Terminal

Specifications

• Product Segment: IEI
• Stud Size: #8
• Insulation Material: Nylon
• Minimum Wire Size (AWG): #12
• Maximum Copper Conductor Size (AWG SOL): #10
• Maximum Copper Conductor Size (AWG STR): #10
• Maximum Wire Size (AWG): #10
• Minimum Copper Conductor Size (AWG STR): #12
• Minimum Copper Conductor Size (AWG SOL): #12
• Maximum Metric Conductor Size (mm²): 6
• Minimum Metric Conductor Size (mm²): 4
• Wire Strip Length (In.): 9/32
• Wire Strip Length (mm): 7.1
• Standards Met: UL 486A/B, and CSA 22.2 No.65
• Base Material: Copper
• Maximum Voltage (V): 600
• Maximum Voltage (kV): 0.6
• Finish/Coating: Tin-Plated
• Color Code: Yellow
• Barrel Type: Grip Sleeve
• Flammability Rating: UL94-HB
• Maximum Operating Temperature (°C): 105
• Maximum Operating Temperature (°F): 221
• Maximum Wire Insulation Diameter (In.): 0.225
• Maximum Wire Insulation Diameter (mm): 5.72
• Sub Brand: Pan-Term®
• Overall Length (mm): 26.9
• Overall Length (In.): 1.06
• Overall Width (mm): 9.4
• Overall Width (In.): 0.37
• Tongue Thickness (In.): 0.04
• Tongue Thickness (mm): 1.02
• Tongue Width (In.): 0.37
• Tongue Width (mm): 9.4
• Packaging Type: Bottle
• Product Type: Loose Piece Ring Terminal
• For Use With: CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)

Packaging Details

• UPC: 07498380030
• GTIN Package: 00074983800308
• Standard Package Volume Ft3: 0.0063
• Standard Package Weight Pounds: 0.2900
• Std Package Height In: 1.75
• Std Package Height MM: 44.45
• Std Package Length In: 3.6
• Std Package Length MM: 91.44
• Std Package Width In: 1.8
• Std Package Width MM: 45.72
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 50
• GTIN Carton: 50074983800303
• Standard Carton Volume Ft3: 0.0063
• Standard Carton Weight Pounds: 2.9000
• Std Carton Height In: 3.6
• Std Carton Height MM: 91.44
• Std Carton Length In: 9.4
• Std Carton Length MM: 91.44
• Std Carton Width In: 3.95
• Std Carton Width MM: 100.33
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983800308
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 50
