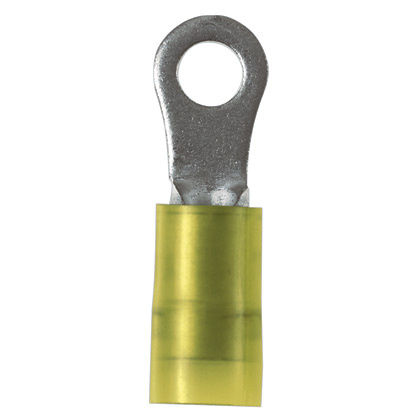

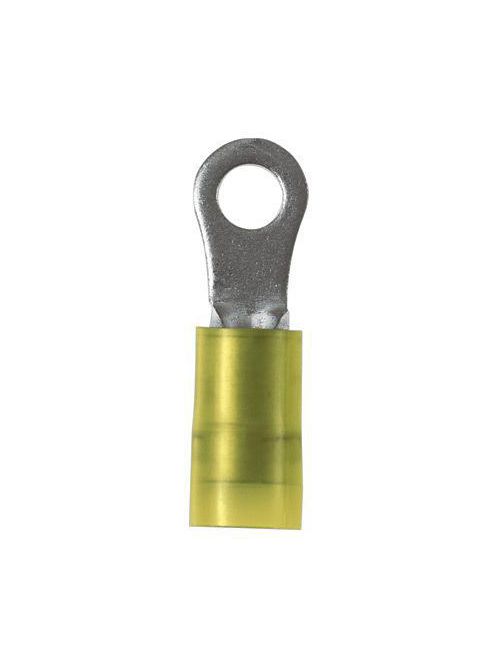

PAN PN12-56HDR-L Ring,HD,Nylon Ins,

Specifications

• UNSPSC: 39121409
• Product Segment: IEI
• Stud Hole Size (In.): 27/100
• Stud Hole Size (mm): 6.9
• Insulation Material: Nylon
• Maximum Wire Size (AWG): 12
• Minimum Wire Size (AWG): #16
• Maximum Copper Conductor Size (AWG STR): 12
• Maximum Copper Conductor Size (AWG): 12
• Maximum Copper Conductor Size (AWG SOL): 12
• Minimum Copper Conductor Size (AWG STR): #16
• Minimum Copper Conductor Size (AWG): #16
• Minimum Copper Conductor Size (AWG SOL): #16
• Minimum Metric Conductor Size (mm²): 2
• Maximum Metric Conductor Size (mm²): 6
• Wire Strip Length (mm): 7.1
• Wire Strip Length (In.): 0.28
• Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Maximum Voltage (kV): 0.6
• Base Material: Copper
• Maximum Voltage (V): 600
• Finish/Coating: Tin-Plated
• Color Code: Yellow
• Barrel Type: Insulation Grip Sleeve
• Barrel Length (In.): 0.62
• Barrel Length (mm): 15.7
• CSA Temperature Rating (°C): 105
• Flammability Rating: UL 94 V-2/UL 94 HB
• Insulation Diameter (mm): 5.8
• Insulation Diameter (In.): 0.23
• Maximum Operating Temperature (°F): 221
• Maximum Operating Temperature (°C): 105
• Maximum Wire Insulation Diameter (In.): 0.23
• Maximum Wire Insulation Diameter (mm): 5.8
• Minimum Wire Insulation Diameter (mm): 5.8
• Minimum Wire Insulation Diameter (In.): 0.23
• Overall Length (In.): 1.24
• Overall Length (mm): 31.5
• Overall Width (In.): 0.52
• Overall Width (mm): 13.2
• Tongue Length (In.): 0.62
• Tongue Length (mm): 15.7
• Tongue Thickness (mm): 1.3
• Tongue Thickness (In.): 0.05
• Tongue Width (In.): 0.52
• Tongue Width (mm): 13.2
• Sub Brand: Pan-Term
• Packaging Type: Bottle
• Product Type: Ring Terminal

Packaging Details

• UPC: 07498380293
• GTIN Package: 00074983802937
• Standard Package Volume Ft3: 0.0099
• Standard Package Weight Pounds: 0.3850
• Std Package Height In: 2
• Std Package Height MM: 50.8
• Std Package Length In: 4.3
• Std Package Length MM: 109.22
• Std Package Width In: 2
• Std Package Width MM: 50.8
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 50
• GTIN Carton: 50074983802932
• Standard Carton Volume Ft3: 0.0099
• Standard Carton Weight Pounds: 3.8500
• Std Carton Height In: 4.3
• Std Carton Height MM: 109.22
• Std Carton Length In: 10.8
• Std Carton Length MM: 109.22
• Std Carton Width In: 3.7
• Std Carton Width MM: 93.98
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983802937
• USA HS Code: 8536904000000000000000
• USA HS Code 10digit: 8536904000
• ECCN Commodity Code: EAR99
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 50
