PAN PN14-10LFN-M Panduit PN14-10LFN

$350.25/m (1000 ea)

Usually ships within 6 to 10 Days

Adding...

Already a Customer? Log in to view your pricing

Manufacturer	Panduit
Mfg Catalog #	PN14-10LFN-M
North Coast Part #	672999

Specifications

Product Segment: IEI
Fork Type: Locking Fork Narrow
Insulation Type: Nylon
Insulation Material: Nylon
Maximum Copper Conductor Size (AWG): #14
Minimum Wire Size (AWG): #16
Maximum Copper Conductor Size (AWG SOL): #14
Maximum Copper Conductor Size (AWG STR): #14
Maximum Wire Size (AWG): #14
Minimum Copper Conductor Size (AWG STR): #16
Minimum Copper Conductor Size (AWG SOL): #18
Minimum Copper Conductor Size (AWG): #16
Maximum Metric Conductor Size (mm²): 2.5
Minimum Metric Conductor Size (mm²): 1.5
Wire Strip Length (In.): 7/32
Stud Size: #10
Wire Strip Length (mm): 5.6
Standards Met: UL Listed UL486A-486B ; CSA Certified C22.2 No.65
Maximum Voltage (V): 600
Maximum Voltage (kV): 0.6
Finish/Coating: Tin-Plated
Base Material: Copper
Color Code: Blue
Barrel Type: Standard
Barrel Length (mm): 11.6
Barrel Length (In.): 0.46
CSA Temperature Rating (°C): 105
Flammability Rating: UL94-HB
Insulation Diameter (In.): 0.16
Insulation Diameter (mm): 4.1
Maximum Operating Temperature (°C): 105
Maximum Operating Temperature (°F): 221
Seam Type: Butted
Maximum Wire Insulation Diameter (mm): 4.11
Maximum Wire Insulation Diameter (In.): 0.162
Minimum Wire Insulation Diameter (mm): 2
Minimum Wire Insulation Diameter (In.): 0.08
Stud Hole Size (mm): 4.8
Stud Hole Size (In.): 1/5
Overall Length (In.): 0.91
Overall Length (mm): 23.11
Overall Width (In.): 0.28
Overall Width (mm): 7.11
Tongue Length (mm): 11.6
Tongue Length (In.): 0.46
Sub Brand: Pan-Term®
Tongue Thickness (In.): 0.03
Tongue Thickness (mm): 0.8
Tongue Width (mm): 7.1
Tongue Width (In.): 0.28
Packaging Type: Box
Product Type: Loose Piece Forks
For Use With: CT-100, CT-250
For use with: CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)

Packaging Details

UPC: 07498380888
GTIN Package: 00074983808885
Standard Package Volume Ft3: 0.0665
Standard Package Weight Pounds: 2.4000
Std Package Height In: 3.4
Std Package Height MM: 86.36
Std Package Length In: 8.2
Std Package Length MM: 208.28
Std Package Width In: 4.4
Std Package Width MM: 111.76
Std. Pkg. UOM: Piece
UOM EA PK: PK
Std. Pkg. Qty.: 1000
Standard Carton Volume Ft3: 0.0665
Standard Carton Weight Pounds: 0.0000
Std Carton Length MM: 208.28
Std Ctn Qty: 0
Min. Order UOM: Piece
Country of Origin 2Digit: MX
RoHS Compliant: Compliant
EAN: 00074983808885
REACH Status: False
Buy American Compliant: Y
ARRA Compliant: Y
Mercury Content Indicator: No
Hazardous Material Flag: N
Min Order Qty: 1,000

Overview

UPC	07498380888

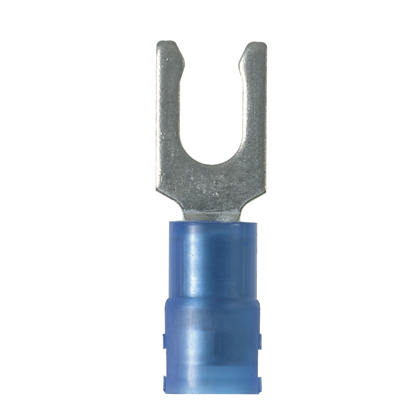

Item Long Description	The PN14-10LFN-M Pan-Term Terminal is a nylon insulated, locking fork terminal with narrow tongue. The locking tongue design locks in place for a secure connection. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Barrel serrations assure good wire contact and maximum tensile strength.
GTiN	00074983808885
Finish	Tin-Plated
Width	0.28 in
Color	Blue
Type	Loose Piece Forks
Barrel Type	Beveled
Material	Copper
Country of Origin	MX
Wire Size	18-14 AWG
Temperature Rating	221 F
Pkg Qty	1000
Family Brand Name	Panduit
TC Connection	Standard
Max Operating Temperature	221 degrees F
Overall Length	0.91 in
Barrel Length	0.46 in
Color Coding	Blue
Enclosure	Fork shape
Sub Brand	Pan-Term
Size	NA
