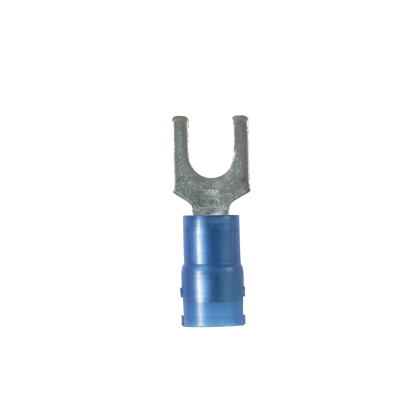

Panduit PN14-14F-M 18-14 AWG Nylon Insulated Fork Terminal

Specifications

• Product Segment: IEI
• UNSPSC: 39121409
• Fork Type: Standard
• Insulation Type: Nylon
• Insulation Material: Nylon
• Maximum Copper Conductor Size (AWG): #14
• Maximum Copper Conductor Size (AWG STR): #14
• Maximum Copper Conductor Size (AWG SOL): #14
• Minimum Wire Size (AWG): #16
• Maximum Wire Size (AWG): #14
• Minimum Copper Conductor Size (AWG SOL): #16
• Minimum Copper Conductor Size (AWG): #16
• Minimum Copper Conductor Size (AWG STR): #16
• Minimum Metric Conductor Size (mm²): 1.5
• Maximum Metric Conductor Size (mm²): 2.5
• Wire Strip Length (In.): 0.22
• Stud Size: 1/4"
• Wire Strip Length (mm): 5.5
• Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Maximum Voltage (V): 600
• Maximum Voltage (kV): 0.6
• Base Material: Copper
• Finish/Coating: Tin-Plated
• Color Code: Blue
• Barrel Type: Grip Sleeve
• Barrel Length (In.): 0.51
• Barrel Length (mm): 13
• Flammability Rating: UL 587-H
• Insulation Diameter (mm): 4.1
• Insulation Diameter (In.): 0.16
• Maximum Operating Temperature (°F): 221
• Maximum Operating Temperature (°C): 105
• Seam Type: NA
• Maximum Wire Insulation Diameter (In.): 0.16
• Maximum Wire Insulation Diameter (mm): 4.1
• Minimum Wire Insulation Diameter (In.): 0.08
• Minimum Wire Insulation Diameter (mm): 2
• Stud Hole Size (mm): 6.4
• Stud Hole Size (In.): 1/4
• Overall Length (mm): 25.9
• Overall Length (In.): 1.02
• Overall Width (mm): 11.2
• Overall Width (In.): 0.44
• Tongue Length (mm): 13
• Tongue Length (In.): 0.51
• Tongue Thickness (In.): 0.03
• Sub Brand: Pan-Term
• Tongue Thickness (mm): 0.8
• Tongue Width (In.): 0.44
• Tongue Width (mm): 11.2
• Packaging Type: Box
• Product Type: Loose Piece Forks
• For use with: CT-100, CT-250

Packaging Details

• UPC: 07498380315
• GTIN Package: 00074983803156
• Standard Package Volume Ft3: 0.0701
• Standard Package Weight Pounds: 3.2000
• Std Package Height In: 3.4
• Std Package Height MM: 86.36
• Std Package Length In: 8.2
• Std Package Length MM: 208.28
• Std Package Width In: 4.4
• Std Package Width MM: 111.76
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 1000
• Standard Carton Volume Ft3: 0.0701
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 208.28
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983803156
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1000
