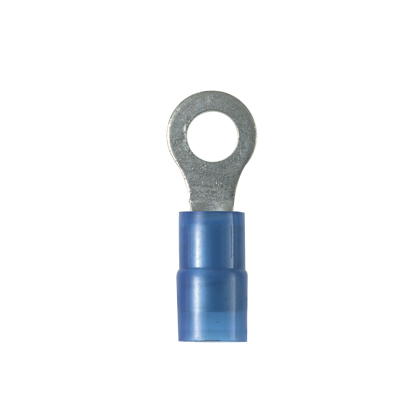

Panduit PN14-14R-C 18-14 AWG Nylon Insulated Ring Terminal

Specifications

• Product Segment: IEI
• Stud Hole Size (In.): 27/100
• Stud Hole Size (mm): 6.9
• Insulation Material: Nylon
• Maximum Copper Conductor Size (AWG SOL): 14
• Maximum Wire Size (AWG): 14
• Maximum Copper Conductor Size (AWG): 14
• Maximum Copper Conductor Size (AWG STR): 14
• Minimum Wire Size (AWG): #16
• Minimum Copper Conductor Size (AWG STR): #16
• Minimum Copper Conductor Size (AWG): #16
• Minimum Copper Conductor Size (AWG SOL): #16
• Maximum Metric Conductor Size (mm²): 2.5
• Minimum Metric Conductor Size (mm²): 1.5
• Wire Strip Length (In.): 0.25
• Wire Strip Length (mm): 6.4
• Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Base Material: Copper
• Maximum Voltage (V): 600
• Maximum Voltage (kV): 0.6
• Finish/Coating: Tin-Plated
• Color Code: Blue
• Barrel Type: Grip Sleeve
• Barrel Length (mm): 13.5
• Barrel Length (In.): 0.53
• Flammability Rating: UL 94 V-2/UL 94 HB
• Insulation Diameter (In.): 0.16
• Insulation Diameter (mm): 4.1
• Maximum Operating Temperature (°C): 105
• Maximum Operating Temperature (°F): 221
• Maximum Wire Insulation Diameter (mm): 4.1
• Maximum Wire Insulation Diameter (In.): 0.16
• Minimum Wire Insulation Diameter (mm): 4.1
• Minimum Wire Insulation Diameter (In.): 0.16
• Seam Type: Metal Insulation Grip Sleeved
• Sub Brand: Pan-Term
• Overall Length (mm): 26.9
• Overall Length (In.): 1.06
• Overall Width (In.): 0.44
• Overall Width (mm): 11.2
• Tongue Length (In.): 0.53
• Tongue Length (mm): 13.5
• Tongue Thickness (In.): 0.03
• Tongue Thickness (mm): 0.8
• Tongue Width (In.): 0.44
• Tongue Width (mm): 11.2
• Packaging Type: Bottle
• Product Type: Ring Terminal

Packaging Details

• UPC: 07498380022
• GTIN Package: 00074983800223
• Standard Package Volume Ft3: 0.0064
• Standard Package Weight Pounds: 0.3500
• Std Package Height In: 1.95
• Std Package Height MM: 49.53
• Std Package Length In: 4.3
• Std Package Length MM: 109.22
• Std Package Width In: 1.95
• Std Package Width MM: 49.53
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 100
• GTIN Carton: 50074983800228
• Standard Carton Volume Ft3: 0.0064
• Standard Carton Weight Pounds: 1.7500
• Std Carton Height In: 4.4
• Std Carton Height MM: 111.76
• Std Carton Length In: 9.85
• Std Carton Length MM: 109.22
• Std Carton Width In: 2.25
• Std Carton Width MM: 57.15
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983800223
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 100
