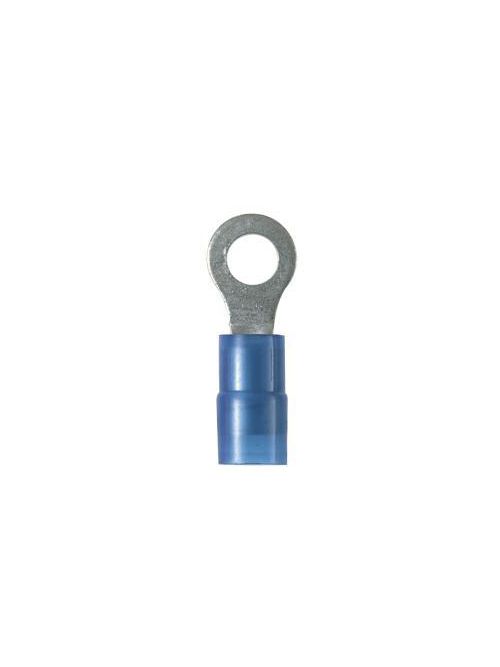

Panduit PN14-38R-L 18-14 AWG Nylon Insulated Ring Terminal

Specifications

• Product Segment: IEI
• UNSPSC: 39121409
• Stud Size: 3/8"
• Stud Hole Size (mm): 10.2
• Stud Hole Size (In.): 2/5
• Insulation Material: Nylon
• Maximum Copper Conductor Size (AWG SOL): #14
• Minimum Wire Size (AWG): #18
• Maximum Copper Conductor Size (AWG): #14
• Maximum Copper Conductor Size (AWG STR): #14
• Maximum Wire Size (AWG): #14
• Minimum Copper Conductor Size (AWG SOL): #18
• Minimum Copper Conductor Size (AWG): #18
• Minimum Copper Conductor Size (AWG STR): #18
• Minimum Metric Conductor Size (mm²): 1
• Maximum Metric Conductor Size (mm²): 2.5
• Wire Strip Length (mm): 5.3
• Wire Strip Length (In.): 0.21
• Standards Met: CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B
• Maximum Voltage (V): 600
• Base Material: Copper
• Maximum Voltage (kV): 0.6
• Finish/Coating: Tin-Plated
• Color Code: Blue
• Barrel Type: Grip Sleeve
• Barrel Length (In.): 0.57
• Barrel Length (mm): 14.5
• CSA Temperature Rating (°C): 105
• Flammability Rating: UL 94 V-2/UL 94 HB
• Insulation Diameter (mm): 4.1
• Insulation Diameter (In.): 0.16
• Maximum Operating Temperature (°C): 105
• Maximum Operating Temperature (°F): 221
• Maximum Wire Insulation Diameter (mm): 4.1
• Maximum Wire Insulation Diameter (In.): 0.16
• Minimum Wire Insulation Diameter (In.): 0.08
• Minimum Wire Insulation Diameter (mm): 2
• Sub Brand: Pan-Term
• Overall Length (mm): 29
• Overall Length (In.): 1.14
• Overall Width (In.): 0.53
• Overall Width (mm): 13.5
• Tongue Length (mm): 14.5
• Tongue Length (In.): 0.57
• Tongue Width (In.): 0.53
• Tongue Width (mm): 13.5
• Packaging Type: Bottle
• Product Type: Loose Piece Ring Terminal
• For Use With: CT-550, CT-1550, CT-1551,CT-460, CT-400

Packaging Details

• UPC: 07498380026
• GTIN Package: 00074983800261
• Standard Package Volume Ft3: 0.0049
• Standard Package Weight Pounds: 0.1850
• Std Package Height In: 1.75
• Std Package Height MM: 44.45
• Std Package Length In: 3.6
• Std Package Length MM: 91.44
• Std Package Width In: 1.75
• Std Package Width MM: 44.45
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 50
• GTIN Carton: 50074983800266
• Standard Carton Volume Ft3: 0.0049
• Standard Carton Weight Pounds: 1.8500
• Std Carton Height In: 3.65
• Std Carton Height MM: 92.71
• Std Carton Length In: 9.35
• Std Carton Length MM: 91.44
• Std Carton Width In: 4.35
• Std Carton Width MM: 110.49
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983800261
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 50
