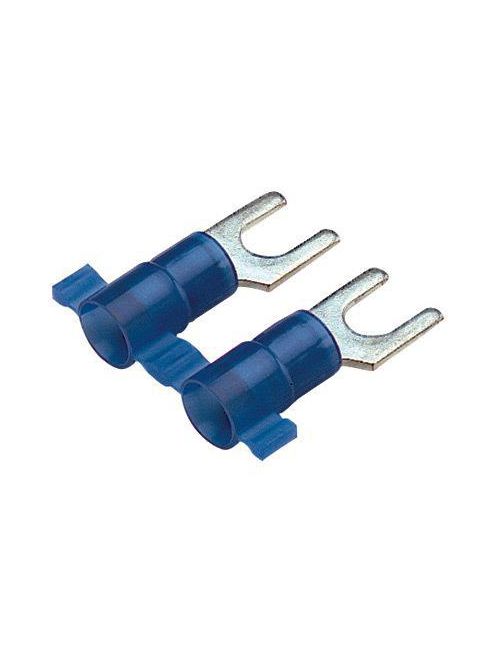

PAN PN14-6F-3K Fork, Nylon Ins,16-1

Specifications

• UNSPSC: 39121409
• Product Segment: IEI
• Fork Type: Standard
• Insulation Material: Nylon
• Insulation Type: Nylon
• Maximum Copper Conductor Size (AWG): #14
• Maximum Wire Size (AWG): #14
• Maximum Copper Conductor Size (AWG SOL): #14
• Minimum Wire Size (AWG): #16
• Maximum Copper Conductor Size (AWG STR): #14
• Minimum Copper Conductor Size (AWG): #16
• Minimum Copper Conductor Size (AWG STR): #16
• Minimum Copper Conductor Size (AWG SOL): #16
• Maximum Metric Conductor Size (mm²): 2.5
• Minimum Metric Conductor Size (mm²): 1.5
• Wire Strip Length (mm): 5.5
• Wire Strip Length (In.): 0.22
• Stud Size: M3.5
• Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Maximum Voltage (V): 600
• Maximum Voltage (kV): 0.6
• Finish/Coating: Tin-Plated
• Base Material: Copper
• Color Code: Blue
• Barrel Type: Grip Sleeve
• Barrel Length (mm): 9.9
• Barrel Length (In.): 0.39
• Flammability Rating: UL 587-H
• Insulation Diameter (mm): 4.1
• Insulation Diameter (In.): 0.16
• Maximum Operating Temperature (°C): 105
• Maximum Operating Temperature (°F): 221
• Seam Type: NA
• Maximum Wire Insulation Diameter (In.): 0.16
• Maximum Wire Insulation Diameter (mm): 4.1
• Stud Hole Size (In.): 1/7
• Stud Hole Size (mm): 3.5
• Overall Length (In.): 0.78
• Overall Length (mm): 19.8
• Overall Width (mm): 7.1
• Overall Width (In.): 0.28
• Tongue Length (In.): 0.39
• Tongue Length (mm): 9.9
• Tongue Thickness (In.): 0.03
• Tongue Thickness (mm): 0.8
• Sub Brand: Reel Smart
• Tongue Width (In.): 0.28
• Tongue Width (mm): 7.1
• Packaging Type: Reel
• Product Type: Terminals on a Reel
• For Use With: CP-871, CD-800EZ, CA9, CD-800-2, CD9-2A

Packaging Details

• UPC: 07498380639
• GTIN Package: 00074983806393
• Standard Package Volume Ft3: 0.9208
• Standard Package Weight Pounds: 9.3000
• Std Package Height In: 2.4
• Std Package Height MM: 60.96
• Std Package Length In: 26.1
• Std Package Length MM: 662.94
• Std Package Width In: 25.4
• Std Package Width MM: 645.16
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 3000
• Standard Carton Volume Ft3: 0.9208
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 662.94
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983806393
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 3,000
