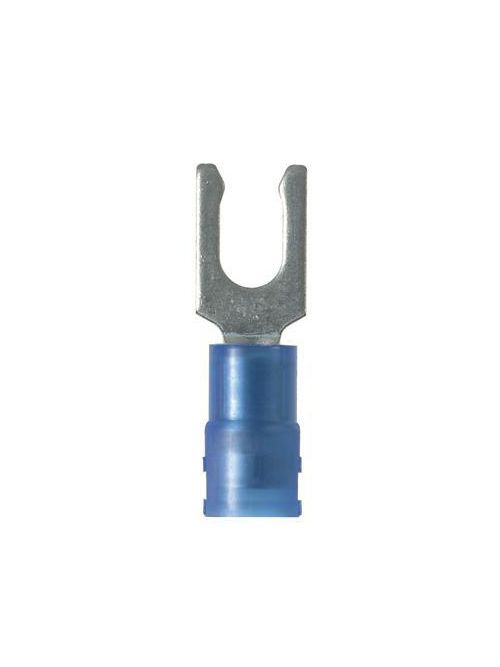

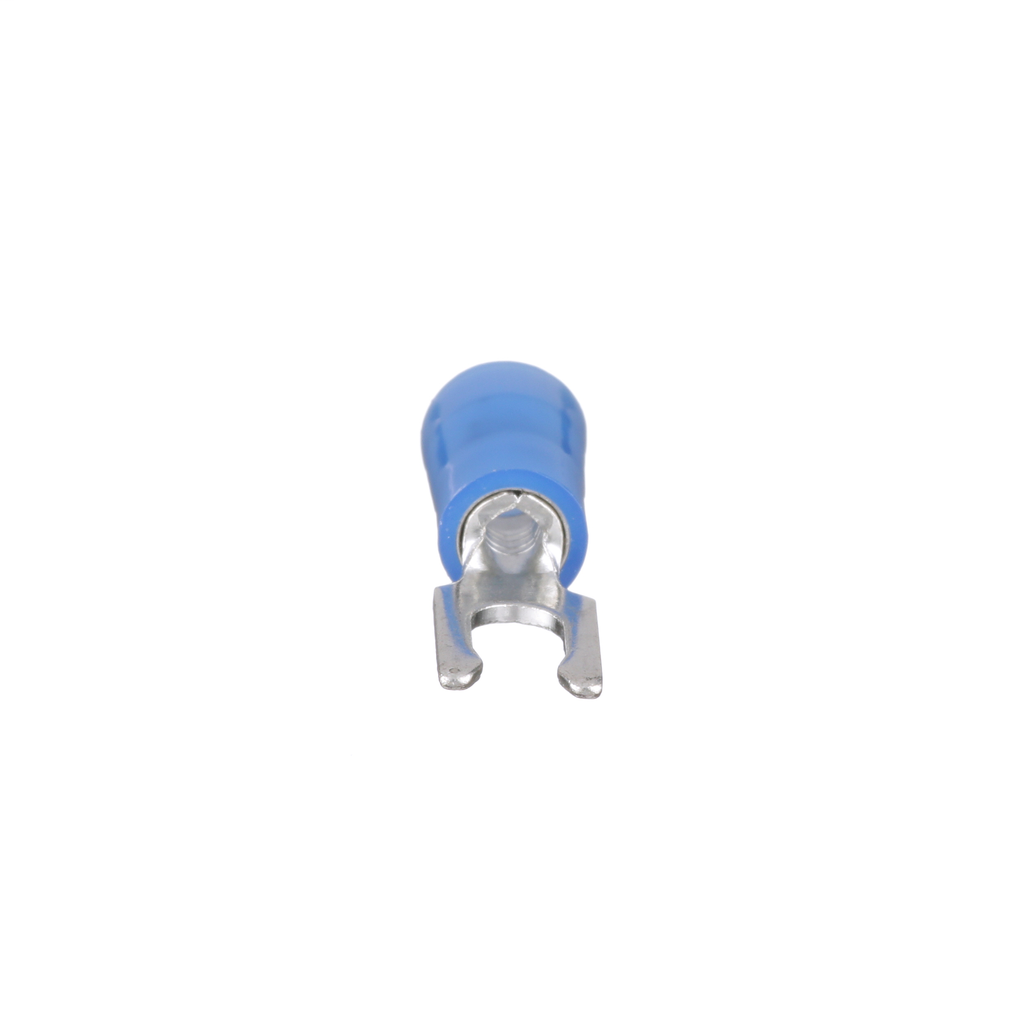

PAN PN14-6LF-M Fork,Locking,Nylon,1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$442.44/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PN14-6LF-M
North Coast Part # 673002

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Fork Type: Locking Fork
  • Insulation Material: Nylon
  • Insulation Type: Nylon
  • Maximum Copper Conductor Size (AWG SOL): #14
  • Maximum Wire Size (AWG): #14
  • Maximum Copper Conductor Size (AWG): #14
  • Maximum Copper Conductor Size (AWG STR): #14
  • Minimum Wire Size (AWG): #16
  • Minimum Copper Conductor Size (AWG SOL): #16
  • Minimum Copper Conductor Size (AWG): #16
  • Minimum Copper Conductor Size (AWG STR): #16
  • Minimum Metric Conductor Size (mm²): 1.5
  • Maximum Metric Conductor Size (mm²): 2.5
  • Wire Strip Length (mm): 5.5
  • Wire Strip Length (In.): 0.22
  • Stud Size: #6
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
  • Maximum Voltage (V): 600
  • Maximum Voltage (kV): 0.6
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Color Code: Blue
  • Barrel Type: Beveled
  • Barrel Length (In.): 0.43
  • Barrel Length (mm): 10.9
  • Flammability Rating: UL 587-H
  • Insulation Diameter (In.): 0.16
  • Insulation Diameter (mm): 4.1
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Seam Type: NA
  • Maximum Wire Insulation Diameter (mm): 4.1
  • Maximum Wire Insulation Diameter (In.): 0.16
  • Minimum Wire Insulation Diameter (In.): 0.08
  • Minimum Wire Insulation Diameter (mm): 2
  • Stud Hole Size (In.): 1/7
  • Stud Hole Size (mm): 3.5
  • Overall Length (In.): 0.86
  • Overall Length (mm): 21.8
  • Overall Width (In.): 0.25
  • Overall Width (mm): 6.4
  • Tongue Length (mm): 10.9
  • Tongue Length (In.): 0.43
  • Tongue Thickness (In.): 0.03
  • Tongue Thickness (mm): 0.8
  • Tongue Width (In.): 0.25
  • Tongue Width (mm): 6.4
  • Sub Brand: Pan-Term
  • Packaging Type: Box
  • Product Type: Loose Piece Forks
  • For Use With: CT-100, CT-250

Packaging Details

  • UPC: 07498380089
  • GTIN Package: 00074983800896
  • Standard Package Volume Ft3: 0.0482
  • Standard Package Weight Pounds: 2.3000
  • Std Package Height In: 3.35
  • Std Package Height MM: 85.09
  • Std Package Length In: 7.15
  • Std Package Length MM: 181.61
  • Std Package Width In: 3.35
  • Std Package Width MM: 85.09
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.0482
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 181.61
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983800896
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000

Overview

UPC 07498380089
GTiN 00074983800896
Finish Tin-Plated
Width 0.25 in
Color Blue
Type Loose Piece Forks
Barrel Type Beveled
Material Copper
Country of Origin MX
Wire Size 14
Temperature Rating 221 F
Pkg Qty 1000
Family Brand Name Panduit
Carton Qty 0
TC Connection Standard
Max Operating Temperature 221 degrees F
Overall Length 0.86 in
Barrel Length 0.43 in
Color Coding Blue
Enclosure Fork shape
Sub Brand Pan-Term
Size #6
Voltage null
