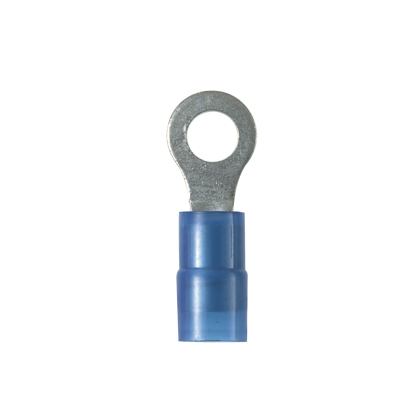

Panduit PN14-6R-M 18-14 AWG Nylon Insulated Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$374.73/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PN14-6R-M
North Coast Part # 673003

Specifications

  • Product Segment: IEI
  • Stud Size: #6
  • Insulation Material: Nylon
  • Maximum Wire Size (AWG): #14
  • Maximum Copper Conductor Size (AWG SOL): #14
  • Minimum Wire Size (AWG): #18
  • Maximum Copper Conductor Size (AWG STR): #14
  • Minimum Copper Conductor Size (AWG STR): #18
  • Minimum Copper Conductor Size (AWG SOL): #18
  • Maximum Metric Conductor Size (mm²): 2.5
  • Minimum Metric Conductor Size (mm²): 1
  • Wire Strip Length (In.): 7/32
  • Wire Strip Length (mm): 5.6
  • Standards Met: UL 486A/B, and CSA 22.2 No.65
  • Maximum Voltage (V): 600
  • Base Material: Copper
  • Maximum Voltage (kV): 0.6
  • Finish/Coating: Tin-Plated
  • Color Code: Blue
  • Barrel Type: Grip Sleeve
  • Flammability Rating: UL94-HB
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Maximum Wire Insulation Diameter (In.): 0.16
  • Maximum Wire Insulation Diameter (mm): 4.1
  • Sub Brand: Pan-Term®
  • Overall Length (In.): 0.85
  • Overall Length (mm): 21.6
  • Overall Width (mm): 7.9
  • Overall Width (In.): 0.31
  • Tongue Thickness (mm): 0.8
  • Tongue Thickness (In.): 0.03
  • Tongue Width (In.): 0.31
  • Tongue Width (mm): 7.9
  • Packaging Type: Box
  • Product Type: Loose Piece Ring Terminal
  • For Use With: CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)

Packaging Details

  • UPC: 07498380017
  • GTIN Package: 00074983800179
  • Standard Package Volume Ft3: 0.0482
  • Standard Package Weight Pounds: 2.5000
  • Std Package Height In: 3.35
  • Std Package Height MM: 85.09
  • Std Package Length In: 7.15
  • Std Package Length MM: 181.61
  • Std Package Width In: 3.35
  • Std Package Width MM: 85.09
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.0482
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 181.61
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983800179
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000
  • Pallet Quantity: 660,000
  • Pallet Volume: 0.000000
  • Pallet Weight: 1,650.0000

Overview

UPC 07498380017
Item Long Description The PN14-6R-M Pan-Term Terminal is a nylon insulated, ring terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
GTiN 00074983800179
Finish Tinned
Width 0.31 in
Size M3.5
Color Blue
Type Loose Piece Ring Terminal
Barrel Type Grip Sleeve
Material Copper
Country of Origin MX
Wire Size 18-14 AWG
Temperature Rating 221 F
Pkg Qty 1000
Family Brand Name Panduit
TC Connection Standard
Max Operating Temperature 221 degrees F
Overall Length 0.85 in
Barrel Length 10.66 in
Color Coding Blue
Enclosure Ring shape
Sub Brand Pan-Term
Voltage 600 Volt
