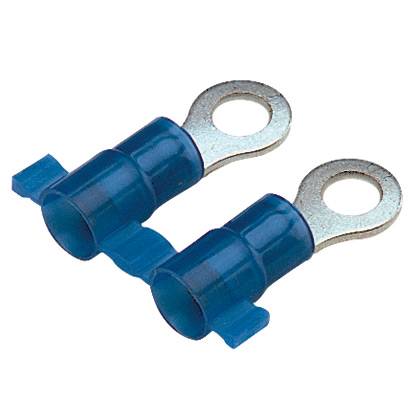

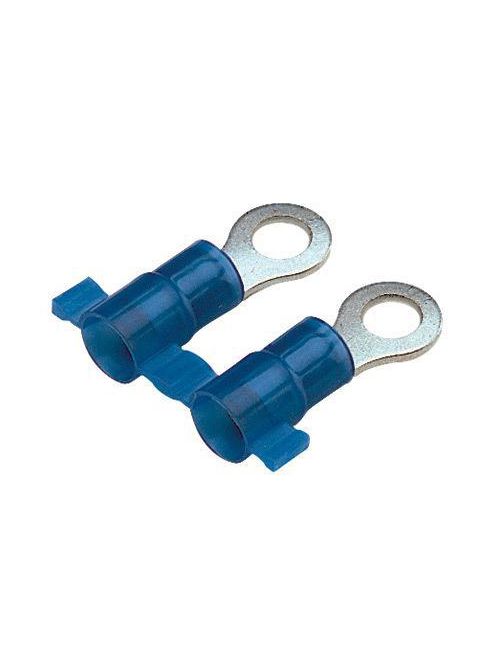

PAN PN14-6RN-3K Ring,Nylon,16-14AWG
$363.29/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 3000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PN14-6RN-3K
North Coast Part # 828196

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Stud Size: #6
  • Stud Hole Size (mm): 3.8
  • Stud Hole Size (In.): 3/20
  • Insulation Material: Nylon
  • Maximum Copper Conductor Size (AWG STR): 14
  • Maximum Copper Conductor Size (AWG SOL): 14
  • Maximum Wire Size (AWG): #16
  • Minimum Wire Size (AWG): #16
  • Maximum Copper Conductor Size (AWG): 14
  • Minimum Copper Conductor Size (AWG STR): #16
  • Minimum Copper Conductor Size (AWG): #16
  • Minimum Copper Conductor Size (AWG SOL): #16
  • Maximum Metric Conductor Size (mm²): 2.5
  • Minimum Metric Conductor Size (mm²): 1.5
  • Wire Strip Length (mm): 6.4
  • Wire Strip Length (In.): 0.25
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
  • Maximum Voltage (kV): 0.6
  • Maximum Voltage (V): 600
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Color Code: Blue
  • Barrel Length (In.): 0.38
  • Barrel Length (mm): 9.7
  • CSA Temperature Rating (°C): 105
  • Flammability Rating: UL 94 V-2/UL 94 HB
  • Insulation Diameter (In.): 0.16
  • Insulation Diameter (mm): 4.1
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Maximum Wire Insulation Diameter (In.): 0.16
  • Maximum Wire Insulation Diameter (mm): 4.1
  • Minimum Wire Insulation Diameter (mm): 4.1
  • Minimum Wire Insulation Diameter (In.): 0.16
  • Sub Brand: Reel Smart
  • Overall Length (In.): 0.76
  • Overall Length (mm): 19.3
  • Overall Width (In.): 0.25
  • Overall Width (mm): 6.4
  • Tongue Length (In.): 0.38
  • Tongue Length (mm): 9.7
  • Tongue Thickness (In.): 0.03
  • Tongue Thickness (mm): 0.8
  • Tongue Width (In.): 0.25
  • Tongue Width (mm): 6.4
  • Packaging Type: Reel
  • Product Type: Ring Terminal
  • For use with: CP-861, CP-862, CP-871

Packaging Details

  • UPC: 07498380625
  • GTIN Package: 00074983806256
  • Standard Package Volume Ft3: 0.9208
  • Standard Package Weight Pounds: 9.3000
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 26.1
  • Std Package Length MM: 662.94
  • Std Package Width In: 25.4
  • Std Package Width MM: 645.16
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 3000
  • Standard Carton Volume Ft3: 0.9208
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 662.94
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983806256
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 3000

Categories

Overview

UPC 07498380625
GTiN 00074983806256
Finish Tin-Plated
Width 0.25 in
Size M3.5
Color Blue
Type Ring Terminal
Barrel Type Non-Funnel Entry
Material Copper
Country of Origin MX
Wire Size 16-14 AWG
Temperature Rating 221 F
Pkg Qty 3000
Family Brand Name Panduit
Carton Qty 0
TC Connection Standard
Max Operating Temperature 221 degrees F
Overall Length 0.76 in
Barrel Length 0.38 in
Color Coding Blue
Enclosure Ring shape
Sub Brand Reel Smart
Voltage null
UNSPSC 39121409
