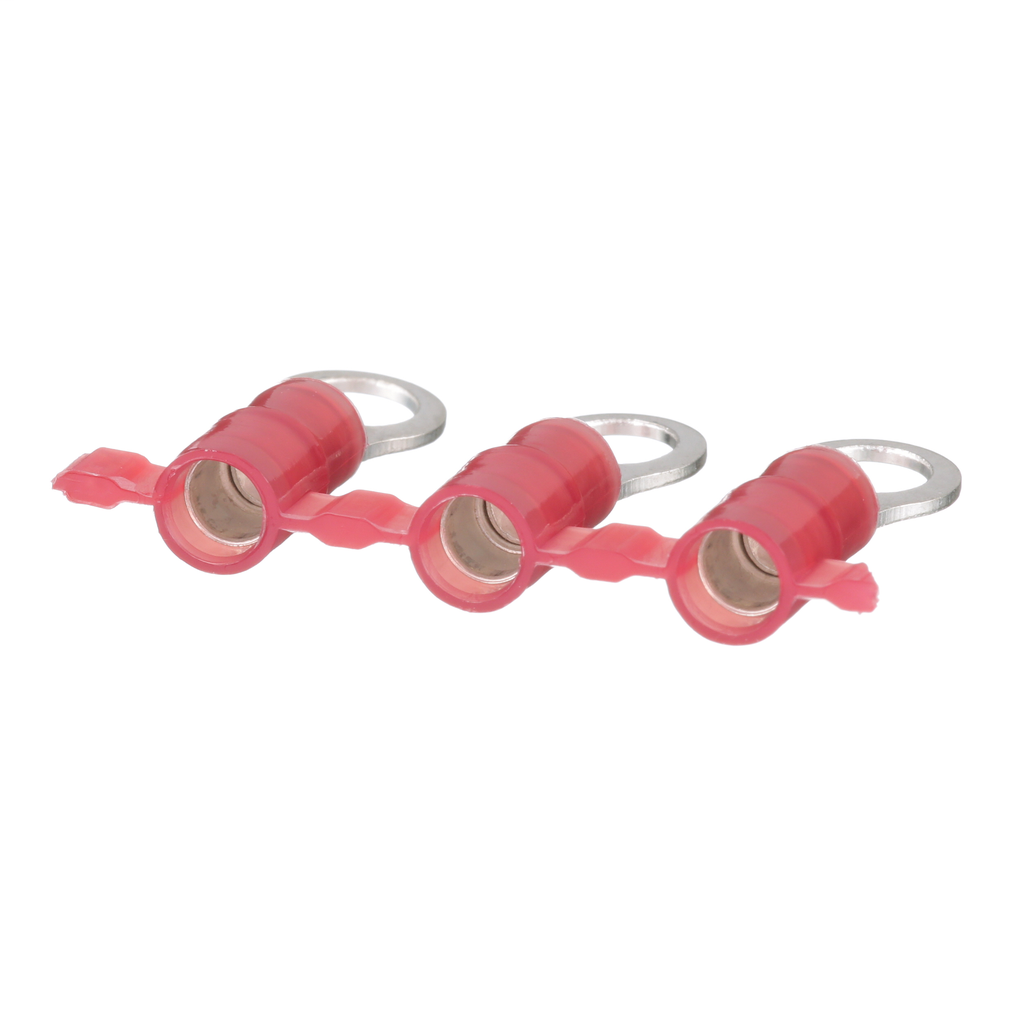

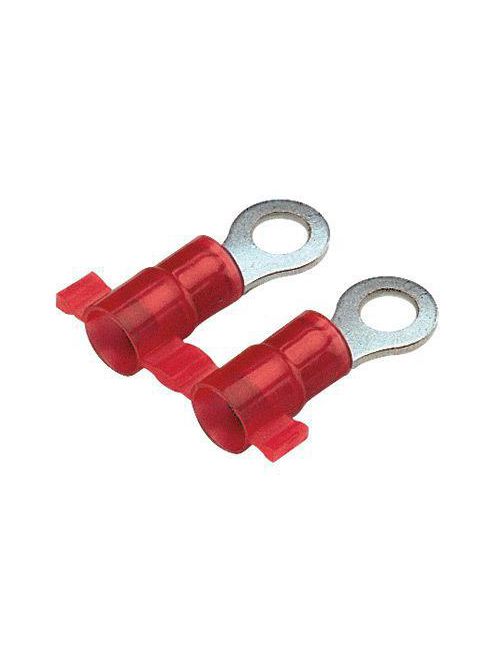

PAN PN18-10R-3K Ring,Nylon,22-18AWG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$345.99/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 3000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PN18-10R-3K
North Coast Part # 828205

Specifications

  • Product Segment: IEI
  • Stud Hole Size (mm): 5.1
  • Stud Hole Size (In.): 1/5
  • Insulation Material: Nylon
  • Maximum Copper Conductor Size (AWG SOL): 18
  • Maximum Wire Size (AWG): 18
  • Maximum Copper Conductor Size (AWG): 18
  • Minimum Wire Size (AWG): #22
  • Maximum Copper Conductor Size (AWG STR): 18
  • Minimum Copper Conductor Size (AWG STR): #22
  • Minimum Copper Conductor Size (AWG): #22
  • Minimum Copper Conductor Size (AWG SOL): #22
  • Maximum Metric Conductor Size (mm²): 1.5
  • Minimum Metric Conductor Size (mm²): 0.5
  • Wire Strip Length (In.): 0.22
  • Wire Strip Length (mm): 5.6
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
  • Base Material: Copper
  • Maximum Voltage (V): 600
  • Maximum Voltage (kV): 0.6
  • Finish/Coating: Tin-Plated
  • Color Code: Red
  • Barrel Type: Insulation Grip Sleeve
  • Barrel Length (mm): 10.9
  • Barrel Length (In.): 0.43
  • CSA Temperature Rating (°C): 105
  • Flammability Rating: UL 94 V-2/UL 94 HB
  • Insulation Diameter (mm): 3.8
  • Insulation Diameter (In.): 0.15
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Maximum Wire Insulation Diameter (mm): 3.8
  • Maximum Wire Insulation Diameter (In.): 0.15
  • Minimum Wire Insulation Diameter (mm): 2
  • Minimum Wire Insulation Diameter (In.): 0.08
  • Overall Length (In.): 0.86
  • Overall Length (mm): 21.8
  • Overall Width (In.): 0.31
  • Overall Width (mm): 7.9
  • Tongue Length (mm): 10.9
  • Tongue Length (In.): 0.43
  • Tongue Thickness (In.): 0.03
  • Tongue Thickness (mm): 0.8
  • Tongue Width (In.): 0.31
  • Tongue Width (mm): 7.9
  • Sub Brand: Reel Smart
  • Packaging Type: Reel
  • Product Type: Ring Terminal
  • For Use With: CP-851,CP-860, CP-861,CP-871

Packaging Details

  • UPC: 07498380621
  • GTIN Package: 00074983806218
  • Standard Package Volume Ft3: 0.9208
  • Standard Package Weight Pounds: 9.0000
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 26.1
  • Std Package Length MM: 662.94
  • Std Package Width In: 25.4
  • Std Package Width MM: 645.16
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 3000
  • Standard Carton Volume Ft3: 0.9208
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 662.94
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983806218
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 3,000

Overview

UPC 07498380621
GTiN 00074983806218
Finish Tin-Plated
Width 0.31 in
Color Red
Type Ring Terminal
Barrel Type Insulation Grip Sleeve
Material Copper
Country of Origin MX
Wire Size 22-18 AWG
Temperature Rating 221 F
Pkg Qty 3000
Family Brand Name Panduit
Carton Qty 0
TC Connection Standard
Max Operating Temperature 221 degrees F
Overall Length 0.86 in
Barrel Length 0.43 in
Color Coding Red
Enclosure Ring shape
Sub Brand Reel Smart
Size NA
Voltage null
