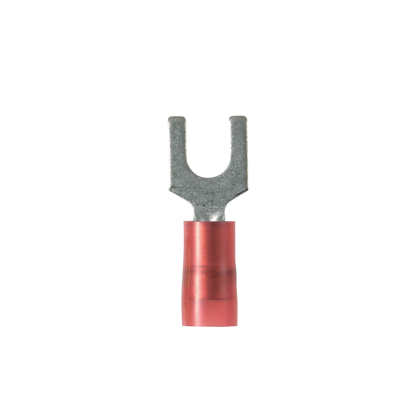

PAN PN18-14F-C Fork, Nylon Ins,22-1
$111.53/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PN18-14F-C
North Coast Part # 601459

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Fork Type: Standard
  • Insulation Material: Nylon
  • Insulation Type: Nylon
  • Maximum Copper Conductor Size (AWG SOL): #18
  • Minimum Wire Size (AWG): #22
  • Maximum Copper Conductor Size (AWG STR): #18
  • Maximum Wire Size (AWG): #18
  • Maximum Copper Conductor Size (AWG): #18
  • Minimum Copper Conductor Size (AWG STR): #22
  • Minimum Copper Conductor Size (AWG): #22
  • Minimum Copper Conductor Size (AWG SOL): #22
  • Minimum Metric Conductor Size (mm²): 0.5
  • Maximum Metric Conductor Size (mm²): 1
  • Wire Strip Length (In.): 0.22
  • Stud Size: 1/4"
  • Wire Strip Length (mm): 5.5
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
  • Maximum Voltage (kV): 0.6
  • Maximum Voltage (V): 600
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Color Code: Red
  • Barrel Type: Grip Sleeve
  • Barrel Length (In.): 0.52
  • Barrel Length (mm): 13.1
  • Flammability Rating: UL 587-H
  • Insulation Diameter (In.): 0.15
  • Insulation Diameter (mm): 3.7
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Seam Type: Butted
  • Maximum Wire Insulation Diameter (mm): 3.7
  • Maximum Wire Insulation Diameter (In.): 0.15
  • Minimum Wire Insulation Diameter (In.): 0.08
  • Minimum Wire Insulation Diameter (mm): 2
  • Stud Hole Size (mm): 6.4
  • Stud Hole Size (In.): 1/4
  • Overall Length (mm): 26.2
  • Overall Length (In.): 1.03
  • Overall Width (mm): 11.2
  • Overall Width (In.): 0.44
  • Tongue Length (mm): 13.1
  • Tongue Length (In.): 0.52
  • Tongue Thickness (In.): 0.03
  • Tongue Thickness (mm): 0.8
  • Tongue Width (In.): 0.44
  • Tongue Width (mm): 11.2
  • Sub Brand: Pan-Term
  • Packaging Type: Bottle
  • Product Type: Loose Piece Forks
  • For Use With: CT-100, CT-160, CT-260

Packaging Details

  • UPC: 07498380306
  • GTIN Package: 00074983803064
  • Standard Package Volume Ft3: 0.0099
  • Standard Package Weight Pounds: 0.3400
  • Std Package Height In: 1.9
  • Std Package Height MM: 48.26
  • Std Package Length In: 4.3
  • Std Package Length MM: 109.22
  • Std Package Width In: 1.95
  • Std Package Width MM: 49.53
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983803069
  • Standard Carton Volume Ft3: 0.0099
  • Standard Carton Weight Pounds: 1.7000
  • Std Carton Height In: 4.35
  • Std Carton Height MM: 110.49
  • Std Carton Length In: 9.9
  • Std Carton Length MM: 109.22
  • Std Carton Width In: 2.25
  • Std Carton Width MM: 57.15
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983803064
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Overview

UPC 07498380306
GTiN 00074983803064
Finish Tin-Plated
Width 0.44 in
Size 1/4"
Color Red
Type Loose Piece Forks
Barrel Type Grip Sleeve
Material Copper
Country of Origin MX
Wire Size 18
Temperature Rating 221 F
Pkg Qty 100
Family Brand Name Panduit
Carton Qty 500
TC Connection Standard
Max Operating Temperature 221 degrees F
Overall Length 1.03 in
Barrel Length 0.52 in
Color Coding Red
Enclosure Fork shape
Sub Brand Pan-Term
Voltage null
