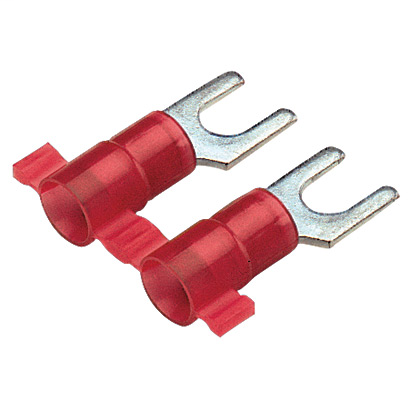

PAN PN18-6F-3K Fork, Nylon Ins,22-1

Specifications

• UNSPSC: 39121409
• Product Segment: IEI
• Fork Type: Standard
• Insulation Material: Nylon
• Insulation Type: Nylon
• Minimum Wire Size (AWG): #22
• Maximum Wire Size (AWG): #18
• Maximum Copper Conductor Size (AWG): #18
• Maximum Copper Conductor Size (AWG STR): #18
• Maximum Copper Conductor Size (AWG SOL): #18
• Minimum Copper Conductor Size (AWG SOL): #22
• Minimum Copper Conductor Size (AWG): #22
• Minimum Copper Conductor Size (AWG STR): #22
• Minimum Metric Conductor Size (mm²): 0.5
• Maximum Metric Conductor Size (mm²): 1
• Wire Strip Length (In.): 0.22
• Wire Strip Length (mm): 5.5
• Stud Size: M3.5
• Standards Met: UL Listed 587H, E52164
• Maximum Voltage (V): 600
• Maximum Voltage (kV): 0.6
• Finish/Coating: Tin-Plated
• Base Material: Copper
• Color Code: Red
• Barrel Type: Grip Sleeve
• Barrel Length (In.): 0.39
• Barrel Length (mm): 9.9
• Flammability Rating: UL 587-H
• Insulation Diameter (mm): 3.8
• Insulation Diameter (In.): 0.15
• Maximum Operating Temperature (°F): 221
• Maximum Operating Temperature (°C): 105
• Seam Type: Butted
• Maximum Wire Insulation Diameter (mm): 3.8
• Maximum Wire Insulation Diameter (In.): 0.15
• Stud Hole Size (In.): 1/7
• Stud Hole Size (mm): 3.5
• Overall Length (mm): 19.8
• Overall Length (In.): 0.78
• Overall Width (mm): 7.6
• Overall Width (In.): 0.3
• Tongue Length (mm): 9.9
• Tongue Length (In.): 0.39
• Tongue Thickness (mm): 0.8
• Tongue Thickness (In.): 0.03
• Tongue Width (In.): 0.3
• Tongue Width (mm): 7.6
• Sub Brand: Reel Smart
• Packaging Type: Reel
• Product Type: Terminals on a Reel
• For Use With: CD9-1A, CD-800-1

Packaging Details

• UPC: 07498380635
• GTIN Package: 00074983806355
• Standard Package Volume Ft3: 0.9208
• Standard Package Weight Pounds: 9.0000
• Std Package Height In: 2.4
• Std Package Height MM: 60.96
• Std Package Length In: 26.1
• Std Package Length MM: 662.94
• Std Package Width In: 25.4
• Std Package Width MM: 645.16
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 3000
• Standard Carton Volume Ft3: 0.9208
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 662.94
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983806355
• NLD HS Code: 8536901000000000000000
• USA HS Code: 8536904000000000000000
• USA HS Code 10digit: 8536904000
• ECCN Commodity Code: EAR99
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 3,000
