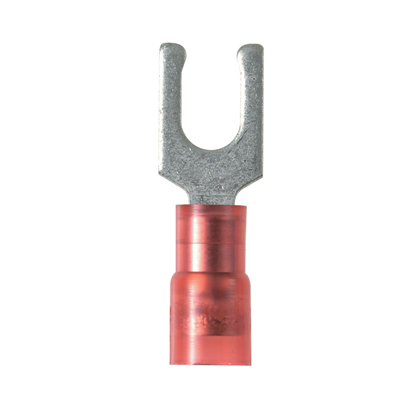

Panduit PN18-6LF-C Nylon Insulated Locking Fork Terminal

Specifications

• UNSPSC: 39121409
• Product Segment: IEI
• Fork Type: Locking Fork
• Insulation Material: Nylon
• Insulation Type: Nylon
• Maximum Wire Size (AWG): #18
• Maximum Copper Conductor Size (AWG STR): #18
• Maximum Copper Conductor Size (AWG): #18
• Minimum Wire Size (AWG): #22
• Maximum Copper Conductor Size (AWG SOL): #18
• Minimum Copper Conductor Size (AWG): #22
• Minimum Copper Conductor Size (AWG SOL): #22
• Minimum Copper Conductor Size (AWG STR): #22
• Maximum Metric Conductor Size (mm²): 1
• Minimum Metric Conductor Size (mm²): 0.5
• Stud Size: #6
• Wire Strip Length (mm): 5.5
• Wire Strip Length (In.): 0.22
• Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Maximum Voltage (kV): 0.6
• Maximum Voltage (V): 600
• Finish/Coating: Tin-Plated
• Base Material: Copper
• Color Code: Red
• Barrel Type: Beveled
• Barrel Length (In.): 0.41
• Barrel Length (mm): 10.4
• Flammability Rating: UL 587-H
• Insulation Diameter (In.): 0.15
• Insulation Diameter (mm): 3.7
• Maximum Operating Temperature (°C): 105
• Maximum Operating Temperature (°F): 221
• Seam Type: NA
• Maximum Wire Insulation Diameter (In.): 0.15
• Maximum Wire Insulation Diameter (mm): 3.7
• Minimum Wire Insulation Diameter (In.): 0.08
• Minimum Wire Insulation Diameter (mm): 2
• Stud Hole Size (mm): 3.5
• Stud Hole Size (In.): 1/7
• Overall Length (In.): 0.82
• Overall Length (mm): 20.8
• Overall Width (In.): 0.27
• Overall Width (mm): 6.9
• Tongue Length (In.): 0.41
• Tongue Length (mm): 10.4
• Tongue Thickness (mm): 0.8
• Tongue Thickness (In.): 0.03
• Tongue Width (In.): 0.27
• Tongue Width (mm): 6.9
• Sub Brand: Pan-Term
• Packaging Type: Bottle
• Product Type: Loose Piece Forks
• For Use With: CT-100, CT-100A, CT-400, CT-600-A, CT-1550, CT-1551, CT-2500, CT-160, CT-260

Packaging Details

• UPC: 07498380330
• GTIN Package: 00074983803309
• Standard Package Volume Ft3: 0.0074
• Standard Package Weight Pounds: 0.2600
• Std Package Height In: 1.75
• Std Package Height MM: 44.45
• Std Package Length In: 3.6
• Std Package Length MM: 91.44
• Std Package Width In: 1.8
• Std Package Width MM: 45.72
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 100
• GTIN Carton: 50074983803304
• Standard Carton Volume Ft3: 0.0074
• Standard Carton Weight Pounds: 1.3000
• Std Carton Height In: 3.7
• Std Carton Height MM: 93.98
• Std Carton Length In: 9.25
• Std Carton Length MM: 91.44
• Std Carton Width In: 2.2
• Std Carton Width MM: 55.88
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983803309
• NLD HS Code: 8536901000000000000000
• USA HS Code: 8536904000000000000000
• USA HS Code 10digit: 8536904000
• ECCN Commodity Code: EAR99
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 100
