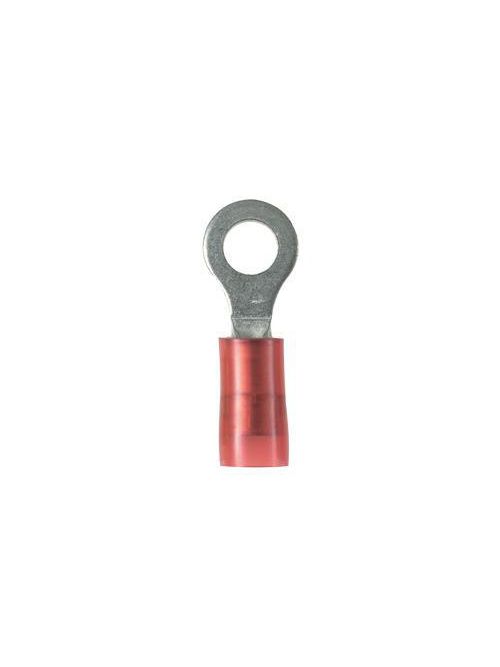

Panduit PN18-6R-M 22-18 AWG Nylon Insulated Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
$417.46/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PN18-6R-M
North Coast Part # 672487

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Stud Hole Size (In.): 1/8
  • Stud Size: #6
  • Stud Hole Size (mm): 3
  • Insulation Material: Nylon
  • Maximum Copper Conductor Size (AWG STR): NA
  • Minimum Wire Size (AWG): 18
  • Maximum Copper Conductor Size (AWG SOL): NA
  • Maximum Copper Conductor Size (AWG): NA
  • Maximum Wire Size (AWG): 22 AWG
  • Minimum Copper Conductor Size (AWG): NA
  • Minimum Copper Conductor Size (AWG SOL): NA
  • Minimum Copper Conductor Size (AWG STR): NA
  • Wire Strip Length (mm): 5.5
  • Wire Strip Length (In.): 0.21
  • Standards Met: UL Listed, UL 486A, UL 486B; CSA Certified C22.2 No. 65
  • Maximum Voltage (kV): 600
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Color Code: Red
  • Barrel Type: Grip Sleeve
  • CSA Temperature Rating (°C): 221
  • Flammability Rating: UL 94 V-2/UL 94 HB
  • Insulation Diameter (mm): 3.8
  • Insulation Diameter (In.): 0.15
  • Maximum Wire Insulation Diameter (mm): 3.7
  • Maximum Wire Insulation Diameter (In.): 0.15
  • Minimum Wire Insulation Diameter (mm): 3.8
  • Minimum Wire Insulation Diameter (In.): 0.15
  • Sub Brand: Pan-Term
  • Overall Length (In.): 0.79
  • Overall Length (mm): 20.1
  • Overall Width (mm): 6.4
  • Overall Width (In.): 0.25
  • Tongue Width (In.): 0.25
  • Tongue Width (mm): 6.4
  • Packaging Type: Box
  • Product Type: Loose Piece Ring Terminal

Packaging Details

  • UPC: 07498380003
  • GTIN Package: 00074983800032
  • Standard Package Volume Ft3: 0.0482
  • Standard Package Weight Pounds: 1.9000
  • Std Package Height In: 3.35
  • Std Package Height MM: 85.09
  • Std Package Length In: 7.15
  • Std Package Length MM: 181.61
  • Std Package Width In: 3.35
  • Std Package Width MM: 85.09
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.0482
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 181.61
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983800032
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000

Overview

UPC 07498380003
GTiN 00074983800032
Finish Tin-Plated
Width 0.25 in
Size M3.5
Color Red
Type Loose Piece Ring Terminal
Barrel Type Grip Sleeve
Material Copper
Country of Origin MX
Wire Size 22-18 AWG
Temperature Rating 221 F
Pkg Qty 1000
Family Brand Name Panduit
Carton Qty 0
TC Connection Standard
Overall Length 0.79 in
Color Coding Red
Enclosure Ring shape
Sub Brand Pan-Term
Voltage 600 Volt
UNSPSC 39121409
