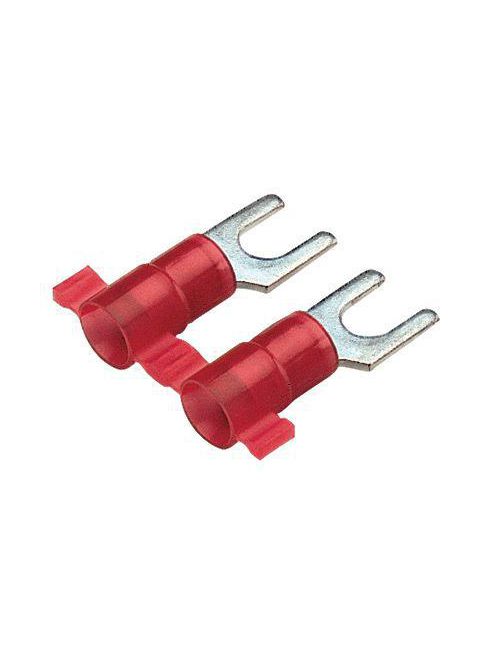

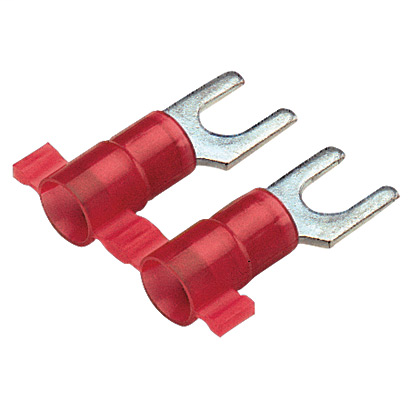

PAN PN18-8F-3K Fork, Nylon Ins,22-1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$341.53/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PN18-8F-3K
North Coast Part # 828208

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Fork Type: Standard
  • Insulation Material: Nylon
  • Insulation Type: Nylon
  • Maximum Wire Size (AWG): #18
  • Minimum Wire Size (AWG): #22
  • Maximum Copper Conductor Size (AWG STR): #18
  • Maximum Copper Conductor Size (AWG): #18
  • Maximum Copper Conductor Size (AWG SOL): #18
  • Minimum Copper Conductor Size (AWG STR): #22
  • Minimum Copper Conductor Size (AWG): #22
  • Minimum Copper Conductor Size (AWG SOL): #22
  • Maximum Metric Conductor Size (mm²): 1
  • Minimum Metric Conductor Size (mm²): 0.5
  • Wire Strip Length (mm): 5.5
  • Wire Strip Length (In.): 0.22
  • Stud Size: M4
  • Standards Met: UL Listed 587H, E52164
  • Maximum Voltage (kV): 0.6
  • Maximum Voltage (V): 600
  • Finish/Coating: Tin-Plated
  • Base Material: Copper
  • Color Code: Red
  • Barrel Type: Grip Sleeve
  • Barrel Length (In.): 0.42
  • Barrel Length (mm): 10.7
  • Flammability Rating: UL 587-H
  • Insulation Diameter (In.): 0.15
  • Insulation Diameter (mm): 3.8
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Seam Type: Butted
  • Maximum Wire Insulation Diameter (In.): 0.15
  • Maximum Wire Insulation Diameter (mm): 3.8
  • Stud Hole Size (mm): 4.2
  • Stud Hole Size (In.): 4/25
  • Overall Length (In.): 0.84
  • Overall Length (mm): 21.3
  • Overall Width (mm): 8.1
  • Overall Width (In.): 0.32
  • Tongue Length (In.): 0.42
  • Tongue Length (mm): 10.7
  • Sub Brand: Reel Smart
  • Tongue Thickness (mm): 0.8
  • Tongue Thickness (In.): 0.03
  • Tongue Width (mm): 7.1
  • Tongue Width (In.): 0.32
  • Packaging Type: Reel
  • Product Type: Terminals on a Reel
  • For Use With: CD9-1A, CD-800-1

Packaging Details

  • UPC: 07498380636
  • GTIN Package: 00074983806362
  • Standard Package Volume Ft3: 0.9208
  • Standard Package Weight Pounds: 9.0000
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 26.1
  • Std Package Length MM: 662.94
  • Std Package Width In: 25.4
  • Std Package Width MM: 645.16
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 3000
  • Standard Carton Volume Ft3: 0.9208
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 662.94
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983806362
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 3,000

Overview

UPC 07498380636
Item Long Description Fork Terminal, nylon insulated, metal insulation grip sleeve, 22 - 18 AWG wire range, #8 stud size.
GTiN 00074983806362
Finish Tin-Plated
Width 0.32 in
Size M4
Color Red
Type Terminals On A Reel
Barrel Type Grip Sleeve
Material Copper
Country of Origin MX
Wire Size 22-16 AWG
Temperature Rating 221 F
Pkg Qty 3000
Family Brand Name Panduit
TC Connection Standard
Max Operating Temperature 221 degrees F
Overall Length 0.84 in
Barrel Length 0.42 in
Color Coding Red
Enclosure Fork shape
Sub Brand Reel Smart
Voltage 600 Volt
UNSPSC 39121409
