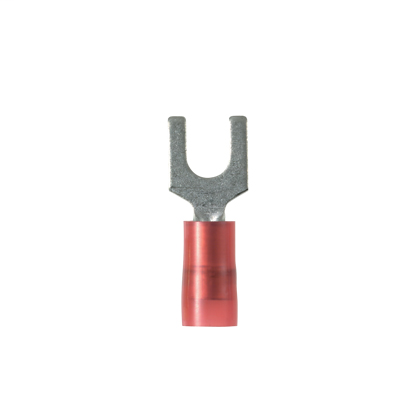

Panduit PN18-8F-M 22-18 AWG Nylon Insulated Fork Terminal

Specifications

• Product Segment: IEI
• UNSPSC: 39121409
• Fork Type: Standard
• Insulation Material: Nylon
• Insulation Type: Nylon
• Minimum Wire Size (AWG): #22
• Maximum Copper Conductor Size (AWG): #18
• Maximum Copper Conductor Size (AWG STR): #18
• Maximum Wire Size (AWG): #18
• Maximum Copper Conductor Size (AWG SOL): #18
• Minimum Copper Conductor Size (AWG SOL): #22
• Minimum Copper Conductor Size (AWG STR): #22
• Minimum Copper Conductor Size (AWG): #22
• Minimum Metric Conductor Size (mm²): 0.5
• Maximum Metric Conductor Size (mm²): 1
• Wire Strip Length (mm): 5.5
• Stud Size: #8
• Wire Strip Length (In.): 0.22
• Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Maximum Voltage (V): 600
• Maximum Voltage (kV): 0.6
• Finish/Coating: Tin-Plated
• Base Material: Copper
• Color Code: Red
• Barrel Type: Grip Sleeve
• Barrel Length (mm): 10.8
• Barrel Length (In.): 0.43
• Flammability Rating: UL 587-H
• Insulation Diameter (mm): 3.7
• Insulation Diameter (In.): 0.15
• Maximum Operating Temperature (°C): 105
• Maximum Operating Temperature (°F): 221
• Seam Type: Butted
• Maximum Wire Insulation Diameter (In.): 0.15
• Maximum Wire Insulation Diameter (mm): 3.7
• Minimum Wire Insulation Diameter (mm): 2
• Minimum Wire Insulation Diameter (In.): 0.08
• Stud Hole Size (In.): 4/25
• Stud Hole Size (mm): 4.2
• Overall Length (In.): 0.85
• Overall Length (mm): 21.6
• Overall Width (In.): 0.32
• Overall Width (mm): 8.1
• Tongue Length (In.): 0.43
• Tongue Length (mm): 10.8
• Tongue Thickness (mm): 0.8
• Tongue Thickness (In.): 0.03
• Tongue Width (In.): 0.32
• Tongue Width (mm): 8.1
• Sub Brand: Pan-Term
• Packaging Type: Box
• Product Type: Loose Piece Forks
• For Use With: CT-100, CT-160, CT-260

Packaging Details

• UPC: 07498380303
• GTIN Package: 00074983803033
• Standard Package Volume Ft3: 0.0482
• Standard Package Weight Pounds: 2.2000
• Std Package Height In: 3.35
• Std Package Height MM: 85.09
• Std Package Length In: 7.15
• Std Package Length MM: 181.61
• Std Package Width In: 3.35
• Std Package Width MM: 85.09
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 1000
• Standard Carton Volume Ft3: 0.0482
• Standard Carton Weight Pounds: 0.0000
• Std Carton Length MM: 181.61
• Std Ctn Qty: 0
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983803033
• NLD HS Code: 8536901000000000000000
• USA HS Code: 8536904000000000000000
• USA HS Code 10digit: 8536904000
• ECCN Commodity Code: EAR99
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 1,000
