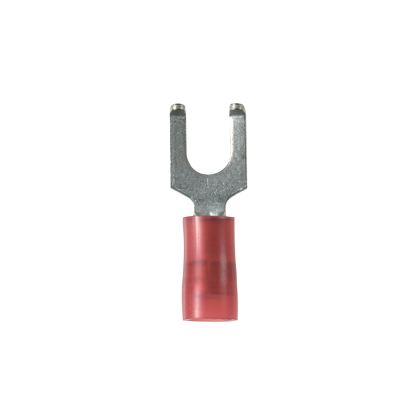

PAN PN18-8FF-C Fork,Flange,Nylon,22

Specifications

• Product Segment: IEI
• UNSPSC: 39121409
• Fork Type: Flanged Fork
• Insulation Material: Nylon
• Insulation Type: Nylon
• Maximum Copper Conductor Size (AWG SOL): #16
• Maximum Copper Conductor Size (AWG): #16
• Maximum Wire Size (AWG): #16
• Minimum Wire Size (AWG): #22
• Maximum Copper Conductor Size (AWG STR): #16
• Minimum Copper Conductor Size (AWG SOL): #22
• Minimum Copper Conductor Size (AWG): #22
• Minimum Copper Conductor Size (AWG STR): #22
• Maximum Metric Conductor Size (mm²): 1.5
• Minimum Metric Conductor Size (mm²): 0.5
• Wire Strip Length (In.): 0.22
• Wire Strip Length (mm): 5.5
• Stud Size: #8
• Standards Met: UL Listed 587H E52164; CSA Certified LR31212
• Maximum Voltage (kV): 0.6
• Maximum Voltage (V): 600
• Base Material: Copper
• Finish/Coating: Tin-Plated
• Color Code: Red
• Barrel Type: Grip Sleeve
• Barrel Length (mm): 11.2
• Barrel Length (In.): 0.44
• Flammability Rating: UL 587-H
• Insulation Diameter (In.): 0.14
• Insulation Diameter (mm): 3.5
• Maximum Operating Temperature (°C): 105
• Maximum Operating Temperature (°F): 221
• Seam Type: NA
• Maximum Wire Insulation Diameter (In.): 0.14
• Maximum Wire Insulation Diameter (mm): 3.5
• Minimum Wire Insulation Diameter (mm): 2
• Minimum Wire Insulation Diameter (In.): 0.08
• Stud Hole Size (mm): 4.2
• Stud Hole Size (In.): 4/25
• Overall Length (In.): 0.88
• Overall Length (mm): 22.4
• Overall Width (In.): 0.31
• Overall Width (mm): 7.9
• Tongue Length (In.): 0.44
• Tongue Length (mm): 11.2
• Tongue Thickness (In.): 0.03
• Tongue Thickness (mm): 0.8
• Sub Brand: Pan-Term
• Tongue Width (mm): 7.9
• Tongue Width (In.): 0.31
• Packaging Type: Bottle
• Product Type: Loose Piece Forks
• For use with: CT-550, CT-500, CT-1550, CT-1551, CT-400

Packaging Details

• UPC: 07498380602
• GTIN Package: 00074983806027
• Standard Package Volume Ft3: 0.0075
• Standard Package Weight Pounds: 0.2500
• Std Package Height In: 1.75
• Std Package Height MM: 44.45
• Std Package Length In: 3.6
• Std Package Length MM: 91.44
• Std Package Width In: 1.8
• Std Package Width MM: 45.72
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 100
• GTIN Carton: 50074983806022
• Standard Carton Volume Ft3: 0.0075
• Standard Carton Weight Pounds: 1.2500
• Std Carton Height In: 3.65
• Std Carton Height MM: 92.71
• Std Carton Length In: 9.25
• Std Carton Length MM: 91.44
• Std Carton Width In: 1.9
• Std Carton Width MM: 48.26
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983806027
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 100
