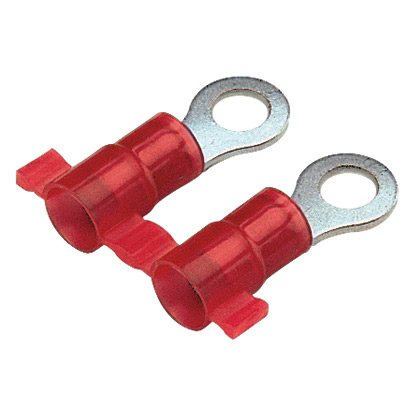

PAN PN18-8R-3K Ring,Nylon,22-18AWG,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$325.28/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PN18-8R-3K
North Coast Part # 828195

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Stud Hole Size (In.): 1/8
  • Stud Hole Size (mm): 3
  • Stud Size: #8
  • Insulation Material: Nylon
  • Maximum Wire Size (AWG): 22 AWG
  • Minimum Wire Size (AWG): 18
  • Maximum Copper Conductor Size (AWG SOL): NA
  • Maximum Copper Conductor Size (AWG): NA
  • Maximum Copper Conductor Size (AWG STR): NA
  • Minimum Copper Conductor Size (AWG SOL): NA
  • Minimum Copper Conductor Size (AWG): NA
  • Minimum Copper Conductor Size (AWG STR): NA
  • Wire Strip Length (mm): 5.5
  • Wire Strip Length (In.): 0.21
  • Standards Met: UL Listed, UL 486A, UL 486B; CSA Certified C22.2 No. 65
  • Base Material: Copper
  • Maximum Voltage (kV): 600
  • Finish/Coating: Tin-Plated
  • Color Code: Red
  • Barrel Type: Grip Sleeve
  • CSA Temperature Rating (°C): 221
  • Flammability Rating: UL 94 V-2/UL 94 HB
  • Insulation Diameter (In.): 0.15
  • Insulation Diameter (mm): 3.8
  • Maximum Wire Insulation Diameter (mm): 3.7
  • Maximum Wire Insulation Diameter (In.): 0.15
  • Minimum Wire Insulation Diameter (mm): 3.8
  • Minimum Wire Insulation Diameter (In.): 0.15
  • Sub Brand: Reel Smart
  • Overall Length (mm): 21.8
  • Overall Length (In.): 0.86
  • Overall Width (mm): 7.9
  • Overall Width (In.): 0.31
  • Tongue Width (In.): 0.25
  • Tongue Width (mm): 6.4
  • Packaging Type: Reel
  • Product Type: Loose Piece Ring Terminal

Packaging Details

  • UPC: 07498380620
  • GTIN Package: 00074983806201
  • Standard Package Volume Ft3: 0.9208
  • Standard Package Weight Pounds: 9.3000
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 26.1
  • Std Package Length MM: 662.94
  • Std Package Width In: 25.4
  • Std Package Width MM: 645.16
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 3000
  • Standard Carton Volume Ft3: 0.9208
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 662.94
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983806201
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 3,000

Overview

UPC 07498380620
Item Long Description Ring Terminal, nylon insulated, metal sleeve, 22 18 AWG, #8 stud size.
GTiN 00074983806201
Finish Tin-Plated
Width 0.31 in
Size M4
Color Red
Type Loose Piece Ring Terminal
Barrel Type Grip Sleeve
Material Copper
Country of Origin MX
Wire Size 22-18 AWG
Temperature Rating 221 F
Pkg Qty 3000
Family Brand Name Panduit
TC Connection Standard
Overall Length 0.86 in
Color Coding Red
Enclosure Ring shape
Sub Brand Reel Smart
Voltage 600 Volt
UNSPSC 39121409
