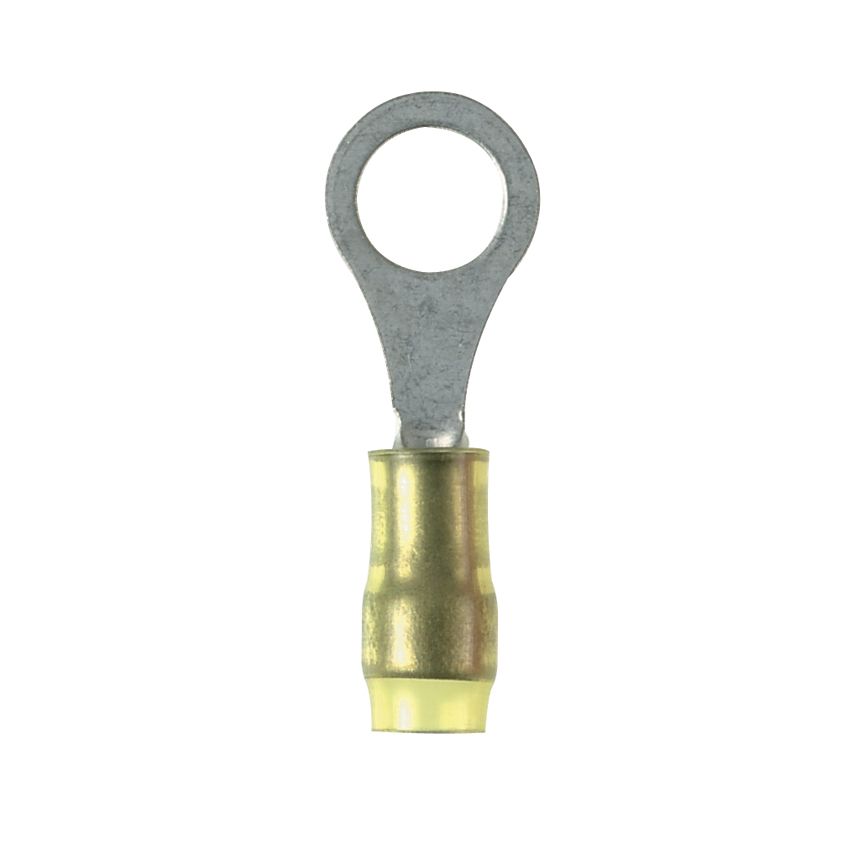

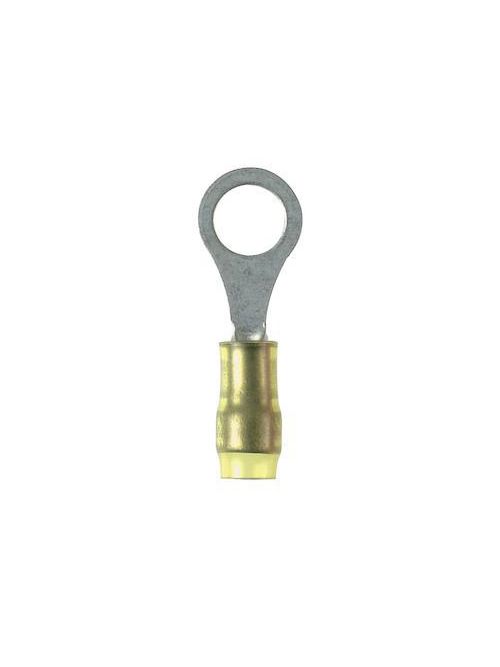

PAN PN22-6R-C Ring,Nylon Ins,26-22A
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$114.90/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PN22-6R-C
North Coast Part # 663574

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Stud Hole Size (In.): 1/8
  • Stud Size: #6
  • Stud Hole Size (mm): 3
  • Insulation Material: Nylon
  • Minimum Wire Size (AWG): 18
  • Maximum Copper Conductor Size (AWG STR): NA
  • Maximum Copper Conductor Size (AWG SOL): NA
  • Maximum Copper Conductor Size (AWG): NA
  • Maximum Wire Size (AWG): 22 AWG
  • Minimum Copper Conductor Size (AWG SOL): NA
  • Minimum Copper Conductor Size (AWG): NA
  • Minimum Copper Conductor Size (AWG STR): NA
  • Wire Strip Length (mm): 4.8
  • Wire Strip Length (In.): 0.18
  • Standards Met: UL Listed, UL 486A, UL 486B; CSA Certified C22.2 No. 65
  • Base Material: Copper
  • Maximum Voltage (kV): 600
  • Finish/Coating: Tin-Plated
  • Color Code: Yellow
  • Barrel Type: Grip Sleeve
  • CSA Temperature Rating (°C): 221
  • Flammability Rating: UL 94 V-2/UL 94 HB
  • Insulation Diameter (In.): 0.09
  • Insulation Diameter (mm): 2.3
  • Maximum Wire Insulation Diameter (In.): 0.15
  • Maximum Wire Insulation Diameter (mm): 3.7
  • Minimum Wire Insulation Diameter (mm): 3.8
  • Minimum Wire Insulation Diameter (In.): 0.15
  • Sub Brand: Pan-Term
  • Overall Length (In.): 0.69
  • Overall Length (mm): 17.5
  • Overall Width (In.): 0.2
  • Overall Width (mm): 5.1
  • Tongue Width (In.): 0.25
  • Tongue Width (mm): 6.4
  • Packaging Type: Bag
  • Product Type: Loose Piece Ring Terminal

Packaging Details

  • UPC: 07498380338
  • GTIN Package: 00074983803385
  • Standard Package Volume Ft3: 0.0064
  • Standard Package Weight Pounds: 0.1000
  • Std Package Height In: .65
  • Std Package Height MM: 16.51
  • Std Package Length In: 5
  • Std Package Length MM: 127
  • Std Package Width In: 3.25
  • Std Package Width MM: 82.55
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983803380
  • Standard Carton Volume Ft3: 0.0064
  • Standard Carton Weight Pounds: 1.0000
  • Std Carton Height In: 3.45
  • Std Carton Height MM: 87.63
  • Std Carton Length In: 8.15
  • Std Carton Length MM: 127
  • Std Carton Width In: 4.45
  • Std Carton Width MM: 113.03
  • Std Ctn Qty: 1000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: JP
  • RoHS Compliant: Compliant
  • EAN: 00074983803385
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 100
  • Pallet Quantity: 0
  • Pallet Volume: 0.000000
  • Pallet Weight: 0.0000

Overview

GTiN 00074983803385
Finish Tin-Plated
Width 0.2 in
Size M3.5
Color Yellow
Type Loose Piece Ring Terminal
Barrel Type Grip Sleeve
Material Copper
Country of Origin JP
Wire Size 26-22 AWG
Temperature Rating 221 F
Pkg Qty 100
Family Brand Name Panduit
TC Connection Standard
Overall Length 0.69 in
Color Coding Yellow
Enclosure Ring shape
Sub Brand Pan-Term
Product UPC 07498380338
Voltage 300 Volt
UNSPSC 39121409
