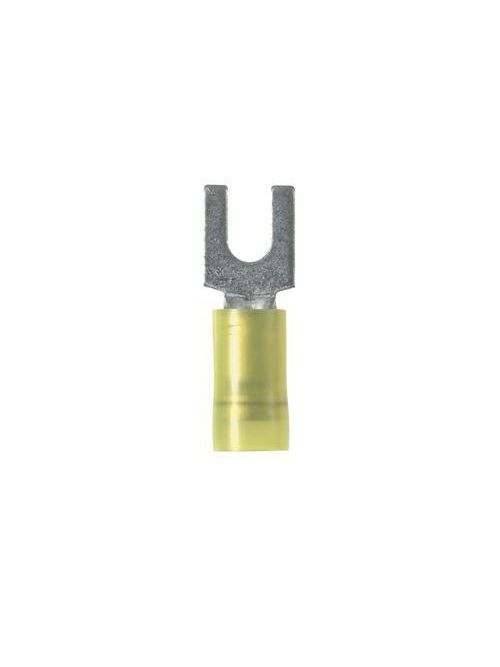

PAN PNF10-6F-L Fork,Fnl,NYL Ins,12-
Product image thumbnail 0
Product image thumbnail 1
$152.89/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PNF10-6F-L
North Coast Part # 550932

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Fork Type: Standard
  • Insulation Material: Nylon
  • Insulation Type: Nylon
  • Maximum Copper Conductor Size (AWG STR): #10
  • Maximum Copper Conductor Size (AWG SOL): NA
  • Maximum Wire Size (AWG): #10
  • Minimum Wire Size (AWG): #12
  • Maximum Copper Conductor Size (AWG): #10
  • Minimum Copper Conductor Size (AWG): #12
  • Minimum Copper Conductor Size (AWG STR): #12
  • Minimum Copper Conductor Size (AWG SOL): #12
  • Maximum Metric Conductor Size (mm²): 6
  • Minimum Metric Conductor Size (mm²): 4
  • Stud Size: #6
  • Wire Strip Length (mm): 7.1
  • Wire Strip Length (In.): 0.28
  • Standards Met: American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164; LR31212
  • Maximum Voltage (V): 600
  • Maximum Voltage (kV): 0.6
  • Finish/Coating: Tin-Plated
  • Base Material: Copper
  • Color Code: Yellow
  • Barrel Type: Funnel
  • Barrel Length (mm): 10.2
  • Barrel Length (In.): 0.4
  • Flammability Rating: UL 94 V-2/UL 94 HB
  • Insulation Diameter (mm): 5.8
  • Insulation Diameter (In.): 0.23
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Seam Type: NA
  • Maximum Wire Insulation Diameter (mm): 5.8
  • Maximum Wire Insulation Diameter (In.): 0.23
  • Minimum Wire Insulation Diameter (mm): 3
  • Minimum Wire Insulation Diameter (In.): 0.12
  • Outer Diameter (mm): 5.8
  • Outer Diameter (In.): 0.23
  • Stud Hole Size (In.): 4/25
  • Stud Hole Size (mm): 4.1
  • Inside Diameter (mm): 3
  • Inside Diameter (In.): 0.12
  • Overall Length (In.): 1.01
  • Overall Length (mm): 25.7
  • Overall Width (mm): 7.9
  • Overall Width (In.): 0.31
  • Tongue Length (In.): 0.61
  • Tongue Length (mm): 15.5
  • Tongue Thickness (mm): 1
  • Sub Brand: Pan-Term
  • Tongue Thickness (In.): 0.04
  • Tongue Width (mm): 7.9
  • Tongue Width (In.): 0.31
  • Packaging Type: Bottle
  • Product Type: Loose Piece Terminal
  • For Use With: CT-600-A (CT-550CH); CT-1550; CT-1551; CT-2500(CT-2550CH); CT-100A; CT-160; CT-260; CT-460; CT-100A‡

Packaging Details

  • UPC: 07498351354
  • GTIN Package: 00074983513543
  • Standard Package Volume Ft3: 0.0002
  • Standard Package Weight Pounds: 0.2000
  • Std Package Height In: 1.75
  • Std Package Height MM: 44.45
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.75
  • Std Package Width MM: 44.45
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983513548
  • Standard Carton Volume Ft3: 0.0002
  • Standard Carton Weight Pounds: 2.0000
  • Std Carton Height In: 3.8
  • Std Carton Height MM: 96.52
  • Std Carton Length In: 9.4
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 4.15
  • Std Carton Width MM: 105.41
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983513543
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 50

Overview

UPC 07498351354
GTiN 00074983513543
Finish Tin-Plated
Width 0.31 in
Size M3.5
Color Yellow
Type Loose Piece Terminal
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 12-10 AWG
Temperature Rating 221 F
Pkg Qty 50
Family Brand Name Panduit
Carton Qty 500
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 1.01 in
Barrel Length 0.4 in
Color Coding Yellow
Enclosure Fork shape
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage 600 Volt
UNSPSC 39121409
