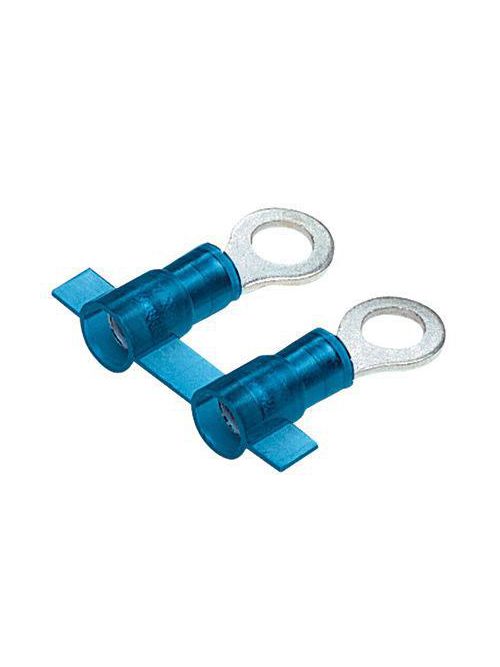

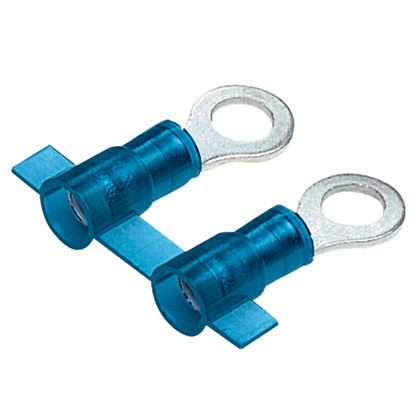

PAN PNF14-10R-3K Ring,Funnel,Nylon,
$397.84/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 3000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PNF14-10R-3K
North Coast Part # 666052

Specifications

  • Product Segment: IEI
  • Minimum Operating Temperature (°C): 105
  • Stud Hole Size (mm): 254
  • Stud Hole Size (In.): 10.00
  • Insulation Material: Nylon
  • Minimum Wire Size (AWG): 16
  • Maximum Copper Conductor Size (AWG): 16
  • Maximum Copper Conductor Size (AWG SOL): 16
  • Maximum Copper Conductor Size (AWG STR): 16
  • Maximum Wire Size (AWG): 14
  • Minimum Copper Conductor Size (AWG STR): 14
  • Minimum Copper Conductor Size (AWG SOL): 14
  • Minimum Copper Conductor Size (AWG): 16
  • Wire Strip Length (mm): 6.4
  • Wire Strip Length (In.): 0.25
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
  • Base Material: Copper
  • Maximum Voltage (V): 600
  • Maximum Voltage (kV): 0.6
  • Finish/Coating: Tinned
  • Color Code: Blue
  • Barrel Type: Grip Sleeve
  • Barrel Length (In.): 0.43
  • Barrel Length (mm): 10.8
  • CSA Temperature Rating (°C): 221
  • Flammability Rating: UL 94 V-2/UL 94 HB
  • Insulation Diameter (mm): 4.1
  • Insulation Diameter (In.): 0.16
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Maximum Wire Insulation Diameter (In.): 0.16
  • Maximum Wire Insulation Diameter (mm): 4.1
  • Outer Diameter (In.): 0.29
  • Outer Diameter (mm): 7.4
  • Sub Brand: Reel Smart
  • Overall Length (In.): 0.43
  • Overall Length (mm): 21.6
  • Overall Width (mm): 7.9
  • Overall Width (In.): 0.31
  • Tongue Length (mm): 10.8
  • Tongue Length (In.): 0.43
  • Tongue Thickness (mm): 0.8
  • Tongue Thickness (In.): 0.03
  • Tongue Width (In.): 0.31
  • Tongue Width (mm): 7.9
  • Packaging Type: Reel
  • Product Type: Ring Terminal

Packaging Details

  • UPC: 07498381154
  • GTIN Package: 00074983811540
  • Standard Package Volume Ft3: 0.9208
  • Standard Package Weight Pounds: 9.9000
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 26.1
  • Std Package Length MM: 662.94
  • Std Package Width In: 25.4
  • Std Package Width MM: 645.16
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 3000
  • Standard Carton Volume Ft3: 0.9208
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 662.94
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983811540
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 3000

Categories

Overview

UPC 07498381154
GTiN 00074983811540
Finish Tinned
Width 0.31 in
Color Blue
Type Ring Terminal
Barrel Type Grip Sleeve
Material Copper
Country of Origin MX
Wire Size 16-14 AWG
Temperature Rating 221 F
Pkg Qty 3000
Family Brand Name Panduit
Carton Qty 0
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 0.43 in
Barrel Length 0.43 in
Color Coding Blue
Enclosure Ring shape
Sub Brand Reel Smart
CA Prop65 Warning No
Size NA
Min Operating Temperature 105 C
Voltage null
