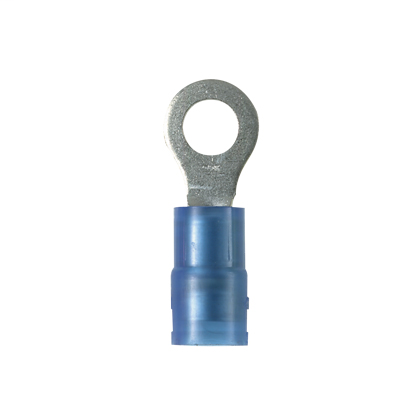

PAN PNF14-14R-M Ring,Funnel,Nylon,1
$594.88/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PNF14-14R-M
North Coast Part # 759202

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Minimum Operating Temperature (°C): 105
  • Stud Size: 1/4"
  • Insulation Material: Nylon
  • Maximum Copper Conductor Size (AWG STR): 14
  • Minimum Wire Size (AWG): 16
  • Maximum Wire Size (AWG): 14
  • Maximum Copper Conductor Size (AWG): 14
  • Maximum Copper Conductor Size (AWG SOL): 14
  • Minimum Copper Conductor Size (AWG STR): 16
  • Minimum Copper Conductor Size (AWG): 16
  • Minimum Copper Conductor Size (AWG SOL): 16
  • Wire Strip Length (In.): 0.21
  • Wire Strip Length (mm): 5.5
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
  • Maximum Voltage (kV): 1
  • Maximum Voltage (V): 1000
  • Base Material: Copper
  • Finish/Coating: Tinned
  • Color Code: Blue
  • Barrel Type: Grip Sleeve
  • Barrel Length (In.): 0.53
  • Barrel Length (mm): 13.5
  • CSA Temperature Rating (°C): 221
  • Flammability Rating: UL 94 V-2/UL 94 HB
  • Insulation Diameter (mm): 4.1
  • Insulation Diameter (In.): 0.16
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Maximum Wire Insulation Diameter (In.): 0.16
  • Maximum Wire Insulation Diameter (mm): 4.1
  • Minimum Wire Insulation Diameter (In.): 0.27
  • Sub Brand: Pan-Term
  • Overall Length (In.): 1.06
  • Overall Length (mm): 0.5
  • Overall Width (In.): 0.46
  • Overall Width (mm): 11.7
  • Tongue Length (mm): 13.5
  • Tongue Length (In.): 0.53
  • Tongue Thickness (In.): 0.32
  • Tongue Thickness (mm): 8.1
  • Tongue Width (In.): 0.46
  • Tongue Width (mm): 11.7
  • Packaging Type: Box
  • Product Type: Ring Terminal

Packaging Details

  • UPC: 07498381051
  • GTIN Package: 00074983810512
  • Standard Package Volume Ft3: 0.0681
  • Standard Package Weight Pounds: 3.2500
  • Std Package Height In: 3.4
  • Std Package Height MM: 86.36
  • Std Package Length In: 8.15
  • Std Package Length MM: 207.01
  • Std Package Width In: 4.4
  • Std Package Width MM: 111.76
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.0681
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 207.01
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983810512
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 1000

Categories

Overview

UPC 07498381051
GTiN 00074983810512
Finish Tinned
Width 0.46 in
Size 1/4"
Color Blue
Type Ring Terminal
Barrel Type Grip Sleeve
Material Copper
Country of Origin MX
Wire Size 14
Temperature Rating 221 F
Pkg Qty 1000
Family Brand Name Panduit
Carton Qty 0
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 1.06 in
Barrel Length 0.53 in
Color Coding Blue
Enclosure Ring shape
Sub Brand Pan-Term
CA Prop65 Warning No
Min Operating Temperature 105 C
Voltage null
UNSPSC 39121409
