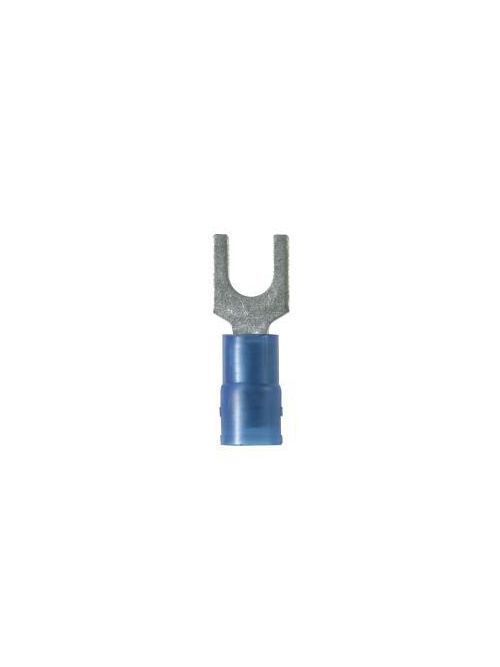

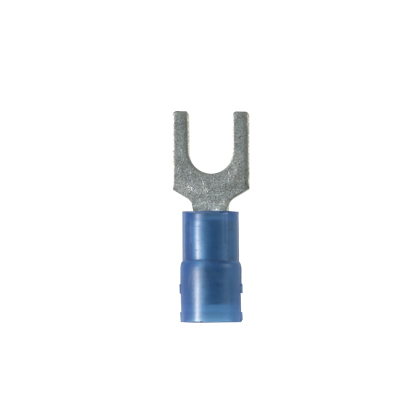

Panduit PNF14-6F-C Nylon Insulated Funnel Entry Fork Terminal
$124.04/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PNF14-6F-C
North Coast Part # 550931

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Fork Type: Standard
  • Insulation Type: Nylon
  • Insulation Material: Nylon
  • Maximum Copper Conductor Size (AWG SOL): NA
  • Maximum Wire Size (AWG): #14
  • Maximum Copper Conductor Size (AWG STR): #14
  • Maximum Copper Conductor Size (AWG): #14
  • Minimum Wire Size (AWG): #16
  • Minimum Copper Conductor Size (AWG SOL): NA
  • Minimum Copper Conductor Size (AWG): #16
  • Minimum Copper Conductor Size (AWG STR): #16
  • Maximum Metric Conductor Size (mm²): 2.5
  • Minimum Metric Conductor Size (mm²): 1.5
  • Stud Size: #6
  • Wire Strip Length (In.): 0.31
  • Wire Strip Length (mm): 7.9
  • Standards Met: American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164; LR31212
  • Maximum Voltage (kV): 0.6
  • Maximum Voltage (V): 600
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Color Code: Blue
  • Barrel Type: Funnel
  • Barrel Length (In.): 0.33
  • Barrel Length (mm): 8.4
  • Flammability Rating: UL 94 V-2/UL 94 HB
  • Insulation Diameter (In.): 0.16
  • Insulation Diameter (mm): 4.1
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Seam Type: NA
  • Maximum Wire Insulation Diameter (In.): 0.16
  • Maximum Wire Insulation Diameter (mm): 4.1
  • Outer Diameter (mm): 4.1
  • Outer Diameter (In.): 0.16
  • Stud Hole Size (mm): 4.1
  • Stud Hole Size (In.): 4/25
  • Inside Diameter (mm): 2
  • Inside Diameter (In.): 0.08
  • Overall Length (mm): 20.3
  • Overall Length (In.): 0.8
  • Overall Width (mm): 7.1
  • Overall Width (In.): 0.28
  • Tongue Length (mm): 11.9
  • Tongue Length (In.): 0.47
  • Tongue Thickness (In.): 0.03
  • Tongue Thickness (mm): 0.8
  • Tongue Width (In.): 0.28
  • Tongue Width (mm): 7.1
  • Sub Brand: Pan-Term
  • Packaging Type: Bottle
  • Product Type: Loose Piece Terminal
  • For Use With: CT-100A; CT-400; CT-460; CT-600-A (CT-550CH); CT-1550; CT-1551; CT-2500 (CT-2550CH); CT-160; CT-260

Packaging Details

  • UPC: 07498351350
  • GTIN Package: 00074983513505
  • Standard Package Volume Ft3: 0.0074
  • Standard Package Weight Pounds: 0.5000
  • Std Package Height In: 1.8
  • Std Package Height MM: 45.72
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.8
  • Std Package Width MM: 45.72
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983513500
  • Standard Carton Volume Ft3: 0.0074
  • Standard Carton Weight Pounds: 2.5000
  • Std Carton Height In: 3.75
  • Std Carton Height MM: 95.25
  • Std Carton Length In: 9.4
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 1.95
  • Std Carton Width MM: 49.53
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983513505
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Overview

UPC 07498351350
GTiN 00074983513505
Finish Tin-Plated
Width 0.28 in
Size #6
Color Blue
Type Loose Piece Terminal
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 14
Temperature Rating 221 F
Pkg Qty 100
Family Brand Name Panduit
Carton Qty 500
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 0.8 in
Barrel Length 0.33 in
Color Coding Blue
Enclosure Fork shape
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage null
