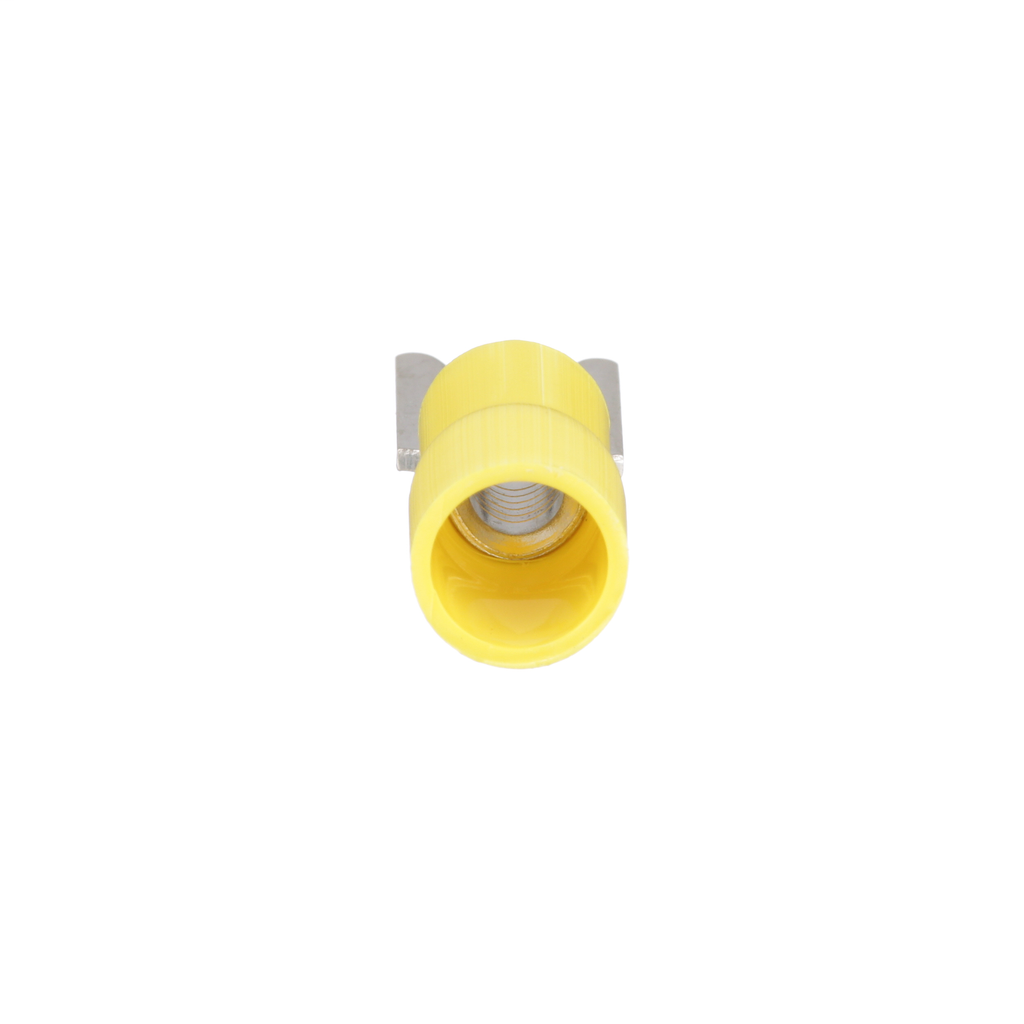

Panduit PV10-10LFX-L Expanded Vinyl Insulated Locking Fork Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
$113.21/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV10-10LFX-L
North Coast Part # 683618

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Fork Type: Locking Fork
  • Insulation Material: Vinyl
  • Insulation Type: Vinyl
  • Maximum Wire Size (AWG): #10
  • Minimum Wire Size (AWG): #12
  • Maximum Copper Conductor Size (AWG SOL): NA
  • Maximum Copper Conductor Size (AWG STR): #10
  • Maximum Copper Conductor Size (AWG): #10
  • Minimum Copper Conductor Size (AWG): #12
  • Minimum Copper Conductor Size (AWG STR): #12
  • Minimum Copper Conductor Size (AWG SOL): NA
  • Minimum Metric Conductor Size (mm²): 4
  • Maximum Metric Conductor Size (mm²): 6
  • Stud Size: #10
  • Wire Strip Length (mm): 7.9
  • Wire Strip Length (In.): 0.31
  • Standards Met: American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164; LR312120
  • Maximum Voltage (V): 600
  • Maximum Voltage (kV): 0.6
  • Finish/Coating: Tin-Plated
  • Base Material: Copper
  • Color Code: Yellow
  • Barrel Type: Funnel
  • Barrel Length (mm): 10.9
  • Barrel Length (In.): 0.43
  • CSA Temperature Rating (°C): 105
  • Flammability Rating: UL 94 V-0
  • Insulation Diameter (mm): 6.4
  • Insulation Diameter (In.): 0.25
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Seam Type: Brazed
  • Maximum Wire Insulation Diameter (mm): 6.4
  • Maximum Wire Insulation Diameter (In.): 0.25
  • Outer Diameter (In.): 0.25
  • Outer Diameter (mm): 6.4
  • Stud Hole Size (mm): 4.8
  • Stud Hole Size (In.): 1/5
  • Overall Length (In.): 1.12
  • Overall Length (mm): 28.4
  • Overall Width (mm): 8.6
  • Overall Width (In.): 0.34
  • Tongue Length (In.): 0.69
  • Tongue Length (mm): 17.5
  • Tongue Thickness (In.): 0.04
  • Tongue Thickness (mm): 1
  • Tongue Width (mm): 8.6
  • Tongue Width (In.): 0.34
  • Sub Brand: Pan-Term
  • Packaging Type: Bottle
  • Product Type: Loose Piece Terminal
  • For Use With: CT-550; CT-1551; CT-1550

Packaging Details

  • UPC: 07498380836
  • GTIN Package: 00074983808366
  • Standard Package Volume Ft3: 0.0049
  • Standard Package Weight Pounds: 0.2400
  • Std Package Height In: 1.9
  • Std Package Height MM: 48.26
  • Std Package Length In: 4.3
  • Std Package Length MM: 109.22
  • Std Package Width In: 1.95
  • Std Package Width MM: 49.53
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983808361
  • Standard Carton Volume Ft3: 0.0049
  • Standard Carton Weight Pounds: 2.4000
  • Std Carton Height In: 4.4
  • Std Carton Height MM: 111.76
  • Std Carton Length In: 10
  • Std Carton Length MM: 109.22
  • Std Carton Width In: 4.25
  • Std Carton Width MM: 107.95
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983808366
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 50

Overview

UPC 07498380836
GTiN 00074983808366
Finish Tin-Plated
Width 0.34 in
Color Yellow
Type Loose Piece Terminal
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 10
Temperature Rating 221 F
Pkg Qty 50
Family Brand Name Panduit
Carton Qty 500
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 1.12 in
Barrel Length 0.43 in
Color Coding Yellow
Enclosure Fork shape
Sub Brand Pan-Term
Size #10
Voltage null
