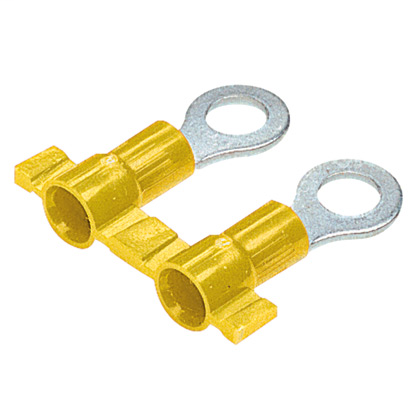

Panduit PV10-10RB-2K 12-10 AWG Vinyl Insulated Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$347.83/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV10-10RB-2K
North Coast Part # 664502

Specifications

  • Product Segment: IEI
  • Insulation Material: Vinyl
  • Maximum Copper Conductor Size (AWG SOL): #10
  • Maximum Wire Size (AWG): #10
  • Minimum Wire Size (AWG): #12
  • Maximum Copper Conductor Size (AWG STR): #10
  • Minimum Copper Conductor Size (AWG SOL): #12
  • Minimum Copper Conductor Size (AWG STR): #12
  • Maximum Metric Conductor Size (mm²): 6
  • Minimum Metric Conductor Size (mm²): 4
  • Wire Strip Length (mm): 8.7
  • Wire Strip Length (In.): 11/32
  • Standards Met: UL 486A/B, and CSA 22.2 No.65
  • Maximum Voltage (V): 600
  • Base Material: Copper
  • Maximum Voltage (kV): 0.6
  • Finish/Coating: Tin-Plated
  • Color Code: Yellow
  • Barrel Type: Funnel
  • Flammability Rating: UL94V-0
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Maximum Wire Insulation Diameter (mm): 5.8
  • Maximum Wire Insulation Diameter (In.): 0.23
  • Sub Brand: Reel Smart™
  • Overall Length (In.): 1.02
  • Overall Length (mm): 25.9
  • Overall Width (In.): 0.31
  • Overall Width (mm): 7.9
  • Tongue Thickness (In.): 0.03
  • Tongue Thickness (mm): 0.8
  • Tongue Width (In.): 0.31
  • Tongue Width (mm): 7.9
  • Packaging Type: Reel
  • Product Type: Ring Terminal on Reel
  • For Use With: Crimp press with CA9 (CD9-3B) or CA-800EZ (CD800-3) applicator

Packaging Details

  • UPC: 07498380361
  • GTIN Package: 00074983803613
  • Standard Package Volume Ft3: 0.9208
  • Standard Package Weight Pounds: 10.8000
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 26.1
  • Std Package Length MM: 662.94
  • Std Package Width In: 25.4
  • Std Package Width MM: 645.16
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 2000
  • Standard Carton Volume Ft3: 0.9208
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 662.94
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983803613
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 2,000
  • Pallet Quantity: 32,000
  • Pallet Volume: 0.000000
  • Pallet Weight: 172.8000

Overview

UPC 07498380361
Item Long Description The PV10-10RB-2K Reel Smart Terminal is a continuously molded and fully insulated ring terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength
GTiN 00074983803613
Finish Tinned
Width 0.31 in
Color Yellow
Type Ring Terminal On Reel
Barrel Type Grip Sleeve
Material Copper
Country of Origin MX
Wire Size 12-10 AWG
Temperature Rating 221 F
Pkg Qty 2000
Family Brand Name Panduit
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 1.02 in
Color Coding Yellow
Enclosure Ring shape
Sub Brand Reel Smart
Size NA
Min Operating Temperature 105 C
Voltage 600 Volt
