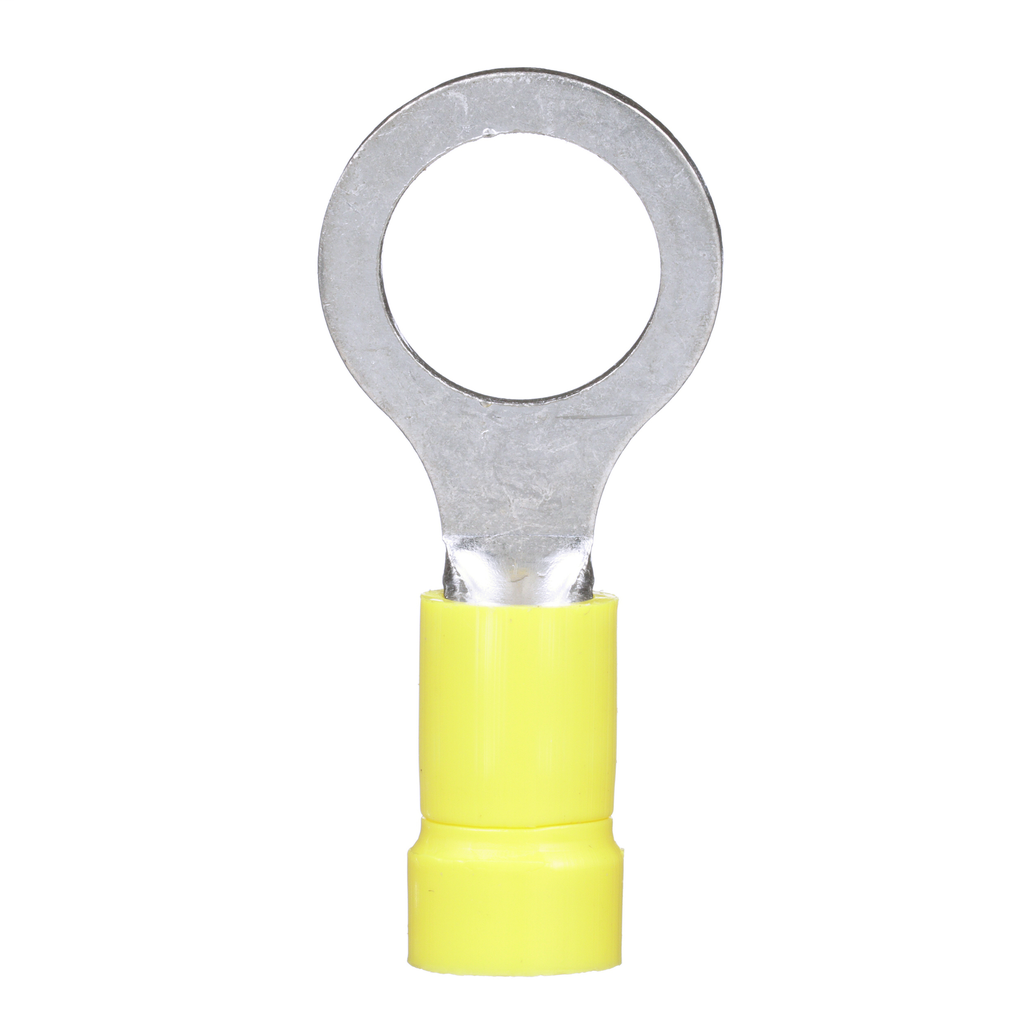

Panduit PV10-38R-D 12-10 AWG Vinyl Insulated Ring Terminal
$412.63/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 500 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV10-38R-D
North Coast Part # 15234

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Stud Hole Size (In.): 39/100
  • Stud Size: 3/8"
  • Stud Hole Size (mm): 9.9
  • Insulation Material: Vinyl
  • Maximum Wire Size (AWG): #10
  • Minimum Wire Size (AWG): #12
  • Maximum Copper Conductor Size (AWG): #10
  • Maximum Copper Conductor Size (AWG STR): #10
  • Maximum Copper Conductor Size (AWG SOL): #10
  • Minimum Copper Conductor Size (AWG): #12
  • Minimum Copper Conductor Size (AWG STR): #12
  • Minimum Copper Conductor Size (AWG SOL): #12
  • Minimum Metric Conductor Size (mm²): 4
  • Maximum Metric Conductor Size (mm²): 6
  • Wire Strip Length (In.): 0.31
  • Wire Strip Length (mm): 7.9
  • Standards Met: CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B
  • Base Material: Copper
  • Maximum Voltage (V): 300
  • Maximum Voltage (kV): 0.3
  • Finish/Coating: Tin-Plated
  • Color Code: Yellow
  • Barrel Type: Funnel
  • Barrel Length (mm): 16.6
  • Barrel Length (In.): 0.66
  • Flammability Rating: UL 94 V-0
  • Insulation Diameter (mm): 5.7
  • Insulation Diameter (In.): 0.23
  • Maximum Operating Temperature (°C): 75
  • Maximum Operating Temperature (°F): 167
  • Maximum Wire Insulation Diameter (mm): 5.7
  • Maximum Wire Insulation Diameter (In.): 0.23
  • Sub Brand: Pan-Term
  • Overall Length (In.): 1.31
  • Overall Length (mm): 33.3
  • Overall Width (mm): 14.7
  • Overall Width (In.): 0.58
  • Tongue Length (In.): 0.66
  • Tongue Length (mm): 16.6
  • Tongue Thickness (In.): 0.04
  • Tongue Thickness (mm): 1
  • Tongue Width (In.): 0.58
  • Tongue Width (mm): 14.7
  • Packaging Type: Box
  • Product Type: Loose Piece Ring Terminal
  • For use with: CT-100

Packaging Details

  • UPC: 07498380139
  • GTIN Package: 00074983801398
  • Standard Package Volume Ft3: 0.0697
  • Standard Package Weight Pounds: 2.7000
  • Std Package Height In: 3.45
  • Std Package Height MM: 87.63
  • Std Package Length In: 8.2
  • Std Package Length MM: 208.28
  • Std Package Width In: 4.4
  • Std Package Width MM: 111.76
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 500
  • Standard Carton Volume Ft3: 0.0697
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 208.28
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983801398
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 500

Overview

UPC 07498380139
GTiN 00074983801398
Finish Tin-Plated
Width 0.58 in
Size M10
Color Yellow
Type Loose Piece Ring Terminal
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 12-10 AWG
Temperature Rating 221 F
Pkg Qty 500
Family Brand Name Panduit
Carton Qty 0
TC Connection Funnel Entry
Max Operating Temperature 167 degrees F
Overall Length 1.31 in
Barrel Length 0.66 in
Color Coding Yellow
Enclosure Ring shape
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage null
UNSPSC 39121409
