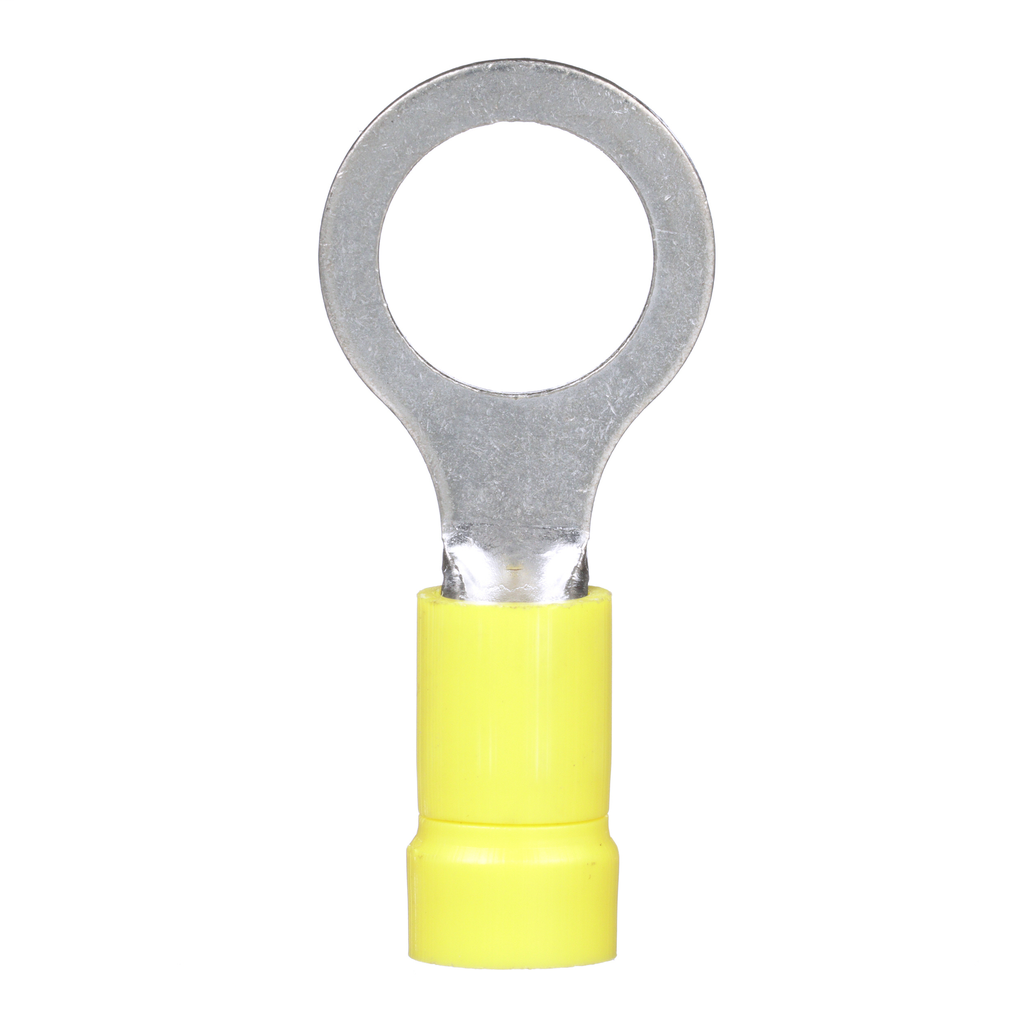

Panduit PV10-38R-L 12-10 AWG Vinyl Insulated Ring Terminal

Specifications

• Product Segment: IEI
• Stud Hole Size (In.): 39/100
• Stud Hole Size (mm): 9.9
• Insulation Material: Vinyl
• Maximum Copper Conductor Size (AWG): #10
• Maximum Copper Conductor Size (AWG STR): #10
• Maximum Copper Conductor Size (AWG SOL): #10
• Maximum Wire Size (AWG): #10
• Minimum Wire Size (AWG): #12
• Minimum Copper Conductor Size (AWG): #12
• Minimum Copper Conductor Size (AWG SOL): #12
• Minimum Copper Conductor Size (AWG STR): #12
• Minimum Metric Conductor Size (mm²): 4
• Maximum Metric Conductor Size (mm²): 6
• Wire Strip Length (In.): 0.31
• Wire Strip Length (mm): 7.9
• Standards Met: CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B
• Base Material: Copper
• Maximum Voltage (V): 300
• Maximum Voltage (kV): 0.3
• Finish/Coating: Tin-Plated
• Color Code: Yellow
• Barrel Type: Funnel Entry
• Barrel Length (mm): 16.6
• Barrel Length (In.): 0.66
• Flammability Rating: UL 94 V-0
• Insulation Diameter (mm): 5.7
• Insulation Diameter (In.): 0.23
• Maximum Operating Temperature (°C): 75
• Maximum Operating Temperature (°F): 167
• Maximum Wire Insulation Diameter (mm): 5.7
• Maximum Wire Insulation Diameter (In.): 0.23
• Overall Length (In.): 1.31
• Overall Length (mm): 33.3
• Overall Width (mm): 14.7
• Overall Width (In.): 0.58
• Tongue Length (mm): 16.6
• Tongue Length (In.): 0.66
• Tongue Thickness (In.): 0.04
• Tongue Thickness (mm): 1
• Tongue Width (In.): 0.58
• Tongue Width (mm): 14.7
• Sub Brand: Pan-Term
• Packaging Type: Bottle
• Product Type: Loose Piece Ring Terminal
• For Use With: CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500

Packaging Details

• UPC: 07498380138
• GTIN Package: 00074983801381
• Standard Package Volume Ft3: 0.0049
• Standard Package Weight Pounds: 0.2950
• Std Package Height In: 1.9
• Std Package Height MM: 48.26
• Std Package Length In: 4.3
• Std Package Length MM: 109.22
• Std Package Width In: 1.9
• Std Package Width MM: 48.26
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 50
• GTIN Carton: 50074983801386
• Standard Carton Volume Ft3: 0.0049
• Standard Carton Weight Pounds: 2.9500
• Std Carton Height In: 4.35
• Std Carton Height MM: 110.49
• Std Carton Length In: 9.95
• Std Carton Length MM: 109.22
• Std Carton Width In: 4.3
• Std Carton Width MM: 109.22
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983801381
• NLD HS Code: 8536901000000000000000
• USA HS Code: 8536904000000000000000
• USA HS Code 10digit: 8536904000
• ECCN Commodity Code: EAR99
• REACH Status: False
• California Pro65 Cancer: No
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Lead Content Indicator: N
• Restricted Use of Hazardous Substances: N
• Hazardous Material Flag: N
• Min Order Qty: 50
