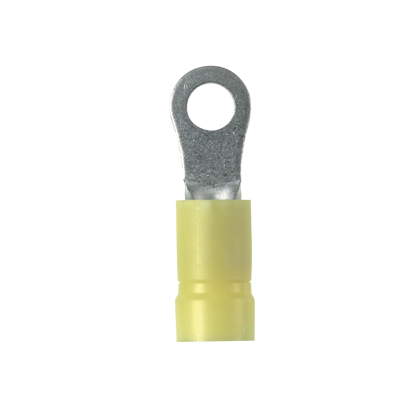

Panduit PV10-56R-L 12-10 AWG Vinyl Insulated Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$109.84/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV10-56R-L
North Coast Part # 601461

Specifications

  • Product Segment: IEI
  • Stud Hole Size (In.): 5/16
  • Insulation Material: Vinyl
  • Maximum Wire Size (AWG): #10
  • Maximum Copper Conductor Size (AWG STR): #10
  • Minimum Wire Size (AWG): #12
  • Maximum Copper Conductor Size (AWG SOL): #10
  • Minimum Copper Conductor Size (AWG STR): #12
  • Minimum Copper Conductor Size (AWG SOL): #12
  • Maximum Metric Conductor Size (mm²): 6
  • Minimum Metric Conductor Size (mm²): 4
  • Wire Strip Length (mm): 7.9
  • Wire Strip Length (In.): 5/16
  • Standards Met: UL 486A/B, and CSA 22.2 No.65
  • Base Material: Copper
  • Maximum Voltage (V): 600
  • Maximum Voltage (kV): 0.6
  • Finish/Coating: Tin-Plated
  • Color Code: Yellow
  • Barrel Type: Funnel
  • Flammability Rating: UL94V-0
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Maximum Wire Insulation Diameter (mm): 5.8
  • Maximum Wire Insulation Diameter (In.): 0.23
  • Seam Type: Brazed
  • Sub Brand: Pan-Term®
  • Overall Length (mm): 31.2
  • Overall Length (In.): 1.23
  • Overall Width (In.): 0.52
  • Overall Width (mm): 13.2
  • Tongue Thickness (In.): 0.04
  • Tongue Thickness (mm): 1
  • Tongue Width (In.): 0.52
  • Tongue Width (mm): 13.2
  • Packaging Type: Bottle
  • Product Type: Loose Piece Ring Terminal
  • For Use With: CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500

Packaging Details

  • UPC: 07498380136
  • GTIN Package: 00074983801367
  • Standard Package Volume Ft3: 0.0049
  • Standard Package Weight Pounds: 0.2900
  • Std Package Height In: 1.9
  • Std Package Height MM: 48.26
  • Std Package Length In: 4.3
  • Std Package Length MM: 109.22
  • Std Package Width In: 1.95
  • Std Package Width MM: 49.53
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983801362
  • Standard Carton Volume Ft3: 0.0049
  • Standard Carton Weight Pounds: 2.9000
  • Std Carton Height In: 4.4
  • Std Carton Height MM: 111.76
  • Std Carton Length In: 10.15
  • Std Carton Length MM: 109.22
  • Std Carton Width In: 4.25
  • Std Carton Width MM: 107.95
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983801367
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 50
  • Pallet Quantity: 0
  • Pallet Volume: 0.000000
  • Pallet Weight: 0.0000

Overview

UPC 07498380136
Item Long Description The PV10-56R-L Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
GTiN 00074983801367
Finish Tin-Plated
Width 0.52 in
Size M8
Color Yellow
Type Loose Piece Ring Terminal
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 12-10 AWG
Temperature Rating 221 F
Pkg Qty 50
Family Brand Name Panduit
TC Connection Funnel Entry
Max Operating Temperature 167 degrees F
Overall Length 1.23 in
Barrel Length 0.62 in
Color Coding Yellow
Enclosure Ring shape
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage 600 Volt
