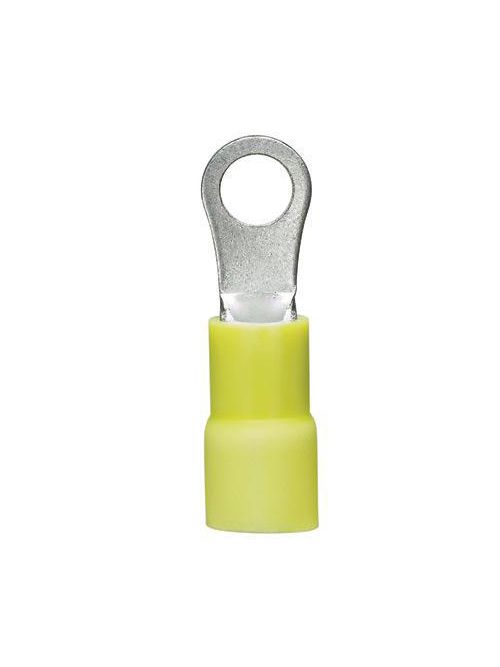

PAN PV10-56RX-L RingTerm,Vyl,12,10A

Specifications

• Product Segment: IEI
• UNSPSC: 39121409
• Stud Hole Size (mm): 8.4
• Stud Size: 5/16"
• Stud Hole Size (In.): 33/100
• Insulation Material: Vinyl
• Maximum Copper Conductor Size (AWG STR): #10
• Maximum Wire Size (AWG): #10
• Maximum Copper Conductor Size (AWG SOL): #10
• Maximum Copper Conductor Size (AWG): #10
• Minimum Wire Size (AWG): #12
• Minimum Copper Conductor Size (AWG): #12
• Minimum Copper Conductor Size (AWG SOL): #12
• Minimum Copper Conductor Size (AWG STR): #12
• Maximum Metric Conductor Size (mm²): 6
• Minimum Metric Conductor Size (mm²): 4
• Wire Strip Length (In.): 0.31
• Wire Strip Length (mm): 7.9
• Standards Met: CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B
• Maximum Voltage (kV): 0.3
• Maximum Voltage (V): 300
• Base Material: Copper
• Finish/Coating: Tin-Plated
• Color Code: Yellow
• Barrel Length (mm): 16.4
• Barrel Length (In.): 0.65
• Flammability Rating: UL 94 V-0
• Insulation Diameter (mm): 6.4
• Insulation Diameter (In.): 0.25
• Maximum Operating Temperature (°F): 167
• Maximum Operating Temperature (°C): 75
• Maximum Wire Insulation Diameter (mm): 6.4
• Maximum Wire Insulation Diameter (In.): 0.25
• Sub Brand: Pan-Term
• Overall Length (mm): 32.8
• Overall Length (In.): 1.29
• Overall Width (mm): 13.2
• Overall Width (In.): 0.52
• Tongue Length (mm): 16.4
• Tongue Length (In.): 0.65
• Tongue Thickness (mm): 1
• Tongue Thickness (In.): 0.04
• Tongue Width (In.): 0.52
• Tongue Width (mm): 13.2
• Packaging Type: Bottle
• Product Type: Loose Piece Ring Terminal
• For Use With: CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500

Packaging Details

• UPC: 07498380176
• GTIN Package: 00074983801763
• Standard Package Volume Ft3: 0.0068
• Standard Package Weight Pounds: 0.2750
• Std Package Height In: 1.75
• Std Package Height MM: 44.45
• Std Package Length In: 3.6
• Std Package Length MM: 91.44
• Std Package Width In: 1.8
• Std Package Width MM: 45.72
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 50
• GTIN Carton: 50074983801768
• Standard Carton Volume Ft3: 0.0068
• Standard Carton Weight Pounds: 2.7500
• Std Carton Height In: 4.4
• Std Carton Height MM: 111.76
• Std Carton Length In: 10.3
• Std Carton Length MM: 91.44
• Std Carton Width In: 4.05
• Std Carton Width MM: 102.87
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983801763
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 50
