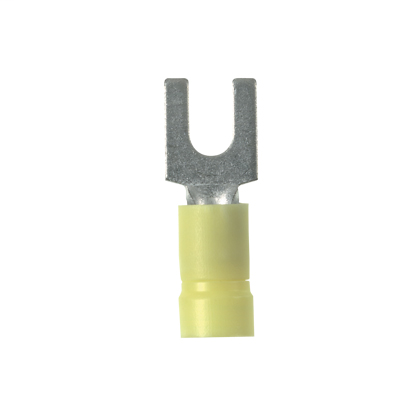

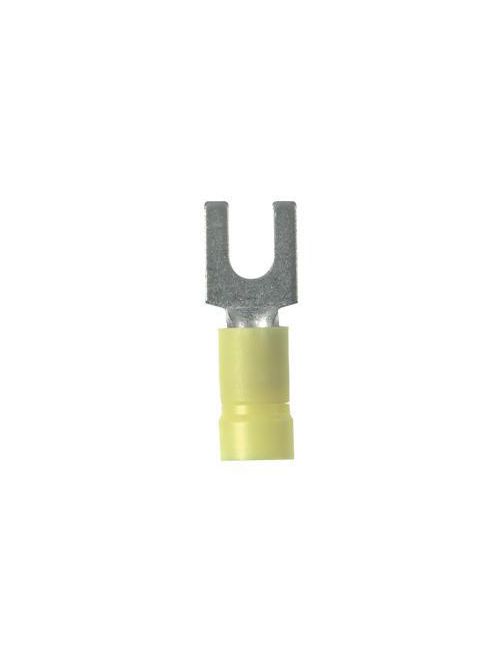

Panduit PV10-6F-D 14-10 AWG Vinyl Insulated Fork Terminal
$371.07/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 500 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV10-6F-D
North Coast Part # 1429690

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Fork Type: Standard
  • Insulation Material: Vinyl
  • Insulation Type: Vinyl
  • Minimum Wire Size (AWG): #14
  • Maximum Copper Conductor Size (AWG SOL): #10
  • Maximum Copper Conductor Size (AWG STR): #10
  • Maximum Wire Size (AWG): #10
  • Maximum Copper Conductor Size (AWG): #10
  • Minimum Copper Conductor Size (AWG STR): #14
  • Minimum Copper Conductor Size (AWG SOL): #14
  • Minimum Copper Conductor Size (AWG): #14
  • Minimum Metric Conductor Size (mm²): 2.5
  • Maximum Metric Conductor Size (mm²): 6
  • Stud Size: #6
  • Wire Strip Length (In.): 0.31
  • Wire Strip Length (mm): 7.9
  • Standards Met: American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164; LR312120
  • Maximum Voltage (kV): 0.6
  • Maximum Voltage (V): 600
  • Finish/Coating: Tin-Plated
  • Base Material: Copper
  • Color Code: Yellow
  • Barrel Type: Funnel
  • Barrel Length (mm): 10.3
  • Barrel Length (In.): 0.41
  • Flammability Rating: UL 94 V-0
  • Insulation Diameter (mm): 5.7
  • Insulation Diameter (In.): 0.23
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Seam Type: Brazed
  • Maximum Wire Insulation Diameter (In.): 0.23
  • Maximum Wire Insulation Diameter (mm): 5.7
  • Outer Diameter (In.): 0.23
  • Outer Diameter (mm): 5.7
  • Stud Hole Size (In.): 7/50
  • Stud Hole Size (mm): 3.6
  • Overall Length (In.): 1.01
  • Overall Length (mm): 25.7
  • Overall Width (In.): 0.31
  • Overall Width (mm): 7.9
  • Tongue Length (In.): 0.61
  • Tongue Length (mm): 15.4
  • Sub Brand: Pan-Term
  • Tongue Thickness (mm): 1
  • Tongue Thickness (In.): 0.04
  • Tongue Width (mm): 7.9
  • Tongue Width (In.): 0.31
  • Packaging Type: Box
  • Product Type: Loose Piece Terminal
  • For use with: CT-550; CT-1550; CT-1551; CT-100

Packaging Details

  • UPC: 07498380437
  • GTIN Package: 00074983804375
  • Standard Package Volume Ft3: 0.0681
  • Standard Package Weight Pounds: 2.4000
  • Std Package Height In: 3.4
  • Std Package Height MM: 86.36
  • Std Package Length In: 7.15
  • Std Package Length MM: 181.61
  • Std Package Width In: 3.4
  • Std Package Width MM: 86.36
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 500
  • Standard Carton Volume Ft3: 0.0681
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 181.61
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983804375
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 500

Categories

Overview

UPC 07498380437
GTiN 00074983804375
Finish Tin-Plated
Width 0.31 in
Size #6
Color Yellow
Type Loose Piece Terminal
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 10
Temperature Rating 221 F
Pkg Qty 500
Family Brand Name Panduit
Carton Qty 0
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 1.01 in
Barrel Length 0.41 in
Color Coding Yellow
Enclosure Fork shape
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage null
UNSPSC 39121409
