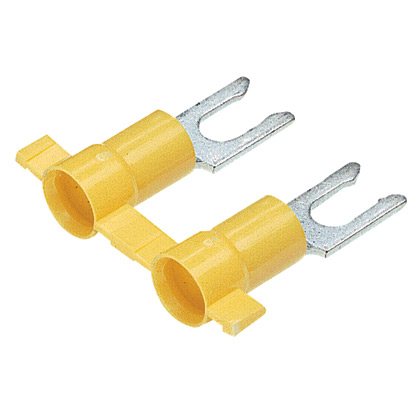

PAN PV10-6LFB-2K LkgForkTerm,Vyl,12
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$350.07/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV10-6LFB-2K
North Coast Part # 666058

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Fork Type: Locking Fork
  • Insulation Type: Vinyl
  • Insulation Material: Vinyl
  • Maximum Copper Conductor Size (AWG SOL): #10
  • Maximum Copper Conductor Size (AWG STR): #10
  • Minimum Wire Size (AWG): #12
  • Maximum Wire Size (AWG): #10
  • Maximum Copper Conductor Size (AWG): #10
  • Minimum Copper Conductor Size (AWG STR): #12
  • Minimum Copper Conductor Size (AWG SOL): #12
  • Minimum Copper Conductor Size (AWG): #12
  • Minimum Metric Conductor Size (mm²): 205
  • Maximum Metric Conductor Size (mm²): 6
  • Wire Strip Length (mm): 8.7
  • Stud Size: #6
  • Wire Strip Length (In.): 0.34
  • Standards Met: American Bureau of Shipping (ABS); C22.2 No.65; UL486A-486B; 587H; E52164; LR312120
  • Maximum Voltage (kV): 0.6
  • Maximum Voltage (V): 600
  • Finish/Coating: Tin-Plated
  • Base Material: Copper
  • Color Code: Yellow
  • Barrel Type: Funnel
  • Barrel Length (In.): 0.39
  • Barrel Length (mm): 9.8
  • CSA Temperature Rating (°C): 105
  • Flammability Rating: UL 94 V-0
  • Insulation Diameter (In.): 0.23
  • Insulation Diameter (mm): 5.7
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Seam Type: Butted
  • Maximum Wire Insulation Diameter (mm): 5.7
  • Maximum Wire Insulation Diameter (In.): 0.23
  • Outer Diameter (In.): 0.23
  • Outer Diameter (mm): 5.7
  • Stud Hole Size (In.): 7/50
  • Stud Hole Size (mm): 3.6
  • Overall Length (In.): 1.02
  • Overall Length (mm): 25.9
  • Overall Width (mm): 7.6
  • Overall Width (In.): 0.3
  • Tongue Length (In.): 0.64
  • Tongue Length (mm): 16.1
  • Sub Brand: Reel Smart
  • Tongue Thickness (mm): 1
  • Tongue Thickness (In.): 0.04
  • Tongue Width (mm): 7.6
  • Tongue Width (In.): 0.3
  • Packaging Type: Reel
  • Product Type: Terminals on a Reel
  • For Use With: CP-851; CP-860; CP-861; CA-800; CD-800-3; CD9-3B

Packaging Details

  • UPC: 07498380849
  • GTIN Package: 00074983808496
  • Standard Package Volume Ft3: 0.9208
  • Standard Package Weight Pounds: 11.4000
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 26.1
  • Std Package Length MM: 662.94
  • Std Package Width In: 25.4
  • Std Package Width MM: 645.16
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 2000
  • Standard Carton Volume Ft3: 0.9208
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 662.94
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983808496
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 2,000
  • Pallet Quantity: 32,000
  • Pallet Volume: 0.000000
  • Pallet Weight: 182.4000

Overview

GTiN 00074983808496
Finish Tin-Plated
Width 0.3 in
Color Yellow
Type Terminals On A Reel
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 12-10 AWG
Temperature Rating 221 F
Pkg Qty 2000
Family Brand Name Panduit
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 1.02 in
Barrel Length 0.39 in
Color Coding Yellow
Enclosure Fork shape
Sub Brand Reel Smart
Product UPC 07498380849
Size NA
Voltage 600 Volt
UNSPSC 39121409
