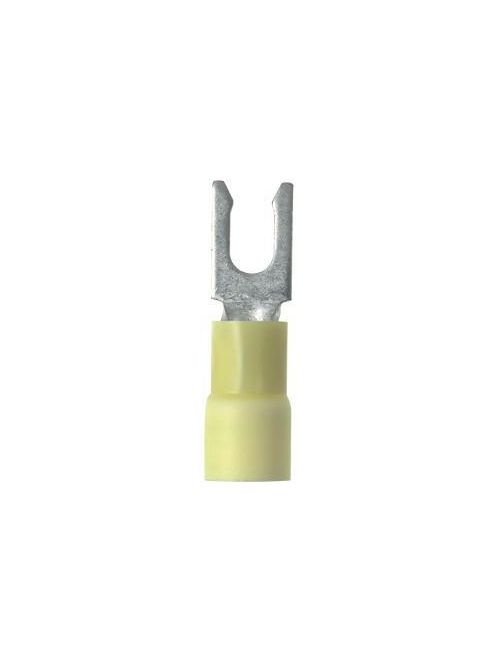

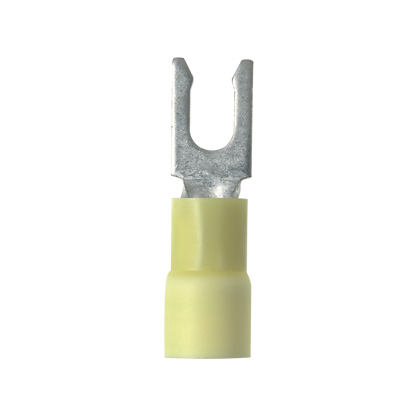

PAN PV10-8LFX-L LkgForkTerm,Vyl,12,

Specifications

• Product Segment: IEI
• UNSPSC: 39121409
• Fork Type: Locking Fork
• Insulation Material: Vinyl
• Insulation Type: Vinyl
• Maximum Copper Conductor Size (AWG STR): #10
• Maximum Copper Conductor Size (AWG SOL): NA
• Minimum Wire Size (AWG): #12
• Maximum Copper Conductor Size (AWG): #10
• Maximum Wire Size (AWG): #10
• Minimum Copper Conductor Size (AWG SOL): NA
• Minimum Copper Conductor Size (AWG STR): #12
• Minimum Copper Conductor Size (AWG): #12
• Maximum Metric Conductor Size (mm²): 6
• Minimum Metric Conductor Size (mm²): 4
• Wire Strip Length (In.): 0.31
• Wire Strip Length (mm): 7.9
• Stud Size: #8
• Standards Met: CSA Certified-C22.2 No.65, UL Listed-UL486A-486B
• Maximum Voltage (V): 600
• Maximum Voltage (kV): 0.6
• Finish/Coating: Tin-Plated
• Base Material: Copper
• Color Code: Yellow
• Barrel Type: Funnel
• Barrel Length (mm): 14.2
• Barrel Length (In.): 0.56
• CSA Temperature Rating (°C): 105
• Flammability Rating: UL 94 V-0
• Insulation Diameter (mm): 6.4
• Insulation Diameter (In.): 0.25
• Maximum Operating Temperature (°F): 221
• Maximum Operating Temperature (°C): 105
• Seam Type: Brazed
• Maximum Wire Insulation Diameter (In.): 0.25
• Maximum Wire Insulation Diameter (mm): 6.4
• Stud Hole Size (mm): 4.1
• Stud Hole Size (In.): 4/25
• Overall Length (mm): 28.4
• Overall Length (In.): 1.12
• Overall Width (mm): 7.6
• Overall Width (In.): 0.3
• Tongue Length (mm): 14.2
• Tongue Length (In.): 0.56
• Tongue Thickness (In.): 0.04
• Tongue Thickness (mm): 1
• Tongue Width (mm): 7.6
• Tongue Width (In.): 0.3
• Sub Brand: Pan-Term
• Packaging Type: Bottle
• Product Type: Loose Piece Terminal
• For Use With: CT-550, CT-1550, CT-1551

Packaging Details

• UPC: 07498380834
• GTIN Package: 00074983808342
• Standard Package Volume Ft3: 0.0098
• Standard Package Weight Pounds: 0.2500
• Std Package Height In: 1.9
• Std Package Height MM: 48.26
• Std Package Length In: 4.3
• Std Package Length MM: 109.22
• Std Package Width In: 1.95
• Std Package Width MM: 49.53
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 50
• GTIN Carton: 50074983808347
• Standard Carton Volume Ft3: 0.0098
• Standard Carton Weight Pounds: 2.5000
• Std Carton Height In: 4.5
• Std Carton Height MM: 114.3
• Std Carton Length In: 10
• Std Carton Length MM: 109.22
• Std Carton Width In: 4.1
• Std Carton Width MM: 104.14
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983808342
• NLD HS Code: 8536901000000000000000
• USA HS Code: 8536904000000000000000
• USA HS Code 10digit: 8536904000
• ECCN Commodity Code: EAR99
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 50
