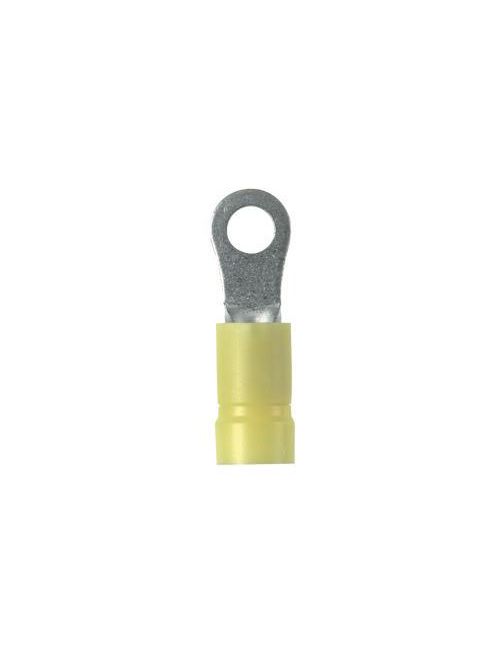

Panduit PV10-8R-D 12-10 AWG Vinyl Insulated Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
$353.08/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV10-8R-D
North Coast Part # 759495

Specifications

  • Product Segment: IEI
  • Stud Size: #8
  • Insulation Material: Vinyl
  • Maximum Copper Conductor Size (AWG SOL): #10
  • Maximum Wire Size (AWG): #10
  • Minimum Wire Size (AWG): #12
  • Maximum Copper Conductor Size (AWG STR): #10
  • Minimum Copper Conductor Size (AWG STR): #12
  • Minimum Copper Conductor Size (AWG SOL): #12
  • Maximum Metric Conductor Size (mm²): 6
  • Minimum Metric Conductor Size (mm²): 4
  • Wire Strip Length (In.): 5/16
  • Wire Strip Length (mm): 7.9
  • Standards Met: UL 486A/B, and CSA 22.2 No.65
  • Maximum Voltage (V): 600
  • Base Material: Copper
  • Maximum Voltage (kV): 0.6
  • Finish/Coating: Tin-Plated
  • Color Code: Yellow
  • Barrel Type: Funnel
  • Flammability Rating: UL94V-0
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Maximum Wire Insulation Diameter (mm): 5.8
  • Maximum Wire Insulation Diameter (In.): 0.23
  • Seam Type: Brazed
  • Sub Brand: Pan-Term®
  • Overall Length (In.): 1.05
  • Overall Length (mm): 26.7
  • Overall Width (mm): 7.9
  • Overall Width (In.): 0.31
  • Tongue Thickness (In.): 0.04
  • Tongue Thickness (mm): 1
  • Tongue Width (In.): 0.31
  • Tongue Width (mm): 7.9
  • Packaging Type: Box
  • Product Type: Loose Piece Ring Terminal
  • For Use With: CT-100

Packaging Details

  • UPC: 07498380131
  • GTIN Package: 00074983801312
  • Standard Package Volume Ft3: 0.0482
  • Standard Package Weight Pounds: 2.1500
  • Std Package Height In: 3.35
  • Std Package Height MM: 85.09
  • Std Package Length In: 7.15
  • Std Package Length MM: 181.61
  • Std Package Width In: 3.35
  • Std Package Width MM: 85.09
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 500
  • Standard Carton Volume Ft3: 0.0482
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 181.61
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983801312
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 500

Overview

UPC 07498380131
GTiN 00074983801312
Finish Tin-Plated
Width 0.31 in
Size M4
Color Yellow
Type Loose Piece Ring Terminal
Barrel Type Grip Sleeve
Material Copper
Country of Origin MX
Wire Size 12-10 AWG
Temperature Rating 221 F
Pkg Qty 500
Family Brand Name Panduit
Carton Qty 0
TC Connection Funnel Entry
Max Operating Temperature 167 degrees F
Overall Length 1.05 in
Barrel Length 0.52 in
Color Coding Yellow
Enclosure Ring shape
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage 600 Volt
