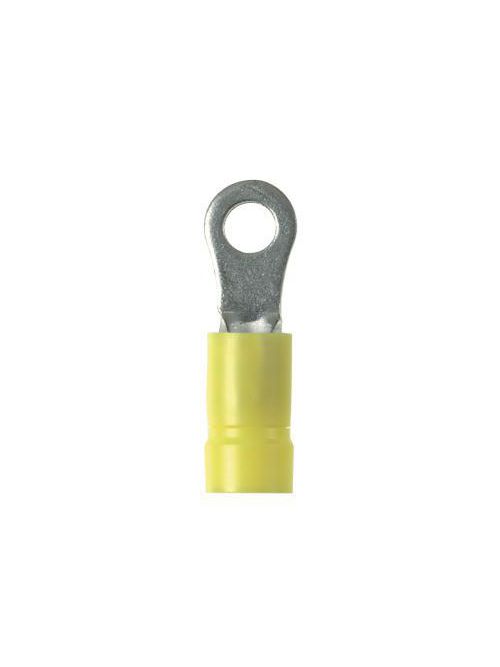

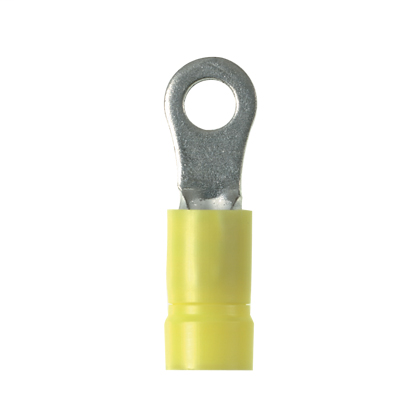

PAN PV12-10HDR-L RingTerm,HDty,Vyl,
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$115.56/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV12-10HDR-L
North Coast Part # 604769

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Stud Hole Size (mm): 5.1
  • Stud Hole Size (In.): 1/5
  • Stud Size: #10
  • Insulation Material: Vinyl
  • Minimum Wire Size (AWG): #16
  • Maximum Wire Size (AWG): #12
  • Maximum Copper Conductor Size (AWG SOL): NA
  • Maximum Copper Conductor Size (AWG): #12
  • Maximum Copper Conductor Size (AWG STR): #12
  • Minimum Copper Conductor Size (AWG): #16
  • Minimum Copper Conductor Size (AWG STR): #16
  • Minimum Copper Conductor Size (AWG SOL): NA
  • Minimum Metric Conductor Size (mm²): 2
  • Maximum Metric Conductor Size (mm²): 6
  • Wire Strip Length (mm): 7.1
  • Wire Strip Length (In.): 0.28
  • Standards Met: CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B
  • Maximum Voltage (kV): 0.6
  • Maximum Voltage (V): 600
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Color Code: Yellow
  • Barrel Length (mm): 13.7
  • Barrel Length (In.): 0.54
  • CSA Temperature Rating (°C): 105
  • Flammability Rating: UL 94 V-0
  • Insulation Diameter (In.): 0.23
  • Insulation Diameter (mm): 5.8
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Maximum Wire Insulation Diameter (mm): 5.8
  • Maximum Wire Insulation Diameter (In.): 0.23
  • Seam Type: Brazed
  • Sub Brand: Pan-Term
  • Overall Length (mm): 27.4
  • Overall Length (In.): 1.08
  • Overall Width (mm): 9.4
  • Overall Width (In.): 0.37
  • Tongue Length (mm): 13.7
  • Tongue Length (In.): 0.54
  • Tongue Width (In.): 0.37
  • Tongue Width (mm): 9.4
  • Packaging Type: Bottle
  • Product Type: Loose Piece Ring Terminal
  • For Use With: CT-600A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH), CT-460

Packaging Details

  • UPC: 07498380256
  • GTIN Package: 00074983802562
  • Standard Package Volume Ft3: 0.0072
  • Standard Package Weight Pounds: 0.2950
  • Std Package Height In: 1.75
  • Std Package Height MM: 44.45
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.8
  • Std Package Width MM: 45.72
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 50
  • GTIN Carton: 50074983802567
  • Standard Carton Volume Ft3: 0.0072
  • Standard Carton Weight Pounds: 2.9500
  • Std Carton Height In: 3.7
  • Std Carton Height MM: 93.98
  • Std Carton Length In: 9.45
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 4.1
  • Std Carton Width MM: 104.14
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983802562
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 50
  • Pallet Quantity: 0
  • Pallet Volume: 0.000000
  • Pallet Weight: 0.0000

Overview

UPC 07498380256
Item Long Description Ring Terminal, 16 12 AWG, #10 stud size, heavy duty, vinyl insulated, funnel entry, standard package.
GTiN 00074983802562
Finish Tin-Plated
Width 0.37 in
Color Yellow
Type Loose Piece Ring Terminal
Barrel Type Insulation Support, Brazed Seam
Material Copper
Country of Origin MX
Wire Size 16-12 AWG
Temperature Rating 221 F
Pkg Qty 50
Family Brand Name Panduit
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 1.08 in
Barrel Length 0.54 in
Color Coding Yellow
Enclosure Ring shape
Sub Brand Pan-Term
Size NA
Voltage 600 Volt
UNSPSC 39121409
