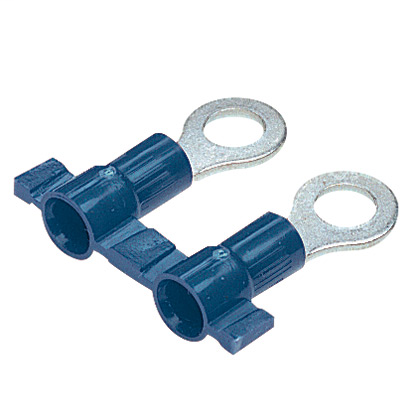

PAN PV14-14RB-3K RingTerm,Vyl,16,14
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$344.64/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 3000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV14-14RB-3K
North Coast Part # 763026

Specifications

  • Product Segment: IEI
  • Stud Hole Size (In.): 27/100
  • Stud Hole Size (mm): 6.8
  • Insulation Material: Vinyl
  • Maximum Copper Conductor Size (AWG STR): #14
  • Minimum Wire Size (AWG): #16
  • Maximum Copper Conductor Size (AWG): #14
  • Maximum Copper Conductor Size (AWG SOL): #14
  • Maximum Wire Size (AWG): #14
  • Minimum Copper Conductor Size (AWG SOL): #16
  • Minimum Copper Conductor Size (AWG STR): #16
  • Minimum Copper Conductor Size (AWG): #16
  • Maximum Metric Conductor Size (mm²): 2.5
  • Minimum Metric Conductor Size (mm²): 1.5
  • Wire Strip Length (mm): 6.4
  • Wire Strip Length (In.): 0.25
  • Standards Met: CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B
  • Maximum Voltage (kV): 0.6
  • Base Material: Copper
  • Maximum Voltage (V): 600
  • Finish/Coating: Tin-Plated
  • Color Code: Blue
  • Barrel Type: Funnel Entry
  • Barrel Length (In.): 0.53
  • Barrel Length (mm): 13.3
  • CSA Temperature Rating (°C): 105
  • Flammability Rating: UL 94 V-0
  • Insulation Diameter (mm): 4.3
  • Insulation Diameter (In.): 0.17
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Maximum Wire Insulation Diameter (mm): 4.3
  • Maximum Wire Insulation Diameter (In.): 0.17
  • Overall Length (In.): 1.05
  • Overall Length (mm): 26.7
  • Overall Width (In.): 0.45
  • Overall Width (mm): 11.4
  • Tongue Length (mm): 13.3
  • Tongue Length (In.): 0.53
  • Tongue Thickness (In.): 0.03
  • Tongue Thickness (mm): 0.8
  • Tongue Width (In.): 0.45
  • Tongue Width (mm): 11.4
  • Sub Brand: Reel Smart
  • Packaging Type: Reel
  • Product Type: Ring Terminal on Reel
  • For Use With: CP-861, CP-862, CP-871, CA-800EZ, CA9, CD-800-2, CD9-2A, CD9-2B

Packaging Details

  • UPC: 07498380693
  • GTIN Package: 00074983806935
  • Standard Package Volume Ft3: 0.9208
  • Standard Package Weight Pounds: 10.8000
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 26.1
  • Std Package Length MM: 662.94
  • Std Package Width In: 25.4
  • Std Package Width MM: 645.16
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 3000
  • Standard Carton Volume Ft3: 0.9208
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 662.94
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983806935
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 3,000

Overview

UPC 07498380693
GTiN 00074983806935
Finish Tin-Plated
Width 0.45 in
Size M6
Color Blue
Type Ring Terminal on Reel
Barrel Type Funnel Entry
Material Copper
Country of Origin MX
Wire Size 16-14 AWG
Temperature Rating 221 F
Pkg Qty 3000
Family Brand Name Panduit
Carton Qty 0
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 1.05 in
Barrel Length 0.53 in
Color Coding Blue
Enclosure Ring shape
Sub Brand Reel Smart
Voltage null
