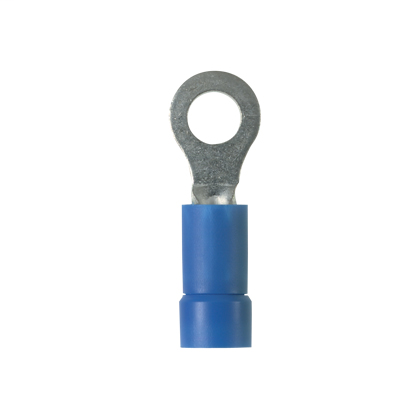

PAN PV14-38R-M Ring Term,Vinyl,16-1
Product image thumbnail 0
Product image thumbnail 1
$368.35/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV14-38R-M
North Coast Part # 828214

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Stud Hole Size (mm): 10.2
  • Stud Hole Size (In.): 2/5
  • Insulation Material: Vinyl
  • Maximum Copper Conductor Size (AWG): #14
  • Maximum Copper Conductor Size (AWG STR): #14
  • Minimum Wire Size (AWG): #16
  • Maximum Wire Size (AWG): #14
  • Maximum Copper Conductor Size (AWG SOL): NA
  • Minimum Copper Conductor Size (AWG STR): #16
  • Minimum Copper Conductor Size (AWG SOL): NA
  • Minimum Copper Conductor Size (AWG): #16
  • Maximum Metric Conductor Size (mm²): 2.5
  • Minimum Metric Conductor Size (mm²): 1.5
  • Wire Strip Length (mm): 7.9
  • Wire Strip Length (In.): 0.31
  • Standards Met: CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B
  • Base Material: Copper
  • Maximum Voltage (kV): 0.6
  • Maximum Voltage (V): 600
  • Finish/Coating: Tin-Plated
  • Color Code: Blue
  • Barrel Type: Funnel Entry
  • Barrel Length (mm): 15.4
  • Barrel Length (In.): 0.61
  • CSA Temperature Rating (°C): 105
  • Flammability Rating: UL 94 V-0
  • Insulation Diameter (In.): 0.17
  • Insulation Diameter (mm): 4.3
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Maximum Wire Insulation Diameter (In.): 0.17
  • Maximum Wire Insulation Diameter (mm): 4.3
  • Overall Length (In.): 1.21
  • Overall Length (mm): 30.7
  • Overall Width (mm): 13.5
  • Overall Width (In.): 0.53
  • Tongue Length (In.): 0.61
  • Tongue Length (mm): 15.4
  • Tongue Thickness (mm): 0.8
  • Tongue Thickness (In.): 0.03
  • Tongue Width (In.): 0.53
  • Tongue Width (mm): 13.5
  • Sub Brand: Pan-Term
  • Packaging Type: Box
  • Product Type: Loose Piece Ring Terminal
  • For Use With: CT-100A, CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH), CT-160, CT-260, CT-400

Packaging Details

  • UPC: 07498380127
  • GTIN Package: 00074983801275
  • Standard Package Volume Ft3: 0.5473
  • Standard Package Weight Pounds: 3.1000
  • Std Package Height In: 3.4
  • Std Package Height MM: 86.36
  • Std Package Length In: 8.15
  • Std Package Length MM: 207.01
  • Std Package Width In: 4.5
  • Std Package Width MM: 114.3
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.5473
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 207.01
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983801275
  • NLD HS Code: 8536901000000000000000
  • USA HS Code: 8536904000000000000000
  • USA HS Code 10digit: 8536904000
  • ECCN Commodity Code: EAR99
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000

Overview

UPC 07498380127
GTiN 00074983801275
Finish Tin-Plated
Width 0.53 in
Size M10
Color Blue
Type Loose Piece Ring Terminal
Barrel Type Funnel Entry
Material Copper
Country of Origin MX
Wire Size 16-14 AWG
Temperature Rating 221 F
Pkg Qty 1000
Family Brand Name Panduit
Carton Qty 0
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 1.21 in
Barrel Length 0.61 in
Color Coding Blue
Enclosure Ring shape
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage null
