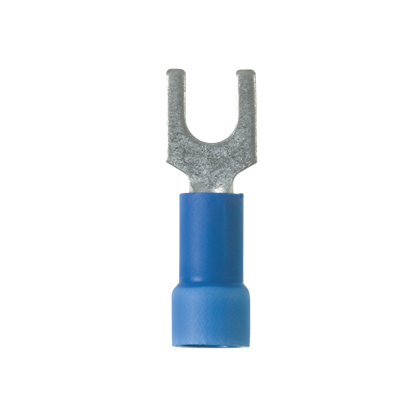

PAN PV14-6FX-C ForkTerm,Vyl,16,14AW

$102.28/c (100 ea)

Usually ships within 6 to 10 Days

Adding...

Already a Customer? Log in to view your pricing

Manufacturer	Panduit
Mfg Catalog #	PV14-6FX-C
North Coast Part #	601468

Specifications

Product Segment: IEI
UNSPSC: 39121409
Fork Type: Standard
Insulation Material: Vinyl
Insulation Type: Vinyl
Maximum Wire Size (AWG): #14
Maximum Copper Conductor Size (AWG): #14
Maximum Copper Conductor Size (AWG STR): #14
Maximum Copper Conductor Size (AWG SOL): #14
Minimum Wire Size (AWG): #16
Minimum Copper Conductor Size (AWG SOL): #16
Minimum Copper Conductor Size (AWG STR): #16
Minimum Copper Conductor Size (AWG): #16
Maximum Metric Conductor Size (mm²): 2.5
Minimum Metric Conductor Size (mm²): 1.5
Wire Strip Length (In.): 0.31
Wire Strip Length (mm): 7.9
Stud Size: #6
Standards Met: CSA Certified-C22.2 No.65, UL Listed-UL486A-486B
Maximum Voltage (kV): 0.6
Maximum Voltage (V): 600
Base Material: Copper
Finish/Coating: Tin-Plated
Color Code: Blue
Barrel Type: Funnel
Barrel Length (In.): 0.44
Barrel Length (mm): 11.2
CSA Temperature Rating (°C): 75
Flammability Rating: UL 94 V-0
Insulation Diameter (In.): 0.2
Insulation Diameter (mm): 5.1
Maximum Operating Temperature (°F): 167
Maximum Operating Temperature (°C): 75
Seam Type: Brazed
Maximum Wire Insulation Diameter (In.): 0.2
Maximum Wire Insulation Diameter (mm): 5.1
Stud Hole Size (In.): 3/20
Stud Hole Size (mm): 3.8
Overall Length (mm): 22.6
Overall Length (In.): 0.89
Overall Width (mm): 7.1
Overall Width (In.): 0.28
Tongue Length (In.): 0.44
Tongue Length (mm): 11.2
Tongue Thickness (mm): 0.8
Sub Brand: Pan-Term
Tongue Thickness (In.): 0.03
Tongue Width (mm): 7.1
Tongue Width (In.): 0.28
Packaging Type: Bottle
Product Type: Loose Piece Terminal
For Use With: CT-100

Packaging Details

UPC: 07498380424
GTIN Package: 00074983804245
Standard Package Volume Ft3: 0.0074
Standard Package Weight Pounds: 0.2800
Std Package Height In: 1.3
Std Package Height MM: 33.02
Std Package Length In: 4.1
Std Package Length MM: 104.14
Std Package Width In: 2
Std Package Width MM: 50.8
Std. Pkg. UOM: Piece
UOM EA PK: PK
Std. Pkg. Qty.: 100
GTIN Carton: 50074983804240
Standard Carton Volume Ft3: 0.0074
Standard Carton Weight Pounds: 1.4000
Std Carton Height In: 3.6
Std Carton Height MM: 91.44
Std Carton Length In: 9.3
Std Carton Length MM: 104.14
Std Carton Width In: 1.9
Std Carton Width MM: 48.26
Std Ctn Qty: 500
Min. Order UOM: Piece
Country of Origin 2Digit: MX
RoHS Compliant: Compliant
EAN: 00074983804245
REACH Status: False
Buy American Compliant: Y
ARRA Compliant: Y
Mercury Content Indicator: No
Hazardous Material Flag: N
Min Order Qty: 100

Overview

UPC	07498380424
Item Long Description	Fork Terminal, Expanded Vinyl Insulation, 16 - 14 American Wire Gauge (AWG), No. 6 Stud Size. Expanded wire entry designed to accommodate wire with a larger insulation thickness. Fork design provides for fast and easy installation. without the need to remove fastener. Insulation support helps to prevent wire damage in bending applications. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL 94V-0, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL and CSA rated up 600 Volts per UL 486A/B. Standard Package.
GTiN	00074983804245
Finish	Tin-Plated
Width	0.28 in
Size	M3.5
Color	Blue
Type	Loose Piece Terminal
Barrel Type	Funnel
Material	Copper
Country of Origin	MX
Wire Size	18-14 AWG
Temperature Rating	221 F
Pkg Qty	100
Family Brand Name	Panduit
TC Connection	Funnel Entry
Max Operating Temperature	167 degrees F
Overall Length	0.89 in
Barrel Length	0.44 in
Color Coding	Blue
Enclosure	Fork shape
Sub Brand	Pan-Term
Voltage	600 Volt
UNSPSC	39121409
