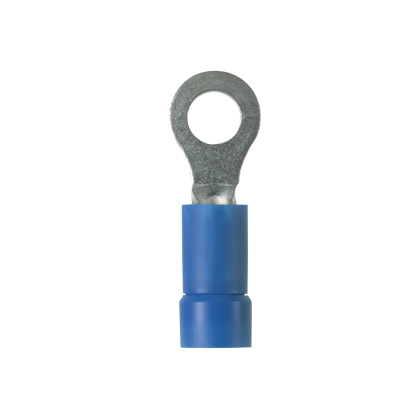

Panduit PV14-6R-M 16-14 AWG Vinyl Insulated Ring Terminal

$233.87/m (1000 ea)

Usually ships within 6 to 10 Days

Adding...

Already a Customer? Log in to view your pricing

Specifications

Product Segment: IEI
Stud Size: #6
Insulation Material: Vinyl
Minimum Wire Size (AWG): #16
Maximum Wire Size (AWG): #14
Minimum Metric Conductor Size (mm²): 1.5
Maximum Metric Conductor Size (mm²): 2.5
Wire Strip Length (mm): 7.9
Wire Strip Length (In.): 5/16
Standards Met: UL 486A/B, and CSA 22.2 No.65
Maximum Voltage (kV): 0.6
Base Material: Copper
Maximum Voltage (V): 600
Finish/Coating: Tin-Plated
Color Code: Blue
Barrel Type: Funnel
Flammability Rating: UL94V-0
Maximum Operating Temperature (°C): 105
Maximum Operating Temperature (°F): 221
Maximum Wire Insulation Diameter (In.): 0.17
Maximum Wire Insulation Diameter (mm): 4.3
Seam Type: Brazed
Sub Brand: Pan-Term®
Overall Length (In.): 0.92
Overall Length (mm): 23.4
Overall Width (In.): 0.31
Overall Width (mm): 7.9
Tongue Thickness (mm): 0.8
Tongue Thickness (In.): 0.03
Tongue Width (In.): 0.31
Tongue Width (mm): 7.9
Packaging Type: Box
Product Type: Loose Piece Ring Terminal
For Use With: CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550), CT-100

UPC	07498380117
Item Long Description	The PV14-6R-M Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
GTiN	00074983801176
Finish	Tin-Plated
Width	0.31 in
Size	M3.5
Color	Blue
Type	Loose Piece Ring Terminal
Barrel Type	Funnel
Material	Copper
Country of Origin	MX
Wire Size	16-14 AWG
Temperature Rating	221 F
Pkg Qty	1000
Family Brand Name	Panduit
TC Connection	Funnel Entry
Max Operating Temperature	221 degrees F
Overall Length	0.92 in
Barrel Length	0.46 in
Color Coding	Blue
Enclosure	Ring shape
Sub Brand	Pan-Term
CA Prop65 Warning	No
Voltage	600 Volt
