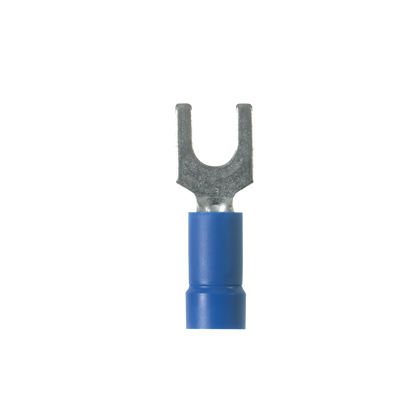

Panduit PV14-8F-M 16-14 AWG Vinyl Insulated Fork Terminal
$251.24/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV14-8F-M
North Coast Part # 828199

Specifications

  • Product Segment: IEI
  • Fork Type: Standard
  • Insulation Material: Vinyl
  • Insulation Type: Vinyl
  • Maximum Copper Conductor Size (AWG SOL): #14
  • Maximum Wire Size (AWG): #14
  • Maximum Copper Conductor Size (AWG STR): #14
  • Maximum Copper Conductor Size (AWG): #14
  • Minimum Wire Size (AWG): #16
  • Minimum Copper Conductor Size (AWG STR): #16
  • Minimum Copper Conductor Size (AWG SOL): #16
  • Minimum Copper Conductor Size (AWG): #16
  • Maximum Metric Conductor Size (mm²): 2.5
  • Minimum Metric Conductor Size (mm²): 1.5
  • Wire Strip Length (In.): 0.31
  • Stud Size: #8
  • Wire Strip Length (mm): 7.9
  • Standards Met: CSA certified C22.2 No.65,UL Listed UL486A-486B
  • Maximum Voltage (V): 600
  • Maximum Voltage (kV): 0.6
  • Finish/Coating: Tin-Plated
  • Base Material: Copper
  • Color Code: Blue
  • Barrel Type: Funnel
  • Barrel Length (mm): 11.4
  • Barrel Length (In.): 0.45
  • CSA Temperature Rating (°C): 105
  • Flammability Rating: UL 94 V-0
  • Insulation Diameter (mm): 4.3
  • Insulation Diameter (In.): 0.17
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Seam Type: Brazed
  • Maximum Wire Insulation Diameter (In.): 0.17
  • Maximum Wire Insulation Diameter (mm): 4.3
  • Stud Hole Size (In.): 1/6
  • Stud Hole Size (mm): 4.3
  • Overall Length (mm): 22.9
  • Overall Length (In.): 0.9
  • Overall Width (In.): 0.31
  • Overall Width (mm): 7.9
  • Tongue Length (In.): 0.45
  • Tongue Length (mm): 22.9
  • Tongue Thickness (mm): 0.8
  • Sub Brand: Pan-Term
  • Tongue Thickness (In.): 0.03
  • Tongue Width (In.): 0.31
  • Tongue Width (mm): 7.9
  • Packaging Type: NA
  • Product Type: Fork Terminal
  • For use with: CT-100, CT-1550, CT-1551

Packaging Details

  • UPC: 07498380409
  • GTIN Package: 00074983804092
  • Standard Package Volume Ft3: 0.5261
  • Standard Package Weight Pounds: 2.5000
  • Std Package Height In: 3.45
  • Std Package Height MM: 87.63
  • Std Package Length In: 8.15
  • Std Package Length MM: 207.01
  • Std Package Width In: 4.45
  • Std Package Width MM: 113.03
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.5261
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 207.01
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983804092
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1000

Categories

Overview

UPC 07498380409
GTiN 00074983804092
Finish Tin-Plated
Width 0.31 in
Size M4
Color Blue
Type Fork Terminal
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 16-14 AWG
Temperature Rating 221 F
Pkg Qty 1000
Family Brand Name Panduit
Carton Qty 0
TC Connection Funnel
Max Operating Temperature 221 degrees F
Overall Length 0.9 in
Barrel Length 0.45 in
Color Coding Blue
Enclosure Fork shape
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage null
