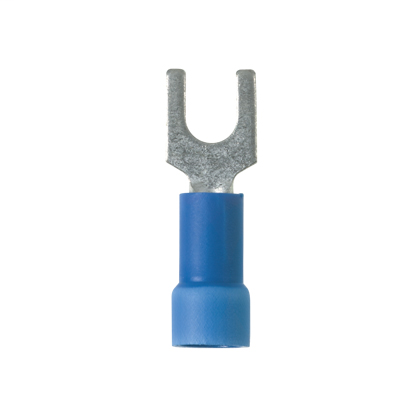

PAN PV14-8FX-C ForkTerm,Vyl,16,14AW
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$96.91/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV14-8FX-C
North Coast Part # 601469

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Fork Type: Standard
  • Insulation Material: Vinyl
  • Insulation Type: Vinyl
  • Minimum Wire Size (AWG): #16
  • Maximum Copper Conductor Size (AWG): #14
  • Maximum Copper Conductor Size (AWG STR): #14
  • Maximum Wire Size (AWG): #14
  • Maximum Copper Conductor Size (AWG SOL): #14
  • Minimum Copper Conductor Size (AWG): #16
  • Minimum Copper Conductor Size (AWG SOL): #16
  • Minimum Copper Conductor Size (AWG STR): #16
  • Maximum Metric Conductor Size (mm²): 2.5
  • Minimum Metric Conductor Size (mm²): 1.5
  • Stud Size: #8
  • Wire Strip Length (In.): 0.31
  • Wire Strip Length (mm): 7.9
  • Standards Met: CSA certified C22.2 No.65,UL Listed UL486A-486B
  • Maximum Voltage (kV): 0.6
  • Maximum Voltage (V): 600
  • Finish/Coating: Tin-Plated
  • Base Material: Copper
  • Color Code: Blue
  • Barrel Type: Funnel
  • Barrel Length (In.): 0.48
  • Barrel Length (mm): 12.2
  • CSA Temperature Rating (°C): 105
  • Flammability Rating: UL 94 V-0
  • Insulation Diameter (mm): 5.1
  • Insulation Diameter (In.): 0.2
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Seam Type: Brazed
  • Maximum Wire Insulation Diameter (mm): 5.1
  • Maximum Wire Insulation Diameter (In.): 0.2
  • Stud Hole Size (In.): 1/6
  • Stud Hole Size (mm): 4.3
  • Overall Length (In.): 0.96
  • Overall Length (mm): 24.4
  • Overall Width (mm): 7.9
  • Overall Width (In.): 0.31
  • Tongue Length (mm): 12.2
  • Tongue Length (In.): 0.48
  • Sub Brand: Pan-Term
  • Tongue Thickness (mm): 0.8
  • Tongue Thickness (In.): 0.03
  • Tongue Width (In.): 0.31
  • Tongue Width (mm): 7.9
  • Packaging Type: Bottle
  • Product Type: Fork Terminal
  • For Use With: CT-500, CT-1550, CT-1551, CT-550

Packaging Details

  • UPC: 07498380426
  • GTIN Package: 00074983804269
  • Standard Package Volume Ft3: 0.0099
  • Standard Package Weight Pounds: 0.3000
  • Std Package Height In: 1.9
  • Std Package Height MM: 48.26
  • Std Package Length In: 4.3
  • Std Package Length MM: 109.22
  • Std Package Width In: 1.95
  • Std Package Width MM: 49.53
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983804264
  • Standard Carton Volume Ft3: 0.0099
  • Standard Carton Weight Pounds: 1.5000
  • Std Carton Height In: 4.35
  • Std Carton Height MM: 110.49
  • Std Carton Length In: 9.95
  • Std Carton Length MM: 109.22
  • Std Carton Width In: 2.25
  • Std Carton Width MM: 57.15
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983804269
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Overview

UPC 07498380426
Item Long Description Fork Terminal, vinyl insulated, 16- 14 AWG, #8 stud size, expanded insulation for large wire O.D., standard package.
GTiN 00074983804269
Finish Tin-Plated
Width 0.31 in
Size M4
Color Blue
Type Fork Terminal
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 18-14 AWG
Temperature Rating 221 F
Pkg Qty 100
Family Brand Name Panduit
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 0.96 in
Barrel Length 0.48 in
Color Coding Blue
Enclosure Fork shape
Sub Brand Pan-Term
Voltage 600 Volt
UNSPSC 39121409
