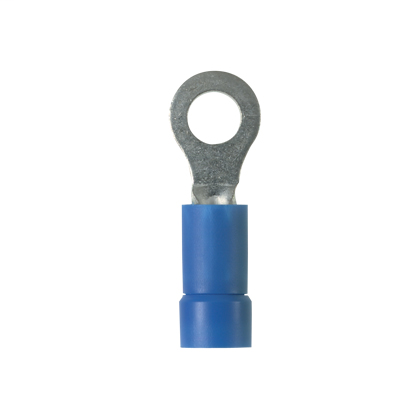

Panduit PV14-8R-M 16-14 AWG Vinyl Insulated Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$233.87/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV14-8R-M
North Coast Part # 666073

Specifications

  • Product Segment: IEI
  • Stud Size: #8
  • Insulation Material: Vinyl
  • Maximum Wire Size (AWG): #14
  • Minimum Wire Size (AWG): #16
  • Minimum Metric Conductor Size (mm²): 1.5
  • Maximum Metric Conductor Size (mm²): 2.5
  • Wire Strip Length (mm): 7.8
  • Wire Strip Length (In.): 5/16
  • Standards Met: UL 486A/B, and CSA 22.2 No.65
  • Maximum Voltage (V): 600
  • Maximum Voltage (kV): 0.6
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Color Code: Blue
  • Barrel Type: Funnel
  • Flammability Rating: UL94V-0
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Maximum Wire Insulation Diameter (mm): 4.3
  • Maximum Wire Insulation Diameter (In.): 0.17
  • Seam Type: Brazed
  • Sub Brand: Pan-Term®
  • Overall Length (In.): 0.92
  • Overall Length (mm): 23.4
  • Overall Width (mm): 7.9
  • Overall Width (In.): 0.31
  • Tongue Thickness (In.): 0.03
  • Tongue Thickness (mm): 0.8
  • Tongue Width (In.): 0.31
  • Tongue Width (mm): 7.9
  • Packaging Type: Box
  • Product Type: Loose Piece Ring Terminal
  • For Use With: CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550), CT-100

Packaging Details

  • UPC: 07498380119
  • GTIN Package: 00074983801190
  • Standard Package Volume Ft3: 0.0641
  • Standard Package Weight Pounds: 2.5000
  • Std Package Height In: 3.3
  • Std Package Height MM: 83.82
  • Std Package Length In: 8.15
  • Std Package Length MM: 207.01
  • Std Package Width In: 4.3
  • Std Package Width MM: 109.22
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.0641
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 207.01
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983801190
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000

Overview

UPC 07498380119
Item Long Description The PV14-8R-M Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
GTiN 00074983801190
Finish Tin-Plated
Width 0.31 in
Size M4
Color Blue
Type Loose Piece Ring Terminal
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 16-14 AWG
Temperature Rating 221 F
Pkg Qty 1000
Family Brand Name Panduit
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 0.92 in
Barrel Length 0.38 in
Color Coding Blue
Enclosure Ring shape
Sub Brand Pan-term
CA Prop65 Warning No
Voltage 600 Volt
