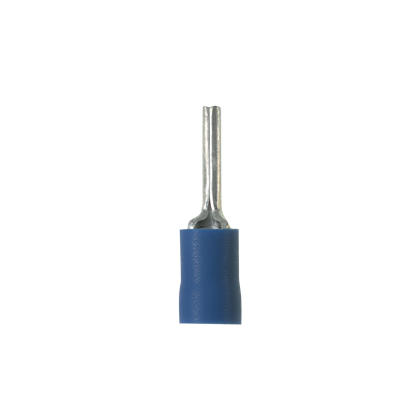

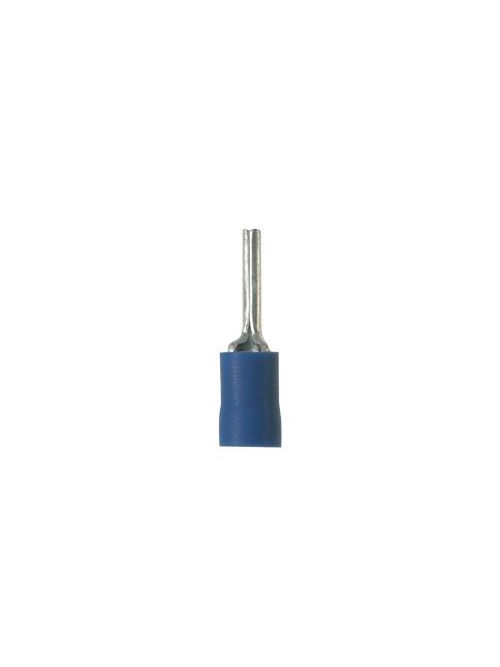

Panduit PV14-P47-M 16-14 AWG Vinyl Insulated Pin Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$380.21/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV14-P47-M
North Coast Part # 666074

Specifications

  • UNSPSC: 39121409
  • Product Segment: IEI
  • Pin Length (mm): 12.4
  • Pin Length (In.): 0.49
  • Insulation Material: Vinyl
  • Maximum Wire Size (AWG): 16 - 14 AWG
  • Wire Strip Length (In.): 0.31
  • Wire Strip Length (mm): 7.9
  • Standards Met: UL486A/B
  • Maximum Voltage (kV): 0.6
  • Maximum Voltage (V): 600
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Color Code: Blue
  • Barrel Type: Brazed
  • Flammability Rating: UL94-V0
  • Insulation Diameter (In.): 0.17
  • Insulation Diameter (mm): 4.3
  • Maximum Wire Insulation Diameter (mm): 4.3
  • Maximum Wire Insulation Diameter (In.): 0.17
  • Overall Length (In.): 0.97
  • Sub Brand: Pan-Term
  • Overall Length (mm): 24.6
  • Packaging Type: Box
  • Product Type: Loose Piece Terminal

Packaging Details

  • UPC: 07498381222
  • GTIN Package: 00074983812226
  • Standard Package Volume Ft3: 0.0331
  • Standard Package Weight Pounds: 1.8500
  • Std Package Height In: 3.35
  • Std Package Height MM: 85.09
  • Std Package Length In: 7.15
  • Std Package Length MM: 181.61
  • Std Package Width In: 3.35
  • Std Package Width MM: 85.09
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.0331
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 181.61
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983812226
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000
  • Pallet Quantity: 660,000
  • Pallet Volume: 0.000000
  • Pallet Weight: 1,221.0000

Overview

UPC 07498381222
Item Long Description Pin Terminal, 16 14 AWG, vinyl insulated, .49 pin length, bulk package.
GTiN 00074983812226
Finish Tin-Plated
Color Blue
Type Loose Piece Terminal
Barrel Type Brazed
Material Copper
Country of Origin MX
Wire Size 16-14 AWG
Temperature Rating 221 F
Pkg Qty 1000
Family Brand Name Panduit
TC Connection Standard
Overall Length 0.97 in
Color Coding Blue
Enclosure Pin shape
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage 600 Volt
UNSPSC 39121409
