PAN PV18-38RB-2K Panduit PV18-38RB-

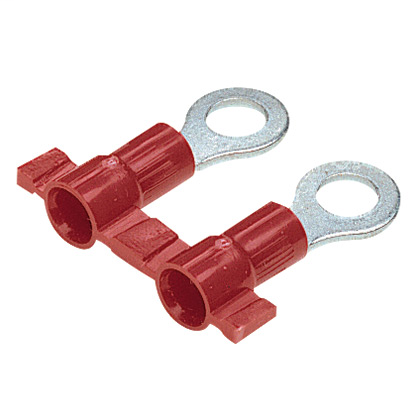

Product image thumbnail 0
Product image thumbnail 1
$356.36/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV18-38RB-2K
North Coast Part # 666075

Specifications

  • Product Segment: IEI
  • Stud Hole Size (In.): 3/8
  • Insulation Material: Vinyl
  • Maximum Copper Conductor Size (AWG SOL): #18
  • Maximum Copper Conductor Size (AWG STR): #18
  • Minimum Copper Conductor Size (AWG STR): #22
  • Minimum Copper Conductor Size (AWG SOL): #22
  • Maximum Metric Conductor Size (mm²): 1
  • Minimum Metric Conductor Size (mm²): 0.5
  • Wire Strip Length (mm): 6.4
  • Wire Strip Length (In.): 1/4
  • Standards Met: UL 486A/B, and CSA 22.2 No.65
  • Maximum Voltage (kV): 0.6
  • Base Material: Copper
  • Maximum Voltage (V): 600
  • Finish/Coating: Tin-Plated
  • Color Code: Red
  • Barrel Type: Funnel
  • Flammability Rating: UL94V-0
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Maximum Wire Insulation Diameter (In.): 0.15
  • Maximum Wire Insulation Diameter (mm): 3.8
  • Sub Brand: Reel Smart™
  • Overall Length (mm): 29.2
  • Overall Length (In.): 1.15
  • Overall Width (In.): 0.53
  • Overall Width (mm): 13.5
  • Tongue Thickness (In.): 0.03
  • Tongue Thickness (mm): 0.8
  • Tongue Width (In.): 0.53
  • Tongue Width (mm): 13.5
  • Product Type: Ring Terminal on Reel
  • For Use With: Crimp press with CA9 (CD9-1B) or CA-800EZ (CD-800-1) applicator

Packaging Details

  • UPC: 07498370537
  • GTIN Package: 00074983705375
  • Standard Package Volume Ft3: 0.9208
  • Standard Package Weight Pounds: 7.4000
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 26.1
  • Std Package Length MM: 662.94
  • Std Package Width In: 25.4
  • Std Package Width MM: 645.16
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 2000
  • Standard Carton Volume Ft3: 0.9208
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 662.94
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983705375
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 2,000
  • Pallet Quantity: 32,000
  • Pallet Volume: 0.000000
  • Pallet Weight: 118.4000

Overview

GTiN 00074983705375
Finish Tin-Plated
Width 0.53 in
Size M10
Color Red
Type Ring Terminal On Reel
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 22-18 AWG
Temperature Rating 221 F
Pkg Qty 2000
Family Brand Name Panduit
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 1.15 in
Barrel Length 0.44 in
Color Coding Red
Enclosure Ring shape
Sub Brand Reel Smart
Product UPC 07498370537
