PAN PV18-56R-MY Panduit PV18-56R-MY
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$350.81/m (1000 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 1000 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV18-56R-MY
North Coast Part # 666076

Specifications

  • Product Segment: IEI
  • Note: PV18-56R-MY replaces PV18-56R-M
  • Stud Hole Size (mm): 8.6
  • Stud Hole Size (In.): 17/50
  • Insulation Material: Vinyl
  • Maximum Wire Size (AWG): #18
  • Maximum Copper Conductor Size (AWG): #18
  • Maximum Copper Conductor Size (AWG SOL): #18
  • Minimum Wire Size (AWG): #22
  • Maximum Copper Conductor Size (AWG STR): #18
  • Minimum Copper Conductor Size (AWG): #22
  • Minimum Copper Conductor Size (AWG STR): #22
  • Minimum Copper Conductor Size (AWG SOL): #22
  • Wire Strip Length (mm): 7.8
  • Wire Strip Length (In.): 0.31
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
  • Maximum Voltage (V): 600
  • Base Material: Copper
  • Maximum Voltage (kV): 0.6
  • Finish/Coating: Tin-Plated
  • Color Code: Red
  • Barrel Type: Funnel
  • Barrel Length (In.): 0.44
  • Barrel Length (mm): 11.1
  • Flammability Rating: UL 94 V-0
  • Insulation Diameter (mm): 3.7
  • Insulation Diameter (In.): 0.15
  • Maximum Operating Temperature (°F): 167
  • Maximum Operating Temperature (°C): 75
  • Maximum Wire Insulation Diameter (In.): 0.15
  • Maximum Wire Insulation Diameter (mm): 3.7
  • Outer Diameter (In.): 0.15
  • Outer Diameter (mm): 3.7
  • Sub Brand: Pan-term
  • Overall Length (In.): 1.11
  • Overall Length (mm): 28.2
  • Overall Width (mm): 11.7
  • Overall Width (In.): 0.46
  • Tongue Length (In.): 0.67
  • Tongue Length (mm): 17
  • Tongue Thickness (mm): 0.8
  • Tongue Thickness (In.): 0.03
  • Tongue Width (In.): 0.46
  • Tongue Width (mm): 11.7
  • Packaging Type: Box

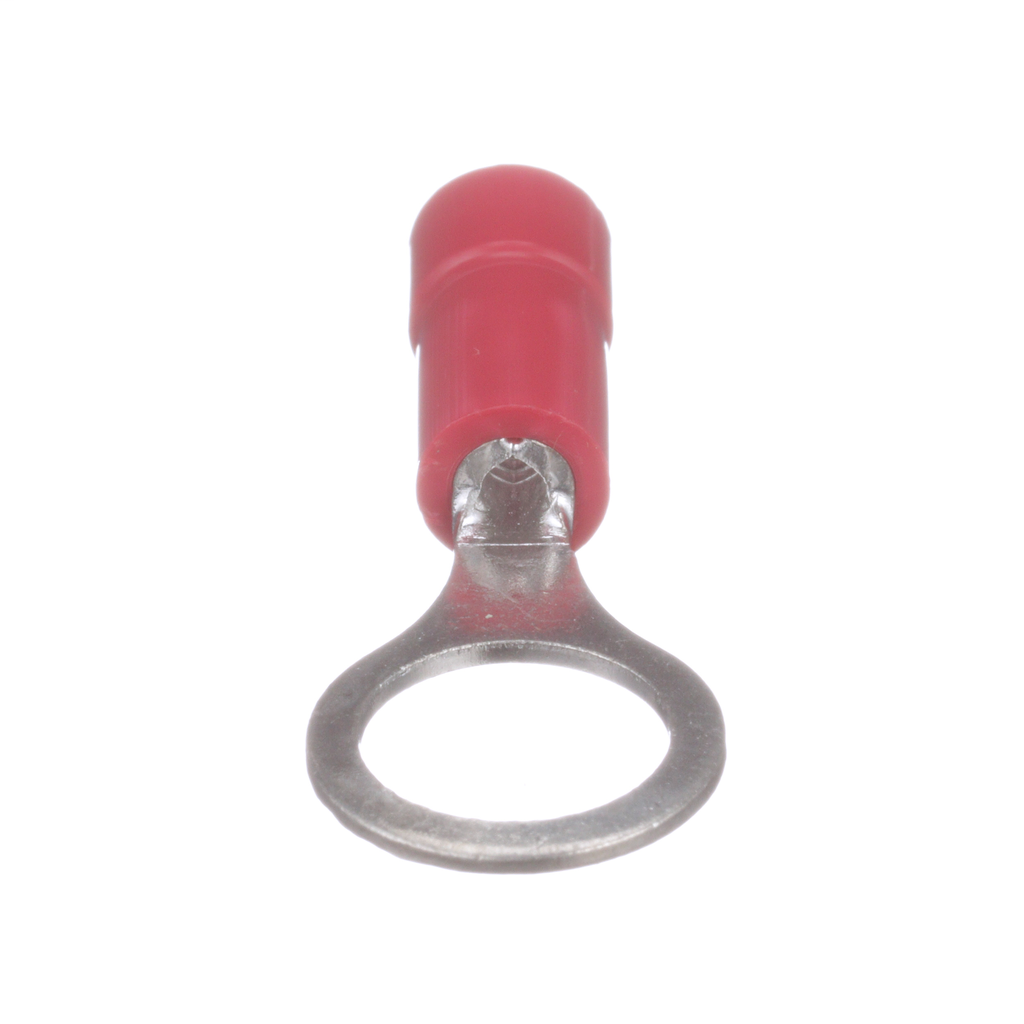

  • Product Type: Ring Terminal, Vinyl Insulated-Funnel Entry
  • For use with: CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500

Packaging Details

  • UPC: 07498341498
  • GTIN Package: 00074983414987
  • Standard Package Volume Ft3: 0.5473
  • Standard Package Weight Pounds: 2.8000
  • Std Package Height In: 3.4
  • Std Package Height MM: 86.36
  • Std Package Length In: 8.15
  • Std Package Length MM: 207.01
  • Std Package Width In: 4.55
  • Std Package Width MM: 115.57
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 1000
  • Standard Carton Volume Ft3: 0.5473
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 207.01
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983414987
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1000

Categories

Overview

UPC 07498341498
GTiN 00074983414987
Finish Tin-Plated
Width 0.46 in
Size M8
Color Red
Type Ring Terminal, Vinyl Insulated-Funnel Entry
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 22-18 AWG
Temperature Rating 221 F
Pkg Qty 1000
Family Brand Name Panduit
Carton Qty 0
TC Connection Funnel Entry
Max Operating Temperature 167 degrees F
Overall Length 1.11 in
Barrel Length 0.44 in
Color Coding Red
Enclosure Ring shape
Sub Brand Pan-term
CA Prop65 Warning No
Voltage null
