PAN PV18-6FN-CY ForkTerm,Narrow,Vyl

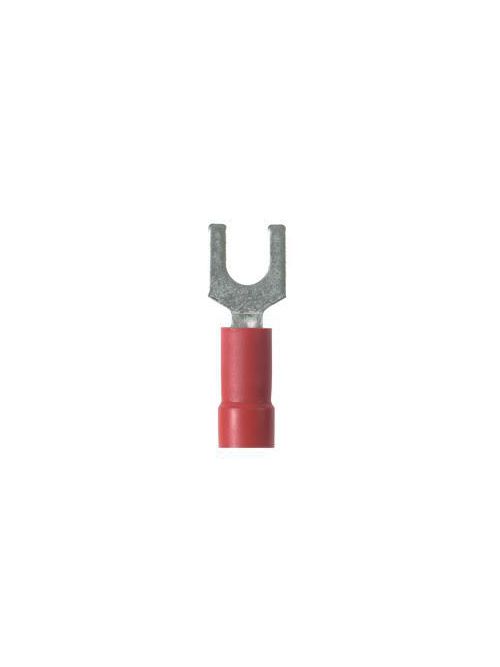

Product image thumbnail 0

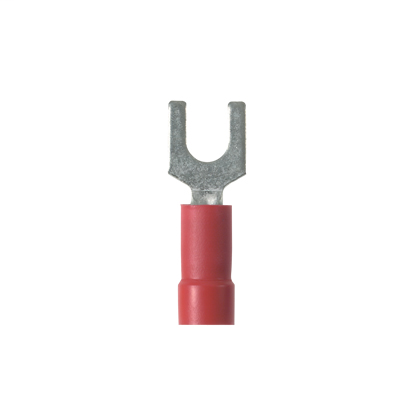

Product image thumbnail 1
Product image thumbnail 2
$73.58/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV18-6FN-CY
North Coast Part # 601479

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Note: PV18-6FN-CY replaces PV18-6FN-C
  • Fork Type: Narrow Fork
  • Insulation Material: Vinyl
  • Insulation Type: Vinyl
  • Maximum Copper Conductor Size (AWG): #16
  • Maximum Wire Size (AWG): #16
  • Minimum Wire Size (AWG): #22
  • Maximum Copper Conductor Size (AWG SOL): #16
  • Maximum Copper Conductor Size (AWG STR): #16
  • Minimum Copper Conductor Size (AWG STR): #22
  • Minimum Copper Conductor Size (AWG): #22
  • Minimum Copper Conductor Size (AWG SOL): #22
  • Maximum Metric Conductor Size (mm²): 1.5
  • Minimum Metric Conductor Size (mm²): 0.5
  • Wire Strip Length (mm): 7.9
  • Wire Strip Length (In.): 0.31
  • Stud Size: #6
  • Standards Met: CSA certified C22.2 No.65,UL Listed UL486A-486B
  • Maximum Voltage (V): 600
  • Maximum Voltage (kV): 0.6
  • Base Material: Copper
  • Finish/Coating: Tin-Plated
  • Color Code: Red
  • Barrel Type: Funnel
  • Barrel Length (In.): 0.43
  • Barrel Length (mm): 10.8
  • CSA Temperature Rating (°C): 105
  • Flammability Rating: UL 94 V-0
  • Insulation Diameter (mm): 3.8
  • Insulation Diameter (In.): 0.15
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Seam Type: Brazed
  • Maximum Wire Insulation Diameter (In.): 0.15
  • Maximum Wire Insulation Diameter (mm): 3.8
  • Stud Hole Size (mm): 3.8
  • Stud Hole Size (In.): 3/20
  • Overall Length (mm): 21.6
  • Overall Length (In.): 0.85
  • Overall Width (In.): 0.24
  • Overall Width (mm): 6.1
  • Tongue Length (mm): 10.8
  • Tongue Length (In.): 0.43
  • Tongue Thickness (In.): 0.03
  • Sub Brand: Pan-Term
  • Tongue Thickness (mm): 0.8
  • Tongue Width (mm): 6.1
  • Tongue Width (In.): 0.24
  • Packaging Type: Bottle
  • Product Type: Loose Piece Terminal
  • For Use With: CT-100A, CT-160, CT-260, CT-400, CT-600-A (CT-500CH), CT-600-A (CT-550CH), CT-1550, CT-1551, CT-2500 (CT-2550CH)

Packaging Details

  • UPC: 07498369179
  • GTIN Package: 00074983691791
  • Standard Package Volume Ft3: 0.0074
  • Standard Package Weight Pounds: 0.2400
  • Std Package Height In: 1.75
  • Std Package Height MM: 44.45
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.8
  • Std Package Width MM: 45.72
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983691796
  • Standard Carton Volume Ft3: 0.0074
  • Standard Carton Weight Pounds: 1.2000
  • Std Carton Height In: 3.65
  • Std Carton Height MM: 92.71
  • Std Carton Length In: 9.3
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 2.05
  • Std Carton Width MM: 52.07
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983691791
  • REACH Status: False
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Overview

UPC 07498369179
Item Long Description Fork Terminal, vinyl insulated, funnel entry, 22- 16 AWG, #6 stud size, narrow tongue, standard package.
GTiN 00074983691791
Finish Tin-Plated
Width 0.24 in
Size M3.5
Color Red
Type Loose Piece Terminal
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 22-16 AWG
Temperature Rating 221 F
Pkg Qty 100
Family Brand Name Panduit
TC Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 0.85 in
Barrel Length 0.43 in
Color Coding Red
Enclosure Fork shape
Sub Brand Pan-Term
Voltage 600 Volt
UNSPSC 39121409
