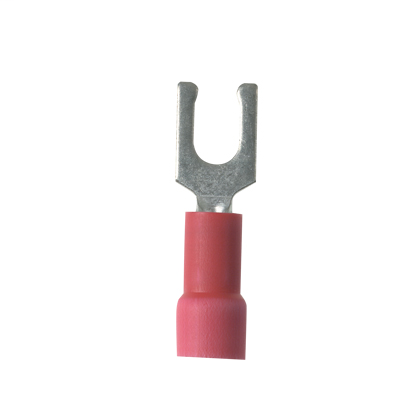

PAN PV18-6LFX-CY LkgForkTerm,Vyl,22

Specifications

• Product Segment: IEI
• UNSPSC: 39121409
• Note: PV18-6LFX-CY replaces PV18-6LFX-C
• Fork Type: Locking Fork
• Insulation Type: Vinyl
• Insulation Material: Vinyl
• Minimum Wire Size (AWG): #22
• Maximum Copper Conductor Size (AWG STR): #16
• Maximum Copper Conductor Size (AWG SOL): #16
• Maximum Wire Size (AWG): #16
• Maximum Copper Conductor Size (AWG): #16
• Minimum Copper Conductor Size (AWG SOL): #22
• Minimum Copper Conductor Size (AWG STR): #22
• Minimum Copper Conductor Size (AWG): #22
• Maximum Metric Conductor Size (mm²): 1
• Minimum Metric Conductor Size (mm²): 0.5
• Wire Strip Length (mm): 7.9
• Wire Strip Length (In.): 0.31
• Stud Size: #6
• Standards Met: UL Listed UL486A-486B ; CSA Certified C22.2 No.65
• Maximum Voltage (kV): 0.6
• Maximum Voltage (V): 600
• Finish/Coating: Tin-Plated
• Base Material: Copper
• Color Code: Red
• Barrel Type: Funnel
• Barrel Length (In.): 0.48
• Barrel Length (mm): 12.1
• Flammability Rating: UL 94 V-0
• Insulation Diameter (mm): 4.3
• Insulation Diameter (In.): 0.17
• Maximum Operating Temperature (°F): 221
• Maximum Operating Temperature (°C): 105
• Seam Type: Brazed
• Maximum Wire Insulation Diameter (In.): 0.17
• Maximum Wire Insulation Diameter (mm): 4.3
• Stud Hole Size (In.): 3/20
• Stud Hole Size (mm): 3.8
• Overall Length (In.): 0.95
• Overall Length (mm): 24.1
• Overall Width (mm): 6.9
• Overall Width (In.): 0.27
• Tongue Length (mm): 12.1
• Tongue Length (In.): 0.48
• Tongue Thickness (In.): 0.03
• Tongue Thickness (mm): 0.8
• Sub Brand: Pan-Term
• Tongue Width (In.): 0.27
• Tongue Width (mm): 6.9
• Packaging Type: Bottle
• Product Type: Loose Piece Forks
• For use with: CT-100, CT-1550, CT-1551, CT-550

Packaging Details

• UPC: 07498369463
• GTIN Package: 00074983694631
• Standard Package Volume Ft3: 0.0070
• Standard Package Weight Pounds: 0.2400
• Std Package Height In: 1.3
• Std Package Height MM: 33.02
• Std Package Length In: 4.1
• Std Package Length MM: 104.14
• Std Package Width In: 2
• Std Package Width MM: 50.8
• Std. Pkg. UOM: Piece
• UOM EA PK: PK
• Std. Pkg. Qty.: 100
• GTIN Carton: 50074983694636
• Standard Carton Volume Ft3: 0.0070
• Standard Carton Weight Pounds: 1.2000
• Std Carton Height In: 3.5
• Std Carton Height MM: 88.9
• Std Carton Length In: 9.1
• Std Carton Length MM: 104.14
• Std Carton Width In: 1.9
• Std Carton Width MM: 48.26
• Std Ctn Qty: 500
• Min. Order UOM: Piece
• Country of Origin 2Digit: MX
• RoHS Compliant: Compliant
• EAN: 00074983694631
• REACH Status: False
• Buy American Compliant: Y
• ARRA Compliant: Y
• Mercury Content Indicator: No
• Hazardous Material Flag: N
• Min Order Qty: 100
