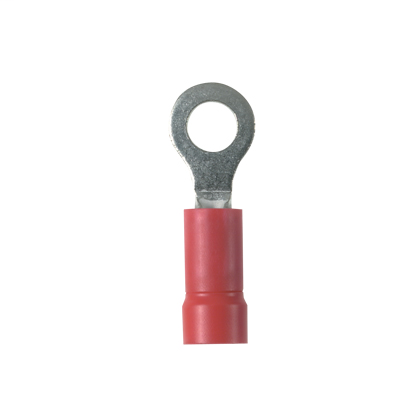

Panduit PV18-6R-CY 22-18 AWG Vinyl Insulated Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
$66.16/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV18-6R-CY
North Coast Part # 12493

Specifications

  • Product Segment: IEI
  • Note: PV18-6R-CY replaces PV18-6R-C
  • Stud Hole Size (In.): 3/20
  • Stud Hole Size (mm): 3.8
  • Insulation Material: Vinyl
  • Maximum Copper Conductor Size (AWG STR): #18
  • Maximum Copper Conductor Size (AWG SOL): #18
  • Maximum Copper Conductor Size (AWG): #18
  • Minimum Wire Size (AWG): #22
  • Maximum Wire Size (AWG): #18
  • Minimum Copper Conductor Size (AWG SOL): #22
  • Minimum Copper Conductor Size (AWG STR): #22
  • Minimum Copper Conductor Size (AWG): #22
  • Wire Strip Length (In.): 0.31
  • Wire Strip Length (mm): 7.9
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
  • Maximum Voltage (V): 600
  • Base Material: Copper
  • Maximum Voltage (kV): 0.6
  • Finish/Coating: Tin-Plated
  • Color Code: Red
  • Barrel Type: Funnel
  • Barrel Length (In.): 0.35
  • Barrel Length (mm): 8.9
  • Flammability Rating: UL 94 V-0
  • Insulation Diameter (mm): 3.7
  • Insulation Diameter (In.): 0.15
  • Maximum Operating Temperature (°F): 167
  • Maximum Operating Temperature (°C): 75
  • Maximum Wire Insulation Diameter (mm): 3.8
  • Maximum Wire Insulation Diameter (In.): 0.15
  • Outer Diameter (In.): 0.15
  • Seam Type: Metal Insulation Grip Sleeved
  • Outer Diameter (mm): 3.8
  • Sub Brand: Pan-term
  • Overall Length (mm): 21.8
  • Overall Length (In.): 0.86
  • Overall Width (mm): 6.4
  • Overall Width (In.): 0.25
  • Tongue Length (In.): 0.51
  • Tongue Length (mm): 13
  • Tongue Thickness (In.): 0.03
  • Tongue Thickness (mm): 0.8
  • Tongue Width (In.): 0.25
  • Tongue Width (mm): 6.4
  • Packaging Type: Bottle
  • Product Type: Ring Terminal-Funnel Entry
  • For use with: CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500

Packaging Details

  • UPC: 07498369464
  • GTIN Package: 00074983694648
  • Standard Package Volume Ft3: 0.0074
  • Standard Package Weight Pounds: 0.2600
  • Std Package Height In: 1.75
  • Std Package Height MM: 44.45
  • Std Package Length In: 3.6
  • Std Package Length MM: 91.44
  • Std Package Width In: 1.8
  • Std Package Width MM: 45.72
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983694643
  • Standard Carton Volume Ft3: 0.0074
  • Standard Carton Weight Pounds: 1.3000
  • Std Carton Height In: 3.8
  • Std Carton Height MM: 96.52
  • Std Carton Length In: 9.65
  • Std Carton Length MM: 91.44
  • Std Carton Width In: 2.2
  • Std Carton Width MM: 55.88
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983694648
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 100

Categories

Overview

UPC 07498369464
GTiN 00074983694648
Finish Tin Plated
Width 7.9 mm
Size #6
Color Red
Type Loose-Piece
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 22 AWG-18 AWG
Temperature Rating 221 F
Pkg Qty 100
Family Brand Name Panduit
Carton Qty 500
TC Connection Funnel Entry
Max Operating Temperature 167 degrees F
Overall Length 0.86 in
Barrel Length 0.35 in
Color Coding Red
Enclosure Ring shape
Sub Brand Pan-Term
CA Prop65 Warning No
Voltage null
Stud Size #6
Conductor Size 22-18 AWG
Insulation Material PVC
